Stainless Steel Resin Trap Strainer

More Views

Stainless Steel Resin Trap StrainerStainless Steel Resin Trap StrainerStainless Steel Resin Trap Strainer

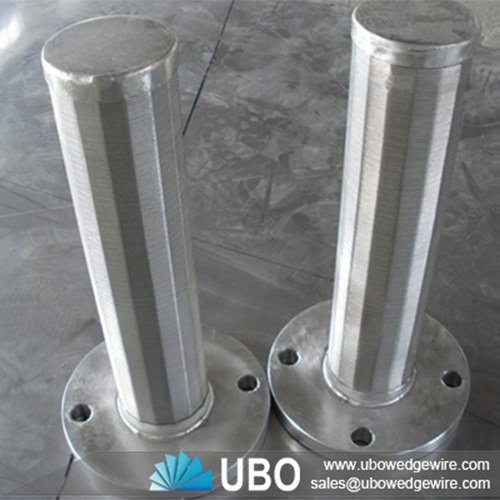

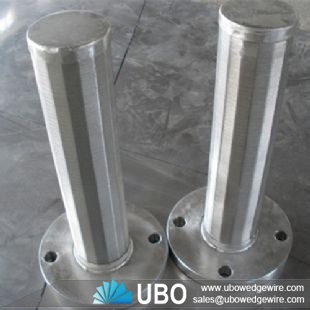

Stainless Steel Resin Trap Strainer

Category:Resin Traps
Material:stainless steel
Properties:Wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Resin Trap Strainer

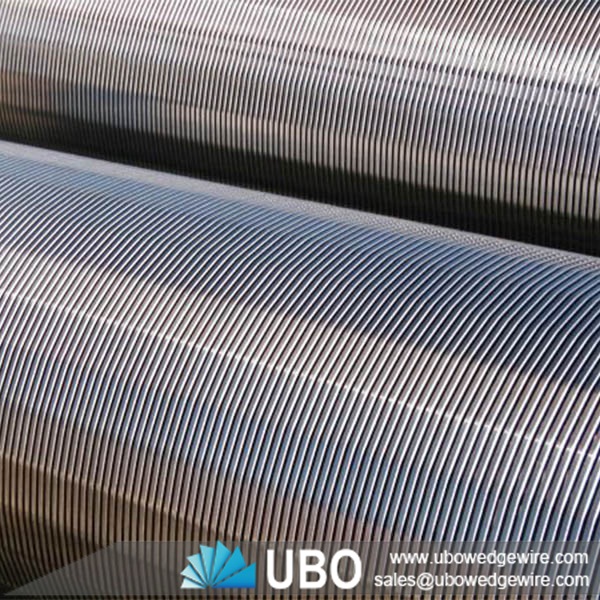

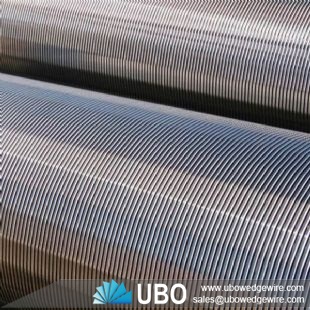

Wedge wire screens resin traps are produced by profile wire and support rod, V wire shape is the feature in wedge wire screens to create pressure difference, the filtering , the screen mesh will easily intercepted particle ( resin traps, activated carbon, and sands ) , Screen resin traps widely used in Cation Exchanger, Anion Exchanger, Mixed Bed Exchanger, Active Carbon Filter, Quartz Sand Filter.



Features for Stainless Steel Resin Trap Strainer:



-- Reduced costs, since wedge wire screens have a very long life.

-- Greater resistance to stresses of different pressure and temperature.

-- Maximum effective flow area & operating efficiency is maintained.

-- Costly downtime for cleaning plugged screens is minimize.



Application for Stainless Steel Resin Trap Strainer:



Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

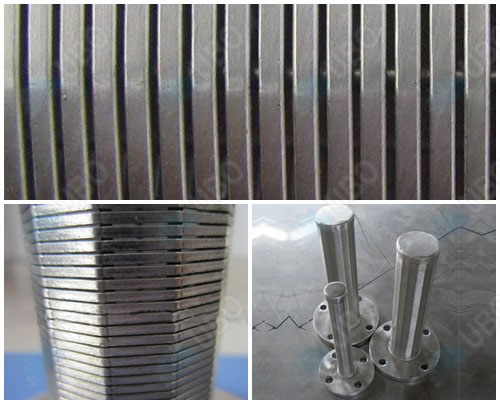

stainless steel resin trap strainer

Specifications of Stainless Steel Resin Trap Strainer:

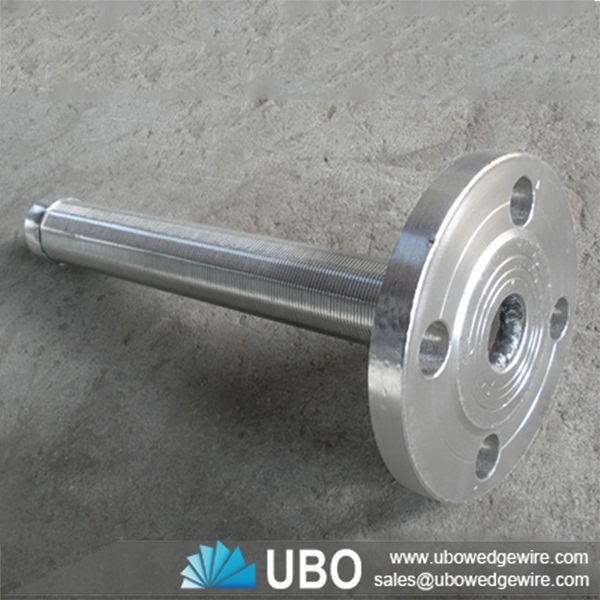

stainless steel resin trap strainer

Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

Packaging and Transportation of Stainless Steel Resin Trap Strainer:

Based on the quantity of wedge wire screen resin traps, we will found the most available delivery way for client,Gurantee client receive goods in time .


About the package material:normally we use lignifiedwood wooden case with water-proof bag,make sure that client see their goods in good quality and complete quantity !
