Resin Traps Screens

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.


Details of Resin Traps Screens

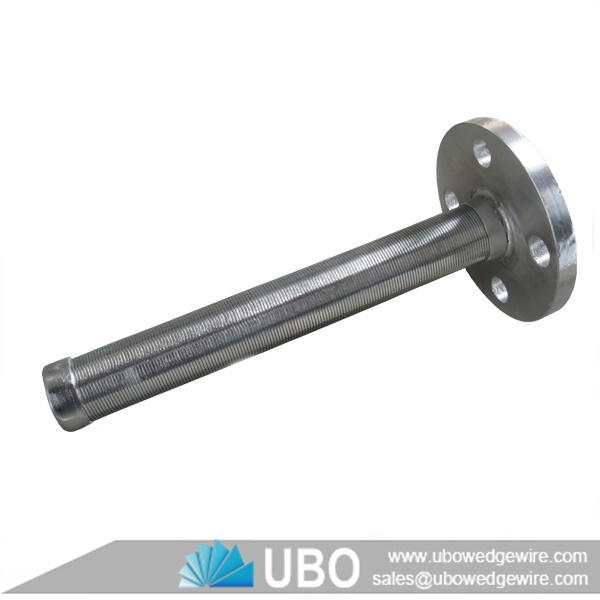

Resin Traps Screens is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Application of Resin Traps Screens

1. feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation
2. precious metals catalysts recovery for hydrogenation system
3. Catalytic outer rejection oil automatic backwash cleaning filter system
4. purification of liquid sulphur filter
5. lubricants and heat-conducting oil filter
6. paraffin raw materials and products of filter
7. the rich amine liquid backwash purification filter in the amine desulfurization system
8. high-temperature coal gas, smoke gas and oil gas purification
9. raw materials of paraffin wax and backwash purification filter
10.the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology

Features of Resin Traps Screens

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Resin Traps Screens

Specifications of Resin Traps Screens:

resin trap tube


Slots mm


Flange DN



0.05, 0.1, 0.2  0.3, 0.5, 1.0


133, 159, 219









1232, 1286

Packaging and Transportation of Resin Traps Screens:
