wedge wire screen laterals and pipe based
Category: | Profile Screen Laterals |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Profile screen laterals |
Application: | filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

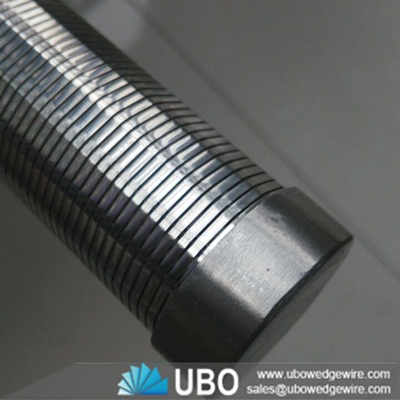

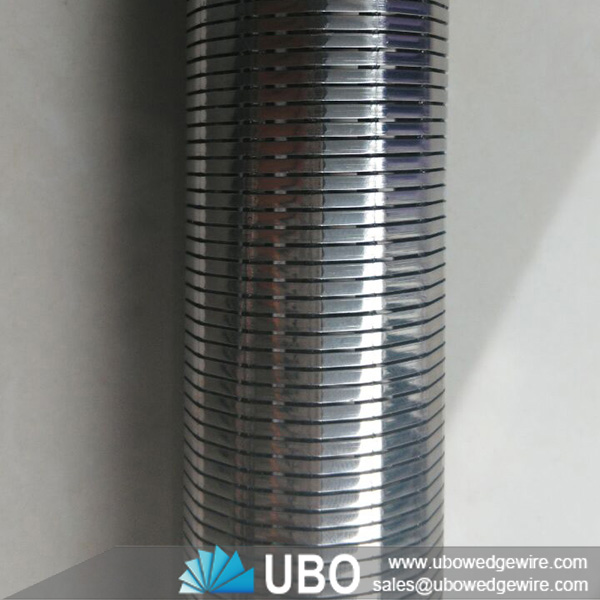

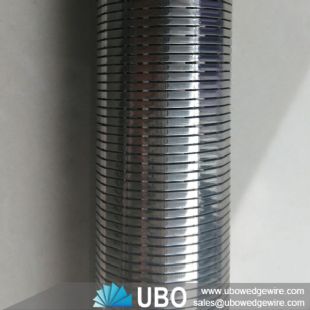

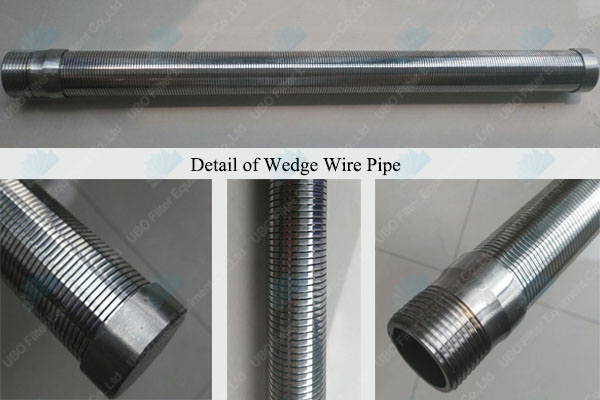

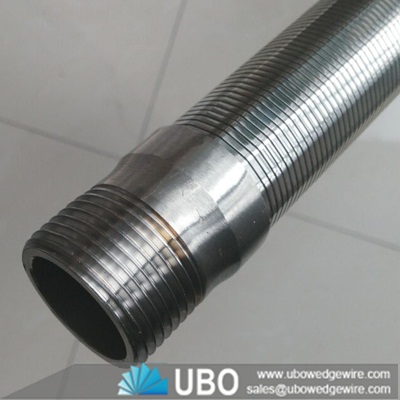

Details of wedge wire screen laterals and pipe based
SS Screen Hub and Header Lateral is made of V shaped stainless steel wire. It has flow area. water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.
Application for wedge wire screen laterals and pipe based:
Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.
Advantages for wedge wire screen laterals and pipe based:
1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction
Traditional laterals for wedge wire screen laterals and pipe based:
With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.
Specifications of wedge wire screen laterals and pipe based:
Length L1
|
Slot mm
|
AMD 4
|
AMD 6
|
AME 6
|
AMD 8
|
|
|
Ф=MM
|
|||
82
|
0.05
0.1
0.2
0.3
0.5
1
|
258
|
259
|
258
|
|
113
|
316
|
321
|
316
|
|
|
144
|
374
|
383
|
374
|
|
|
175
|
432
|
445
|
432
|
|
|
206
|
491
|
507
|
491
|
520
|
|
237
|
549
|
569
|
549
|
580
|
|
268
|
607
|
631
|
607
|
640
|
|
299
|
665
|
693
|
665
|
699
|
|
330
|
724
|
755
|
724
|
759
|
|
361
|
782
|
817
|
782
|
819
|
|
392
|
840
|
879
|
840
|
879
|
|
423
|
898
|
941
|
898
|
939
|
|
454
|
957
|
1003
|
957
|
999
|
|
485
|
1015
|
1065
|
1015
|
1059
|
|
516
|
1073
|
1127
|
1073
|
1119
|
|
547
|
1131
|
1189
|
1131
|
1179
|
|
578
|
1189
|
1251
|
1189
|
1239
|
|
609
|
1247
|
1313
|
1247
|
1299
|
|
640
|
|
|
|
1359
|
|
671
|
|
|
|
1419
|
|
702
|
|
|
|
1479
|
|
733
|
|
|
|
1539
|
