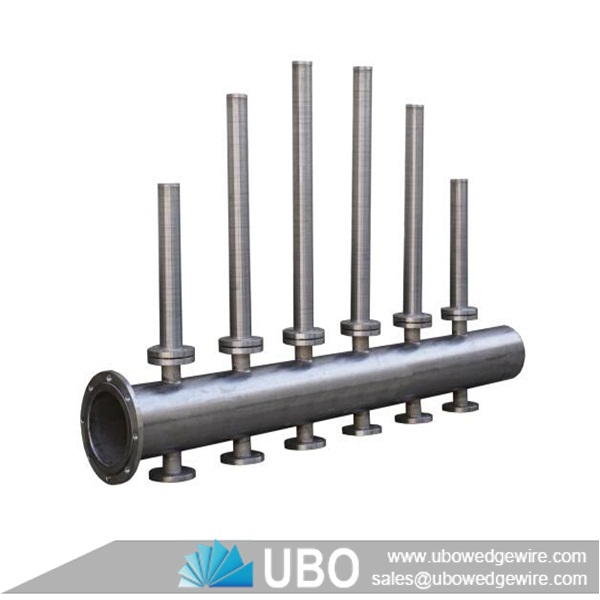

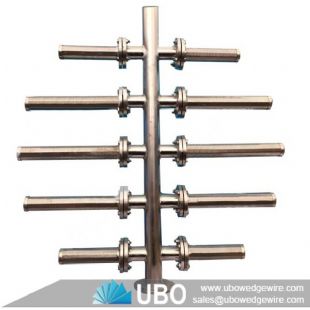

wedge wire screen header lateral
Category: | Profile Screen Laterals |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Profile screen laterals |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire screen header lateral
Our header lateral is a wedge wire screen structure designed to provide maximum filtration area, allowing for exceptional flow rates while effectively capturing particles down to the finest micron levels.

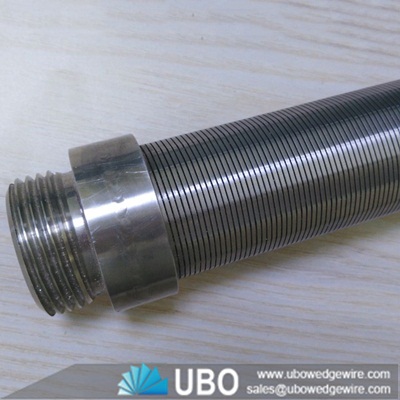

The wedge wire screen's continuous slot design provides maximum open area, ensuring efficient flow rates and minimal pressure drop. The lateral design allows for easy installation and maintenance, reducing downtime and increasing overall productivity.
Key Features and Benefits of Wedge Wire Header Lateral
1. High-precision filtration
Our wedge wire screen header lateral achieves precise filtration down to 20 microns, ensuring that even the smallest particles are captured.
2. Maximum flow rates
The continuous slot design and lateral configuration work together to provide maximum flow rates, reducing the risk of clogging and increasing overall efficiency.
3. Durable and long-lasting
Constructed from high-quality materials, our header lateral is built to withstand the demands of heavy-duty industrial use.
4. Easy maintenance
The lateral design allows for quick and easy cleaning and replacement of screens, minimizing downtime and reducing maintenance costs.
5. Versatile Applications
It is adaptable to various filtration needs, from liquid-solid separation to media retention and backwashing. Used in various industries including water treatment, chemical processing, food and beverage, petrochemicals, and more.
Applications of Wedge Wire Screen Header Lateral
Water Treatment: Effective in both municipal and industrial water treatment plants for processes like sand filtration, ion exchange, and activated carbon adsorption.
Chemical Processing: Ideal for use in reactors, distillation columns, and other chemical processing equipment, ensuring efficient separation and purification.
Food and Beverage: Ensures high standards of hygiene and filtration in the production of beverages, dairy products, and other food items.
Petrochemical: Reliable performance in refineries and petrochemical plants, handling various separation and filtration tasks with ease.
Understanding that each application has unique requirements, we offer customizable designs tailored to your specific needs. Choose from various sizes, slot openings, and configurations to ensure the perfect fit for your system.
Specifications of wedge wire screen header lateral:
Type
|
Slots
|
ФA
|
ФB
|
L1
|
L2
|
L3
|
Pipe no
|
Flange1 DN
|
Flange2 DN
|
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
|
AME
|
0.05
0.1
0.2
0.3
0.5
1
|
32
40
57
76
89
|
76
89
108
133
159
219
|
1100
1280
1500
1700
1800
2000
2500
3200
|
420
480
600
680
720
|
1100
1280
1500
1700
1800
|
6
8
10
12
|
25
32
40
50
65
80
|
50
65
80
100
125
150
|
