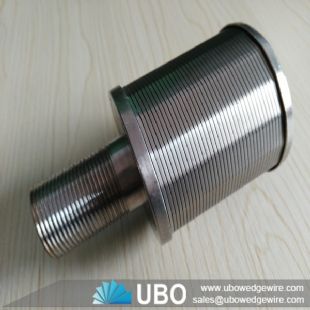

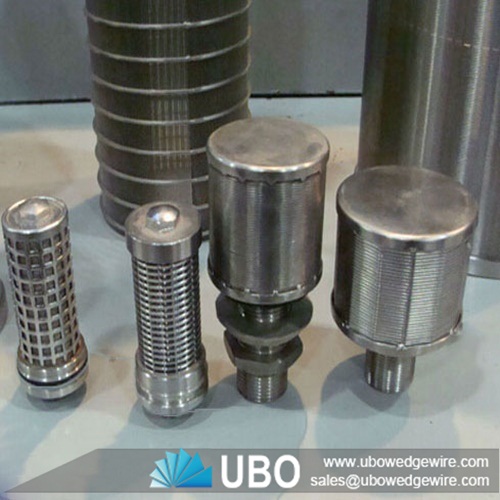

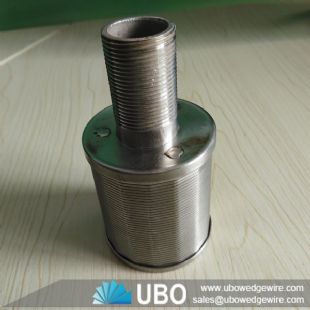

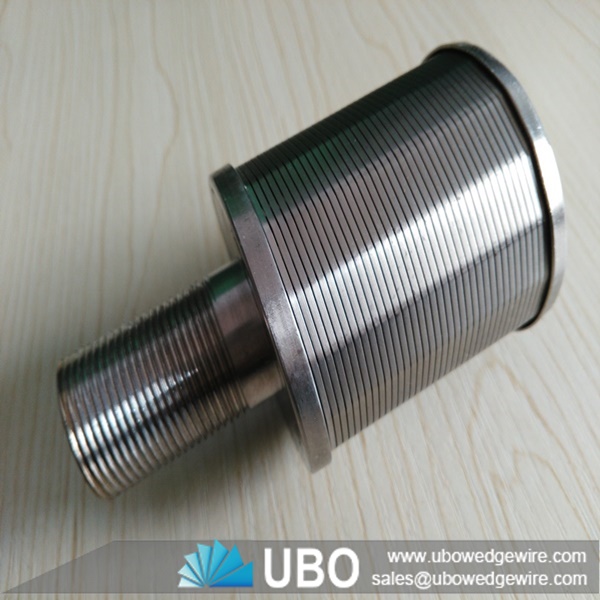

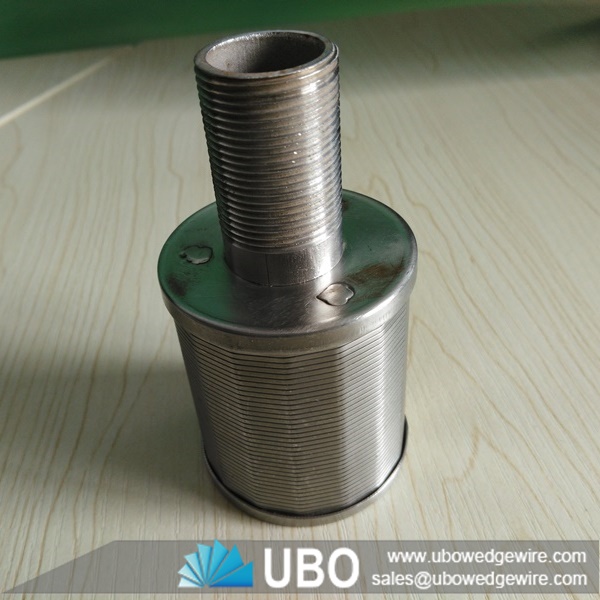

welded screen water nozzle

More Views

welded screen water nozzlewelded screen water nozzlewelded screen water nozzle

welded screen water nozzle

Category:Filter Nozzle
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of welded screen water nozzle

UBO water nozzles are used in liquid/solid or gas/solid separation (sand, catalyst, resins, zeolite etc). The design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow.

Our nozzles are an excellent technical and economical solution in bringing together a fully welded, strong and highly corrosion resistant structure and with a non-plugging surface.

Feature of welded screen water nozzle

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
3.After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)

Advantages of welded screen water nozzle

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

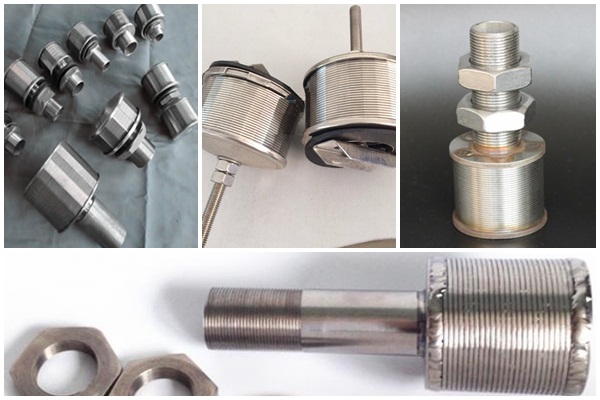

welded screen water nozzle

Specifications of welded screen water nozzle:

Material: Stainless steel 304, 304L, 316, 316L, 321or according to you.
Wire diameter: 1.5x2mm, 2x3mm
Screen length: 0.5, 0.8, 1, 1.2, meters or according to you.
Diameter: 50, 80, 90, 110, 120 mm
Slot size: 1mm also achieved upon request.
Product structure: Wedge wire screen, pipe, cap.
Surface treatment: Polishing, chroming

welded screen water nozzle

PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Packaging and Transportation of welded screen water nozzle:

packing

transport
