wedge wire screen nozzles
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire screen nozzles

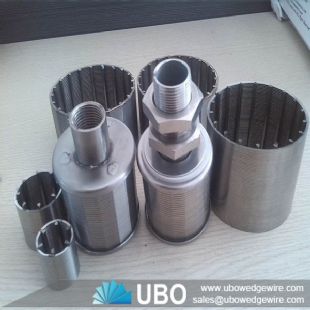

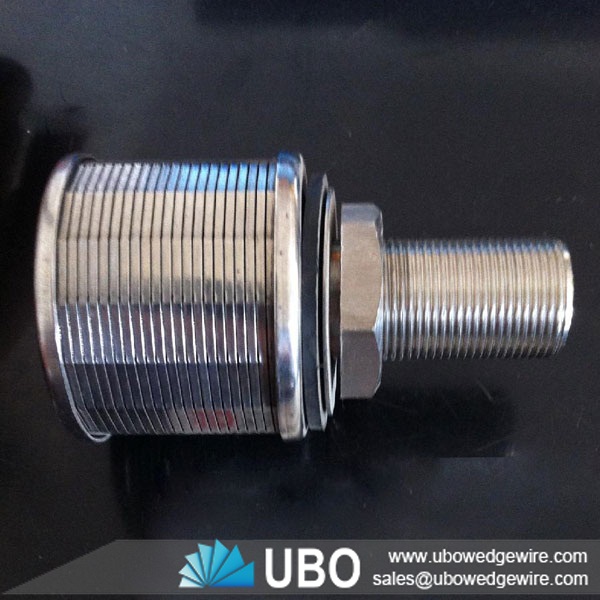

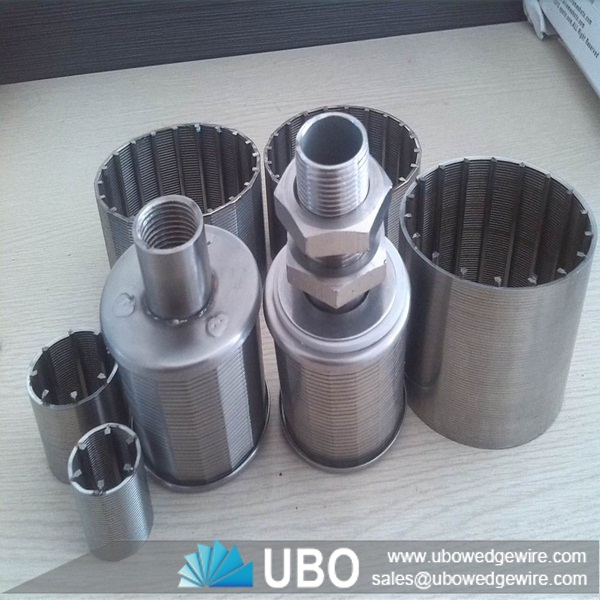

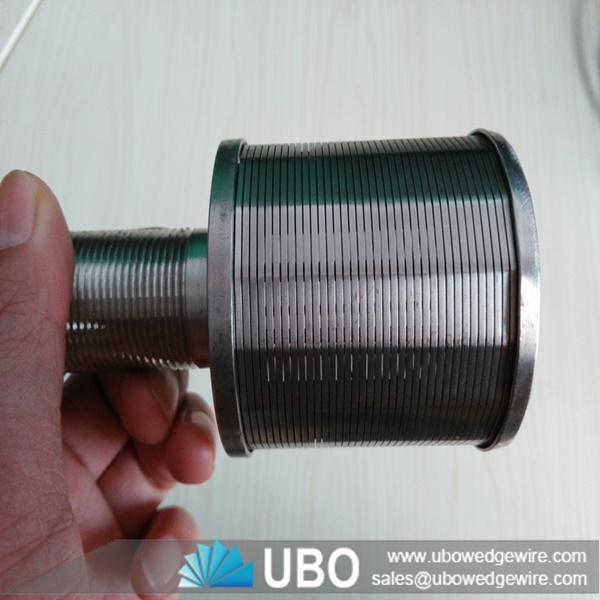

The wedge wire screen nozzles. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.
Application of wedge wire screen nozzles
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Advantages of wedge wire screen nozzles
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Specifications of wedge wire screen nozzles:
ype |
Slot |
Dimension |
Flow area |
||||
D |
H |
L |
M |
L1 |
|||
A |
0.2mm |
Φ45 |
35 |
150 |
M24 |
Decided by the perforated plate thickness |
330m3 |
A1 |
0.2mm |
Φ45 |
40 |
160 |
M24 |
400m3 |
|
B |
0.2mm |
Φ53 |
45 |
160 |
M24 |
500m3 |
|
B1 |
0.2mm |
Φ53 |
45 |
160 |
M32 |
600m3 |
|
B2 |
0.2mm |
Φ53 |
50 |
170 |
M32 |
650m3 |
|
C |
0.2mm |
Φ57 |
45 |
160 |
M32 |
630m3 |
|
C1 |
0.2mm |
Φ57 |
50 |
170 |
M32 |
780m3 |
|
C2 |
0.2mm |
Φ57 |
55 |
180 |
M32 |
850m3 |
