stainless steel wedge v wire screen nozzle filter

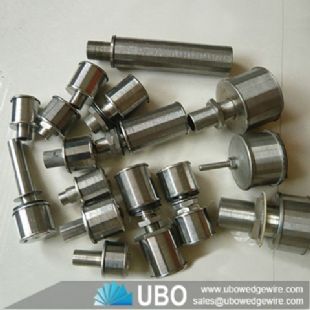

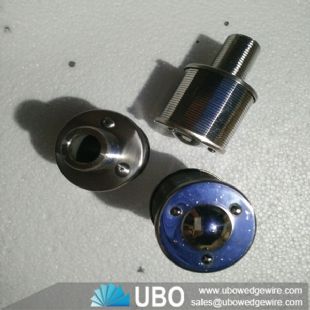

More Views

stainless steel wedge v wire screen nozzle filterstainless steel wedge v wire screen nozzle filterstainless steel wedge v wire screen nozzle filter

stainless steel wedge v wire screen nozzle filter

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge v wire screen nozzle filter

Stainless steel wedge v wire screen nozzle filters are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.

Stainless steel wedge v wire screen nozzle filters is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life. If there is any need please contact us

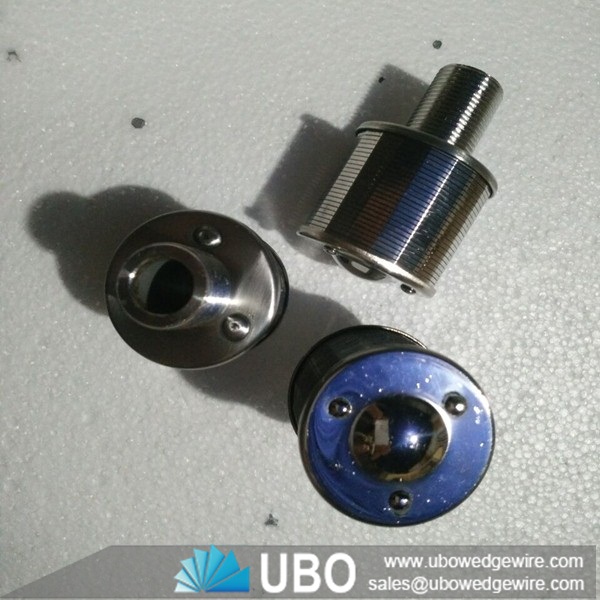

stainless steel wedge v wire screen nozzle filter

Advantages of stainless steel wedge v wire screen nozzle filter

Type 316L stainless steel construction.
Continuous slot design provides increased open area for better collection.
Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

Application of stainless steel wedge v wire screen nozzle filter

Wedge wire screen nozzle has many important roles to play and is useful for filtration in various industries. UBO Wedge Wire filter nozzles are primarily used as add-ons to filtering equipment in the water petrol resin industry. That said, nozzles are also used in various industries including: water treatment, sea water conversion to fresh water plants and food chemistry filtration. This new type of filtration component is made from stainless steel material ensuring durability, and filtration precision starts from 20 microns. Nozzles are welded to the profile(s) on several connection areas to ensure stability.

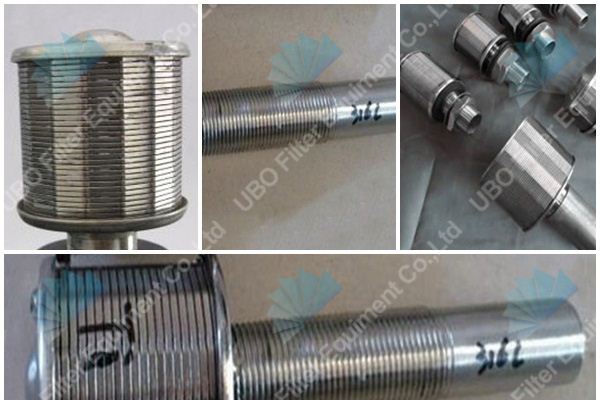

stainless steel wedge v wire screen nozzle filter

Specifications of stainless steel wedge v wire screen nozzle filter:

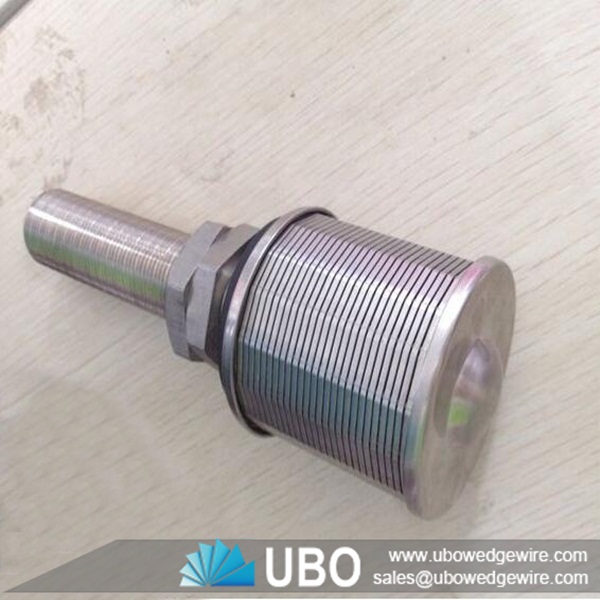

stainless steel wedge v wire screen nozzle filter

Material:stainless steel
OD is 76mm as your request
The Filtering slot is 700micron as your request
Thread 5/16" BSW thread
Height is 50 mm
One end is opening
Everage filtering slot, tolerance + - 0.02mm
Strong welding with nice welding
Perfect roundness with smooth surface

 Data of Wedge wire screen part.


No.

(mm)TYPE

OD
(mm)

 ID
(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

Packaging and Transportation of stainless steel wedge v wire screen nozzle filter:
