stainless steel wedge screen filter nozzles
| Category: | Filter Nozzle |
|---|---|
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

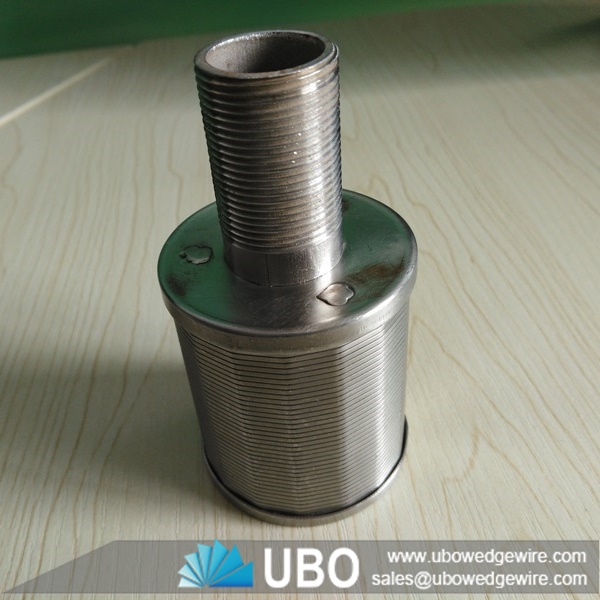

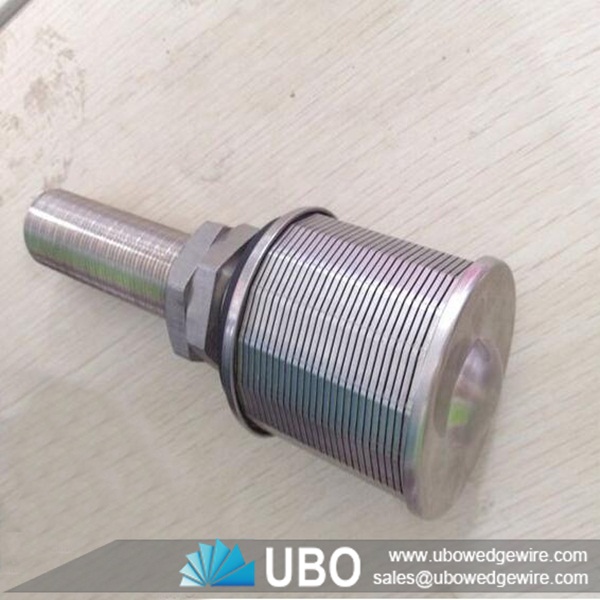

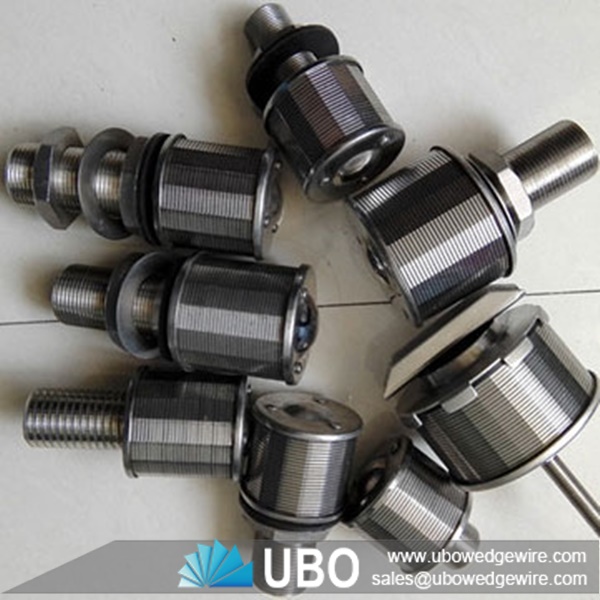

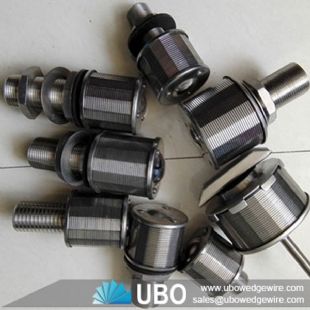

Details of stainless steel wedge screen filter nozzles
The stainless steel wedge screen filter nozzles is a kind of water filter nozzle. It is made of wedge wire screen. The filtering slot is V shape. The special structure makes the filter nozzle a high filtering efficiancy.
Advantage of stainless steel wedge screen filter nozzles
High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.
Use of stainless steel wedge screen filter nozzles
The wedge wire structure nozzle strainers / sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Specifications of stainless steel wedge screen filter nozzles:
|
No. |
Slot |
Dimension |
Flow area/mm2 (Slot: 0.2mm) |
||||
|
D |
H |
L |
M |
L1 |
|||
|
1 |
0.2-0.5 |
45 |
30 |
180 |
25 |
According to custom's request |
330 |
|
2 |
45 |
40 |
190 |
25 |
450 |
||
|
3 |
53 |
40 |
190 |
30 |
500 |
||
|
4 |
53 |
50 |
200 |
30 |
630 |
||
|
5 |
53 |
40 |
235 |
32 |
500 |
||
|
6 |
57 |
40 |
190 |
32 |
605 |
||
|
7 |
57 |
50 |
200 |
32 |
750 |
||
Packaging and Transportation of stainless steel wedge screen filter nozzles:
