Quality Wedge Wire Screen Manufacturer in China

stainless steel liquid filter nozzle

More Views

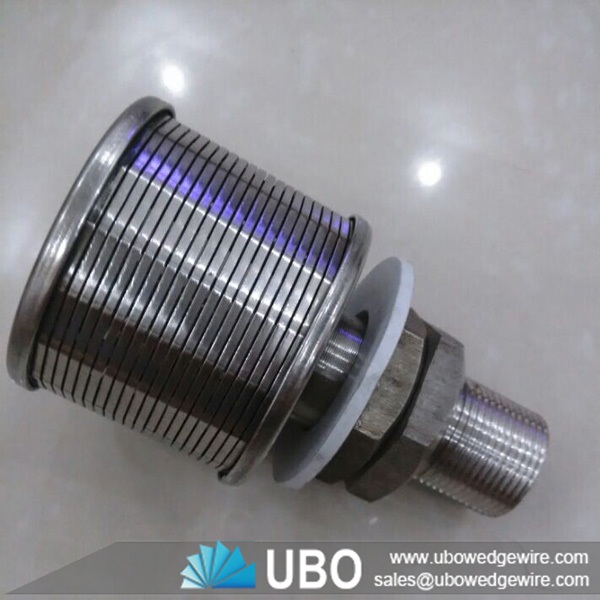

stainless steel liquid filter nozzle

Category:Filter Nozzle
Material:stainless steel
Properties:wedge wie filter
Application:water filter,filtration,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel liquid filter nozzle

1. Type 316L stainless steel construction.

2. Continuous slot design provide large circulation area

3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5. Wedge wire screen is highly resistant to plugging.

6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.




Uses:



The wedge wire filter nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Specifications of stainless steel liquid filter nozzle:

Packaging and Transportation of stainless steel liquid filter nozzle:

No.
Slot
Dimension
Flow area/mm2
(Slot: 0.2mm)
D
H
L
M
L1
1
0.2-0.5
45
30
180
25
According to customs request
330
2
45
40
190
25
450
3
53
40
190
30
500
4
53
50
200
30
630
5
53
40
235
32
500
6
57
40
190
32
605
7
57
50
200
32
750
