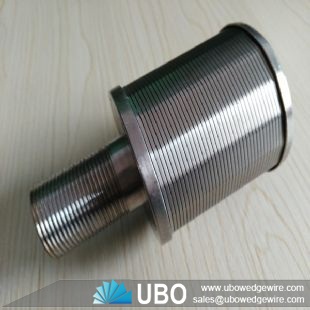

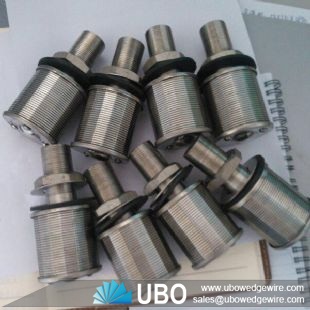

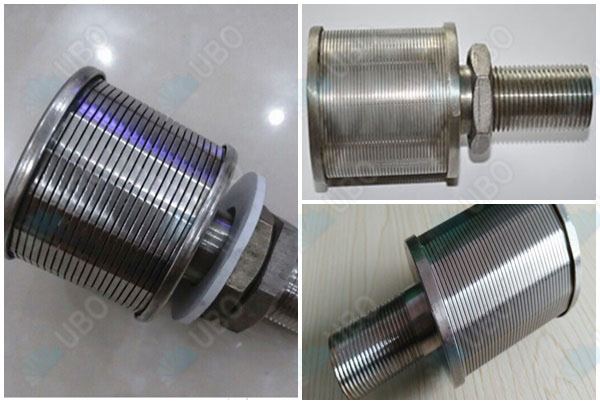

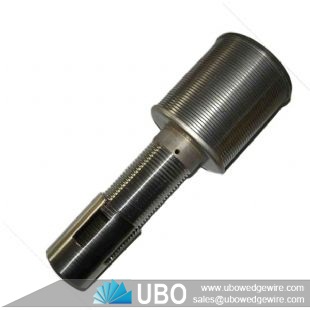

The filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.
Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.

Advantages of filter nozzles for ion exchange

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
6. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Uses of filter nozzles for ion exchange

The stainless steel wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.

Outer diameter: min 30mm.

Wedge wire screen length: 30-100mm

Screen slot :0.02-3mm

Screw thread: Male/Female

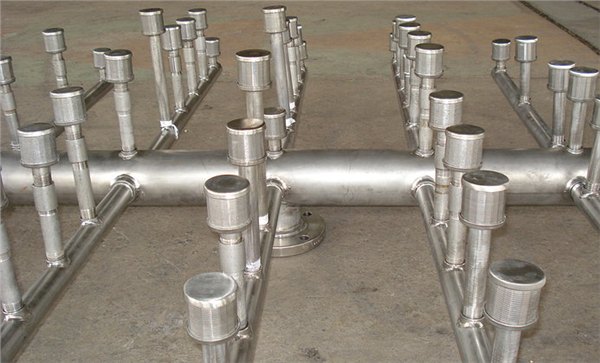

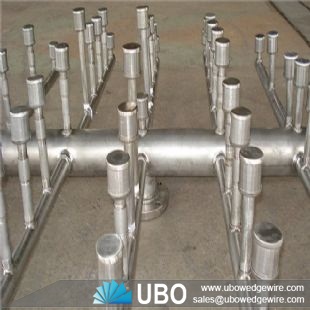

Used for bottom strainer, 20 pcs of small filter nozzles attached to plate steel.

Application water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.

Surface treatment: polishing ,chroming

Product structure : wedge wire screen ,pipe , cap.

Packaging Details: waterproof film in wooden case into the container.
as per customer's requirement
Delivery Detail: Based on the quantity to supply exact delivery time
