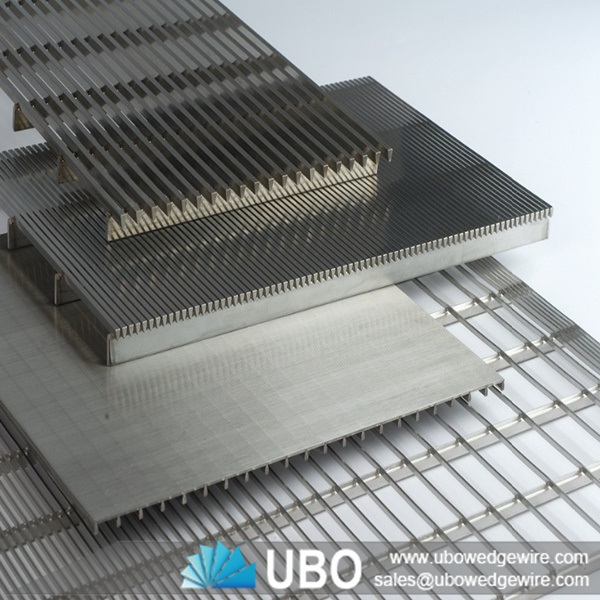

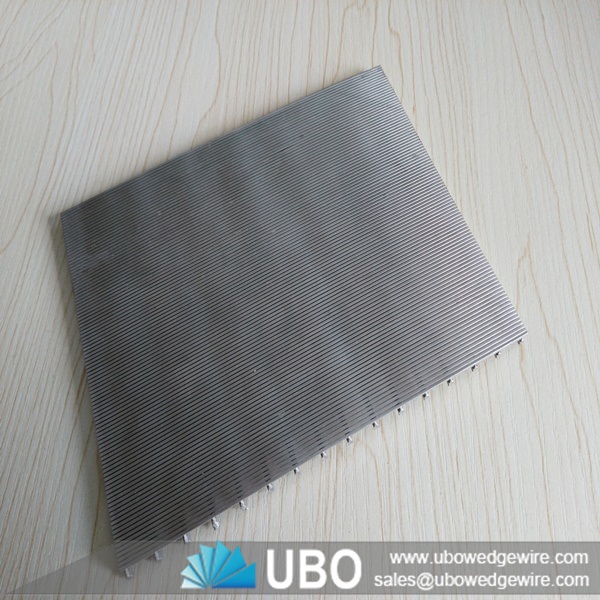

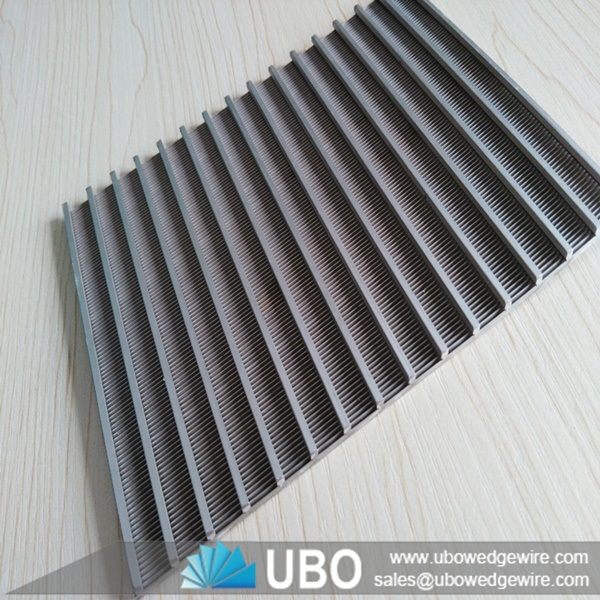

flat wedge wire panel

More Views

flat wedge wire panelflat wedge wire panelflat wedge wire panel

flat wedge wire panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:filteration/industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of flat wedge wire panel

Flat wedge wire panel are manufactured to the highest standard using quality stainless steel Wedge Wire. UBO deliver high open area screens built for purpose. The combination of quality workmanship, superior materials, accurate slots and high open areas ensures that our panels meet the needs of the most demanding applications.

Feature of flat wedge wire panel

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Application of flat wedge wire panel

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,
many other liquids, solids separation applications.

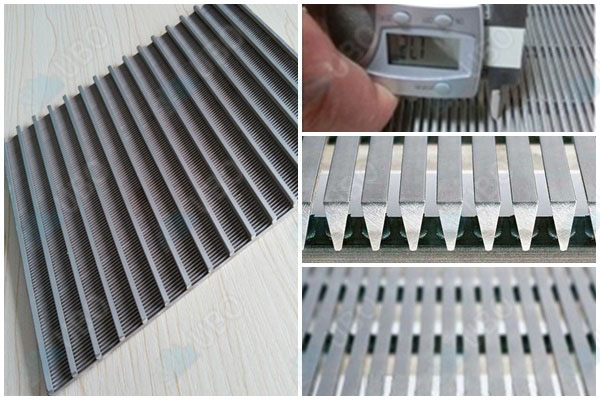

        flat wedge wire panel

Specifications of flat wedge wire panel:

Material: low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.

Slot (mm): 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.

Profile Wire: #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.

Support Rod:1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.

2.Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.

Frame: Iron Frame, Steel Frame, or Nothing.

flat wedge wire panel

Packaging and Transportation of flat wedge wire panel:

Packaging Details: waterproof film in wooden case into the container.
as per customer's requirement
Delivery Detail: Based on the quantity to supply exact delivery time
