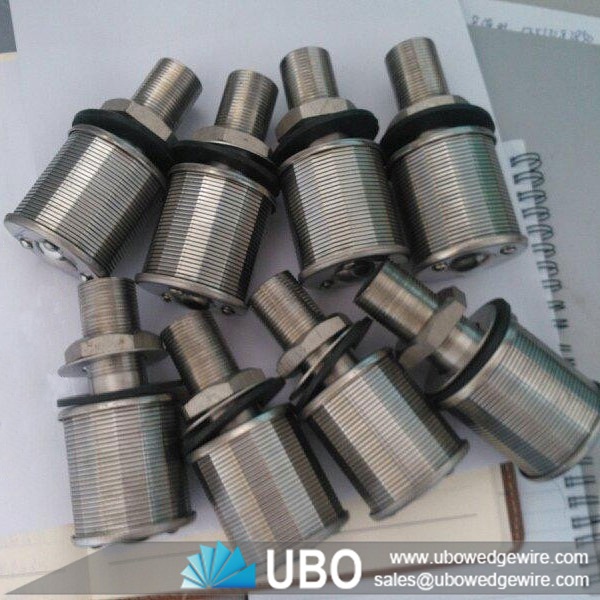

water treatment filter nozzle screen

Category:Filter Nozzle
Material:SS 304, 316, 316L, 321, 904L
Properties:wedge wire screen
Application:water treatment, water softhening, conversion of sea water into fresh water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of water treatment filter nozzle screen

water treatment filter nozzle screen with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.


Feature of water treatment filter nozzle screen

Composed of surface profile
High open area, non clogging filter surface
Spirally wrapped around the axial support profile
Accurate, narrow slot openings
Triangular wedge wire design creates orifice effect
Cake discharge by back washing

   water treatment filter nozzle screen

Specifications of water treatment filter nozzle screen:

filter nozzle

No.
Slot
Dimension
Flow area/mm2
(Slot:0.2mm)
D
H
L
M
L1
1
0.2-0.5
45
30
180
25
According to custom’s request
330
2
45
40
190
25
450
3
53
40
190
30
500
4
53
50
200
30
630
5
53
40
235
32
500
6
57
40
190
32
605
7
57
50
200
32
750

Packaging and Transportation of water treatment filter nozzle screen:

packing
