high quality water treatment filter nozzle

More Views

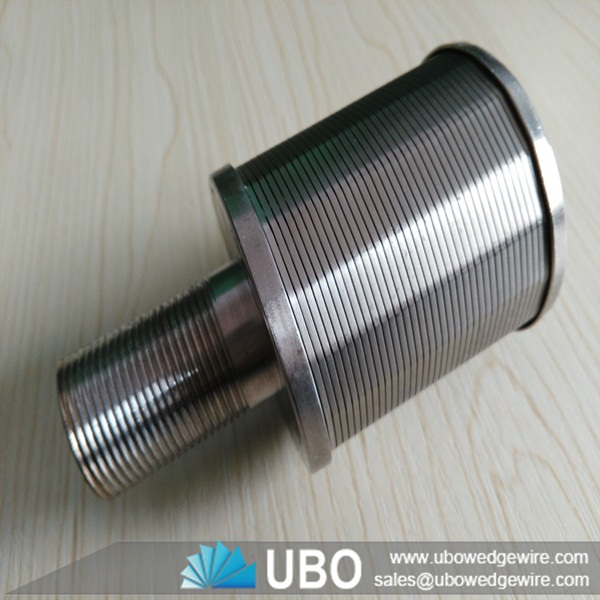

high quality water treatment filter nozzle

Category:Filter Nozzle
Material:stainless steel
Properties:wedge wire screen
Application:water softening treatment equipment, replace Polypropylene ( PP ) filter

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

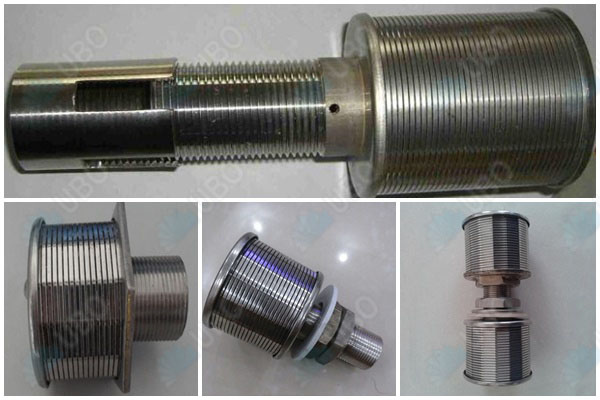

Details of high quality water treatment filter nozzle

UBO is a professional production of v-shaped wire welded products factory, the main screen (filter), water CAP, sieve plate, complete with flange, standard parts, pipes and so on, has the characteristics of varieties, alignment specifications, excellent service.

Advantages of high quality water treatment filter nozzle

1.Excellent roundness
2.Very good slot width precision
3.High mechanical load capacity
4.No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
5.Automated welding process for high-precision manufacturing
6.Perfectly adjusted screen basket profiles
7.Available for all screens
8.Surface finishing as required

Application of high quality water treatment filter nozzle

Used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

         filter nozzle

Specifications of high quality water treatment filter nozzle:

filter nozzle

   Type

D

L

L 1

L 2

slot

d

flow area mm 2

LH-SD-1

45

110-170

34

34

0.2-0.25

M24

390-493

LH-SD-2

45

110-170

44

44

0.2-0.25

M24

551-690

LH-SD-3

53

120-180

34

34

0.2-0.25

M27

453-597

LH-SD-4

53

120-180

44

44

0.2-0.25

M30

680-710

LH-SD-5

57

120-180

50

50

0.2-0.25

M32

800-1000

LH-SD-6

60

120-180

50

50

0.2-0.25

G 1”

950-1188

Note :

1. single cap equipped with a rubber gasket, the same material equipped with a stainless steel gasket and two thin nuts.

2. to provide users of perforated plate thickness.

3. special specifications requested as your request.

Packaging and Transportation of high quality water treatment filter nozzle:

Based on the quantity of wedge wire screen resin traps, we will found the most available delivery way for client , Guarantee client receive goods in time .
About the package material : normally we use lignified wood wooden case with water-proof bag, make sure that client see their goods in good quality and complete quantity !

filter nozzle
