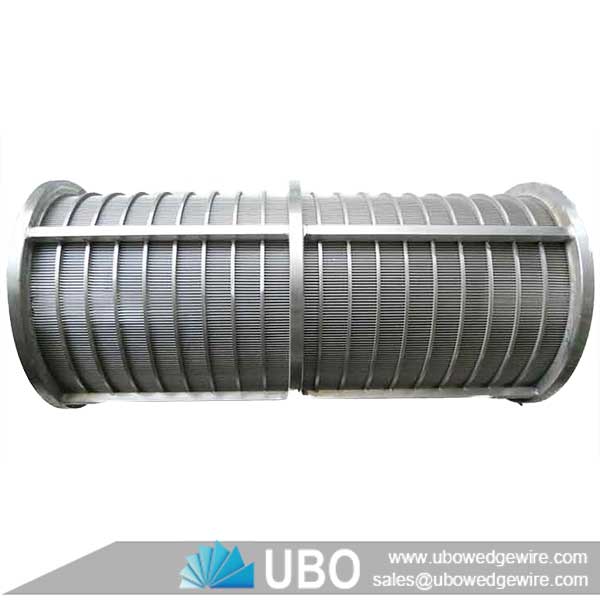

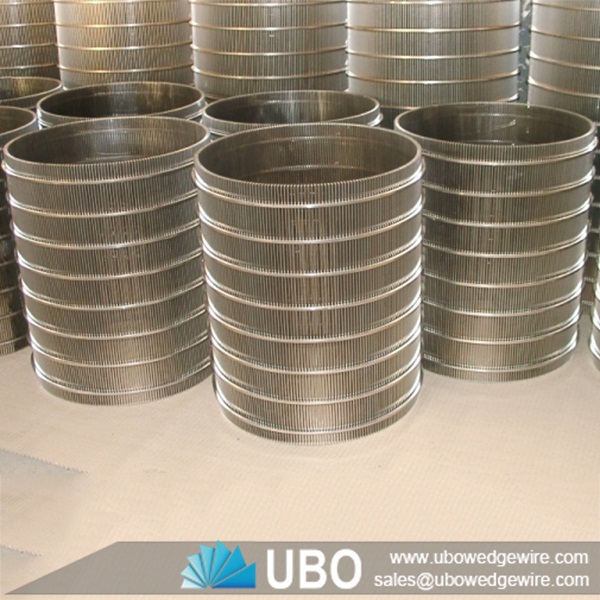

stainless steel welded wedge wire screen cylinders

More Views

stainless steel welded wedge wire screen cylindersstainless steel welded wedge wire screen cylindersstainless steel welded wedge wire screen cylinders

stainless steel welded wedge wire screen cylinders

Category:Wedge Wire Pipe&Cylinder
Material:Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Properties:screen cylinders
Application:crossing flow sieves, vibrating screen decking, mineral processing, surface water intake screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel welded wedge wire screen cylinders

Wedge wire screen cylinders can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder.
These stainless steel wedge wire screen cylinders can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.

stainless steel welded wedge wire screen cylindersstainless steel welded wedge wire screen cylinders

Application for stainless steel welded wedge wire screen cylinders :

The stainless steel wedge wire screen cylinders can be used in crossing flow sieves, vibrating screen decking, mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, architectural decorative food processing.

Features for stainless steel welded wedge wire screen cylinders :

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone. Wedge wire which avoids clogging and ensures uninterrupted flow. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Characteristics for stainless steel welded wedge wire screen cylinders:

1).Cylinder structure, continuous gaps provide larger aperture ratio.
2).Precision gaps dimensions, long service life.
3).Easy to leakage,difficult to clog,wear-resistance.

Specifications of stainless steel welded wedge wire screen cylinders:

stainless steel welded wedge wire screen cylinders

stainless steel welded wedge wire screen cylinders
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

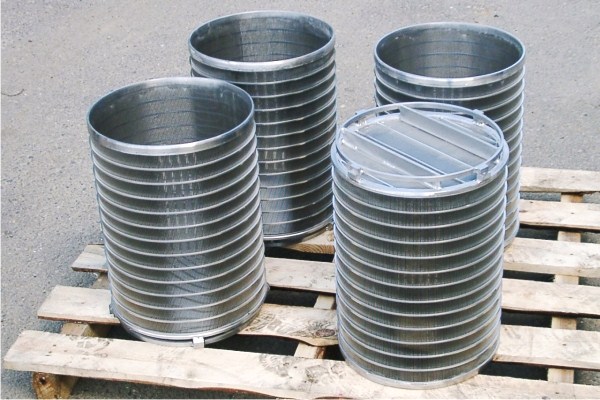

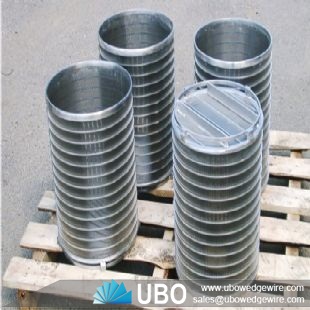

Packaging and Transportation of stainless steel welded wedge wire screen cylinders:

stainless steel welded wedge wire screen cylinders

stainless steel welded wedge wire screen cylinders
