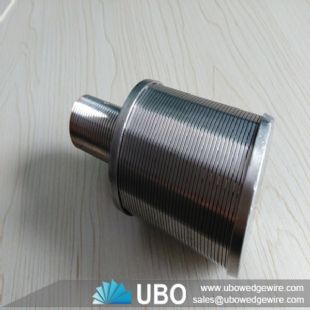

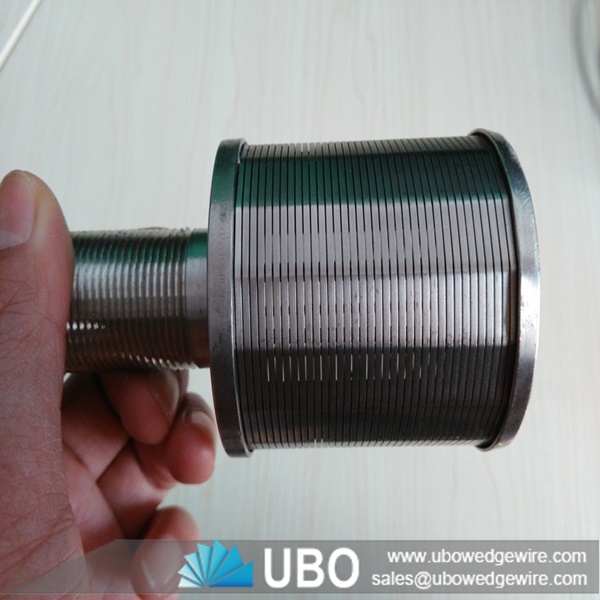

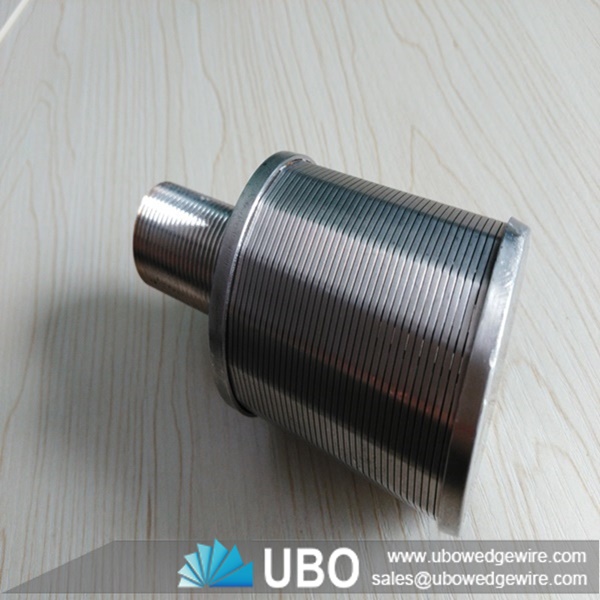

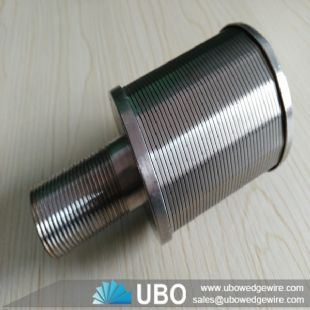

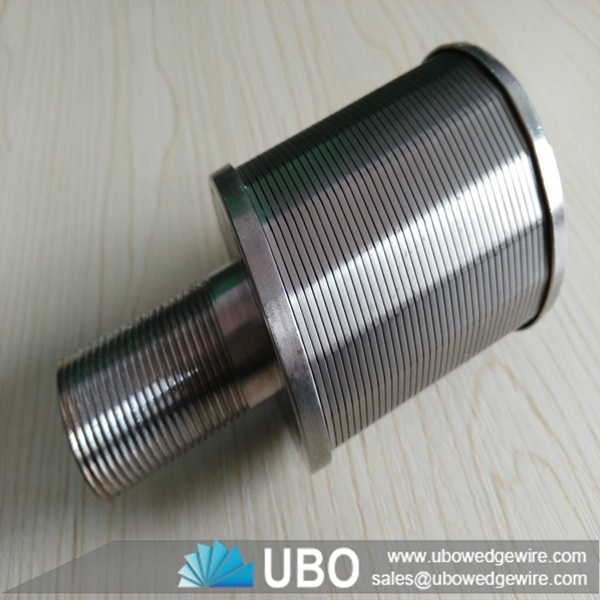

V shap water filter nozzle
Category: | Filter Nozzle |
---|---|
Material: | stsainless steel |
Properties: | wedge wire screen |
Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of V shap water filter nozzle
V shap water filter nozzle as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.
Advantage of V shap water filter nozzle
High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time.
Easy to clean and back wash;
Uniform gap.
Use of V shap water filter nozzle
The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
Specifications of V shap water filter nozzle:
D | L | L1 | Slot Size | d | Flow Area mm2 |
45 | 98 | 34 | 0.2-0.25 | M20 | 380-493 |
45 | 100 | 44 | 0.2-0.25 | M24 | 551-690 |
53 | 100 | 34 | 0.2-0.25 | M24 | 453-597 |
53 | 100 | 44 | 0.2-0.25 | M27 | 680-710 |
53 | 105 | 50 | 0.2-0.25 | M32 | 800-920 |
57 | 115 | 34 | 0.2-0.25 | M30 | 560-670 |
57 | 120 | 55 | 0.2-0.25 | M32 | 780-905 |
60 | 120 | 55 | 0.2-0.25 | G1" | 905-1100 |
82 | 130 | 50 | 0.2-0.25 | M33 | 1170-1280 |
108 | 200 | 100 | 0.2-0.25 | G2" | 3050-4600 |
