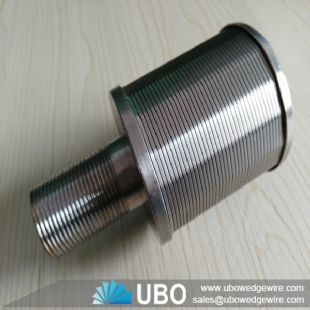

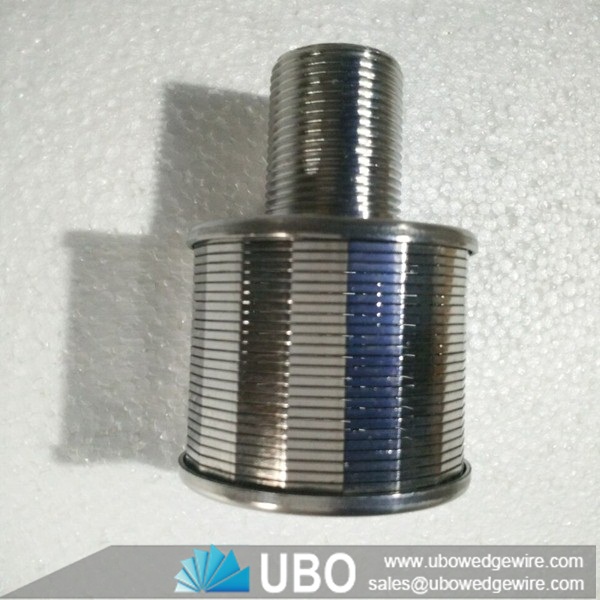

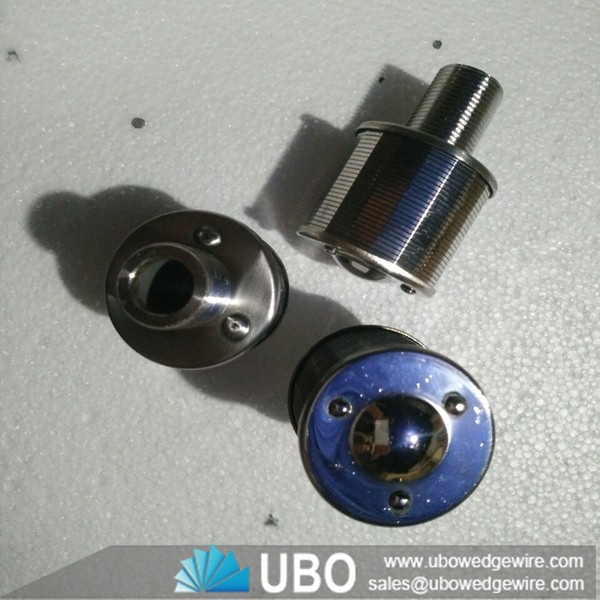

SS wedge wire sand control filter nozzles

More Views

SS wedge wire sand control filter nozzlesSS wedge wire sand control filter nozzlesSS wedge wire sand control filter nozzles

SS wedge wire sand control filter nozzles

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire sand control filter nozzles

The SS wedge wire sand control filter nozzle is a kind of water filter nozzle. It is made of wedge wire screen. The filtering slot is V shape. The special structure makes the filter nozzle a high filtering efficiancy.

V shap wire around the plate wedge wire sand filter nozzle for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.

SS wedge wire sand control filter nozzles

Use of SS wedge wire sand control filter nozzles


The wedge wire structure nozzle strainers / sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of SS wedge wire sand control filter nozzles

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

SS wedge wire sand control filter nozzles

Specifications of SS wedge wire sand control filter nozzles:

SS wedge wire sand control filter nozzles

No.

Slot

Dimension

Flow area/mm2 (Slot: 0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to custom's request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750

Packaging and Transportation of SS wedge wire sand control filter nozzles:

transportation
