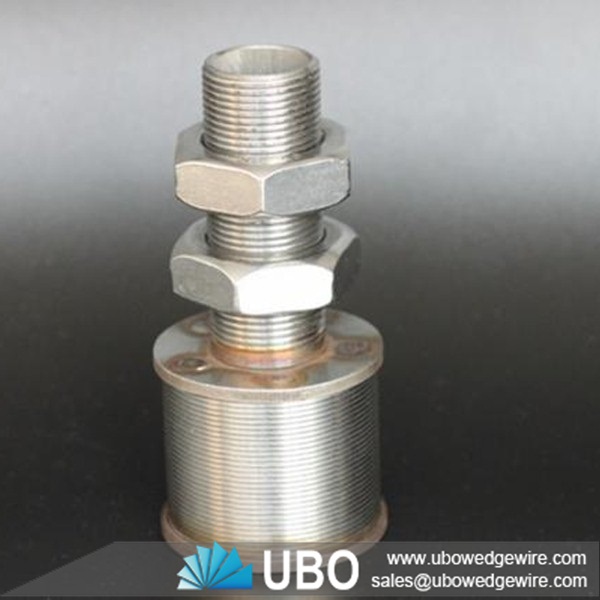

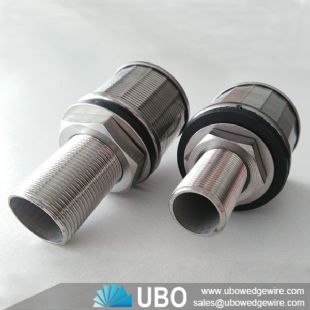

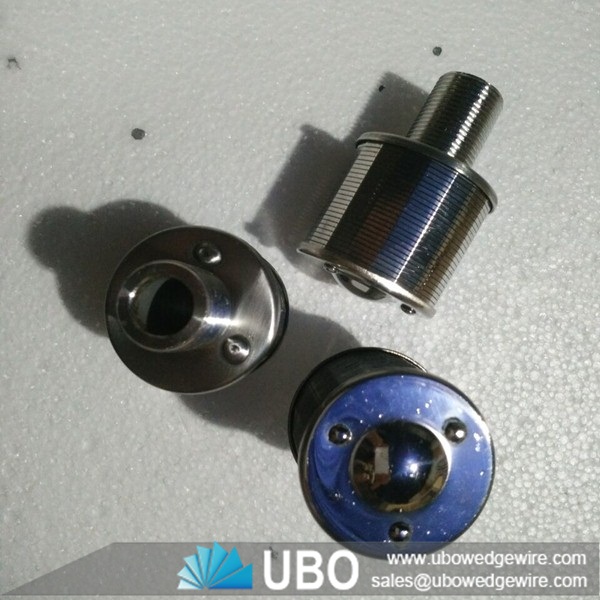

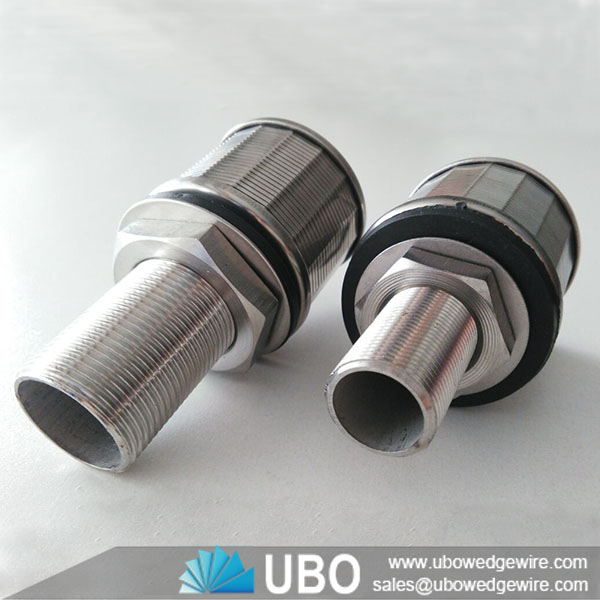

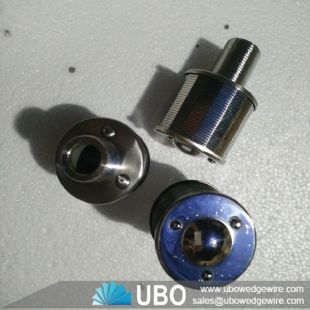

Stainless steel wedge wire screen nozzle/sand filter nozzle with thread
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel wedge wire screen nozzle/sand filter nozzle with thread
Stainless steel wedge wire screen nozzle/sand filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.
V-shaped wire around the plate water cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
Advantages of Stainless steel wedge wire screen nozzle/sand filter nozzle with thread
Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required
Application of Stainless steel wedge wire screen nozzle/sand filter nozzle with thread
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Specifications of Stainless steel wedge wire screen nozzle/sand filter nozzle with thread:
No. |
Slot |
Dimension |
Flow area/mm2
(Slot:0.2mm) |
||||
D |
H |
L |
M |
L1 |
|||
1 |
0.2-0.5 |
45 |
30 |
180 |
25 |
According to custom’s request |
330 |
2 |
45 |
40 |
190 |
25 |
450 |
||
3 |
53 |
40 |
190 |
30 |
500 |
||
4 |
53 |
50 |
200 |
30 |
630 |
||
5 |
53 |
40 |
235 |
32 |
500 |
||
6 |
57 |
40 |
190 |
32 |
605 |
||
7 |
57 |
50 |
200 |
32 |
750 |
