Single water flow rate screen nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,316,316L |
Properties: | wedge wire screen |
Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Single water flow rate screen nozzle

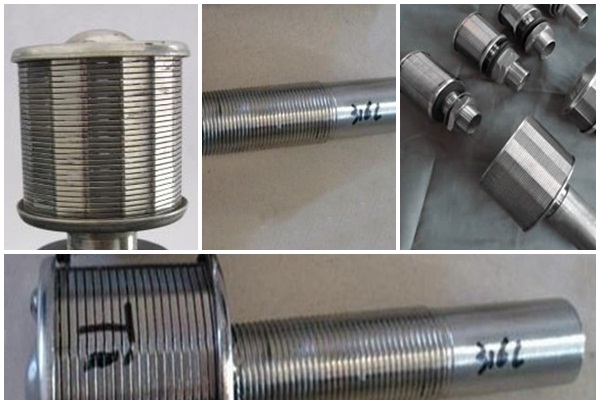

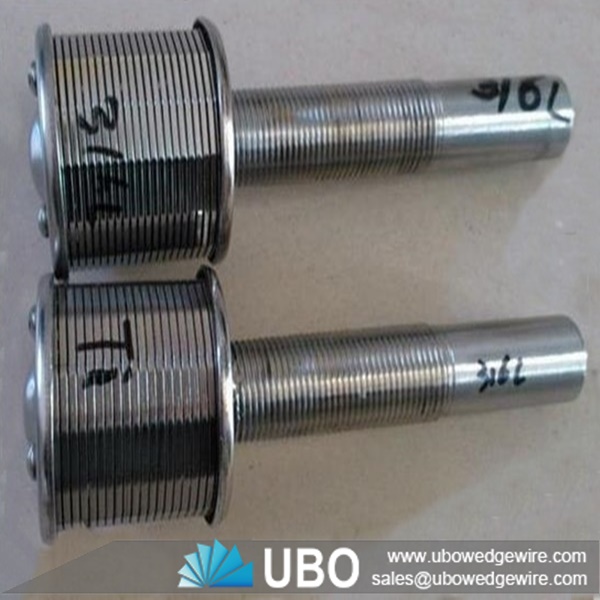

The single water flow rate screen nozzle a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.
Application of Single water flow rate screen nozzle
Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.
Advantage of Single water flow rate screen nozzle
•high strength compared to plastic nozzles
•flexibility in design
•strong construction (self supporting)
•large open area
•plug-resistant slot design
Specifications of Single water flow rate screen nozzle:
Type |
Slot |
Dimension |
Flow area |
||||
D |
H |
L |
M |
L1 |
|||
A |
0.2mm |
Φ45 |
35 |
150 |
M24 |
Decided by the perforated plate thickness |
330m3 |
A1 |
0.2mm |
Φ45 |
40 |
160 |
M24 |
400m3 |
|
B |
0.2mm |
Φ53 |
45 |
160 |
M24 |
500m3 |
|
B1 |
0.2mm |
Φ53 |
45 |
160 |
M32 |
600m3 |
|
B2 |
0.2mm |
Φ53 |
50 |
170 |
M32 |
650m3 |
|
C |
0.2mm |
Φ57 |
45 |
160 |
M32 |
630m3 |
|
C1 |
0.2mm |
Φ57 |
50 |
170 |
M32 |
780m3 |
|
C2 |
0.2mm |
Φ57 |
55 |
180 |
M32 |
850m3 |
Note:
4.standard accessories: each water filter nozzle with rubber gasket ,metal gasket material,2 pieces thin type Hexagon nuts.
5.Material:stainless steel 304, 316, 316L, Hastelloy etc.
6.Special specification can be customized according to customer need, welcome to purchase.
Packaging and Transportation of Single water flow rate screen nozzle:
