stainless steel single water flow rate screen nozzle
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Screen |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of stainless steel single water flow rate screen nozzle

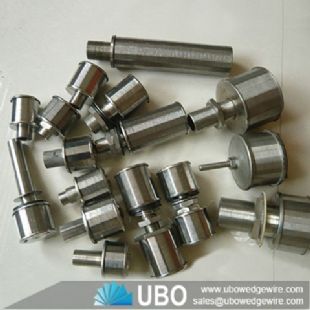

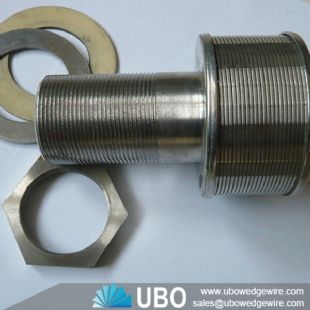

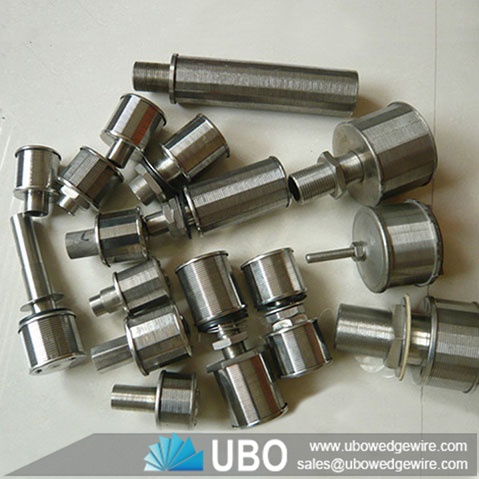

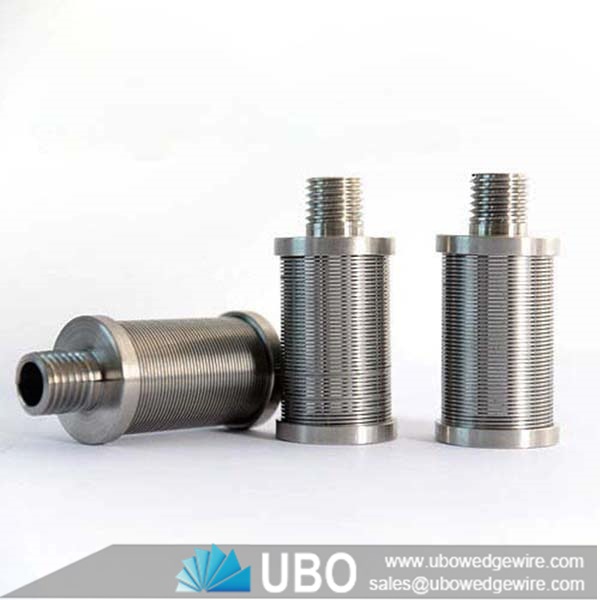

The single water flow rate screen nozzle a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.
Application for stainless steel single water flow rate screen nozzle:
Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.
Advantages for stainless steel single water flow rate screen nozzle:
Type 316L stainless steel construction.
Continuous slot design provides increased open area for better collection.
Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Specifications of stainless steel single water flow rate screen nozzle:
Type |
Slot |
Dimension |
Flow area |
||||
D |
H |
L |
M |
L1 |
|||
A |
0.2mm |
Φ45 |
35 |
150 |
M24 |
Decided by the perforated plate thickness |
330m3 |
A1 |
0.2mm |
Φ45 |
40 |
160 |
M24 |
400m3 |
|
B |
0.2mm |
Φ53 |
45 |
160 |
M24 |
500m3 |
|
B1 |
0.2mm |
Φ53 |
45 |
160 |
M32 |
600m3 |
|
B2 |
0.2mm |
Φ53 |
50 |
170 |
M32 |
650m3 |
|
C |
0.2mm |
Φ57 |
45 |
160 |
M32 |
630m3 |
|
C1 |
0.2mm |
Φ57 |
50 |
170 |
M32 |
780m3 |
|
C2 |
0.2mm |
Φ57 |
55 |
180 |
M32 |
850m3 |
Note:

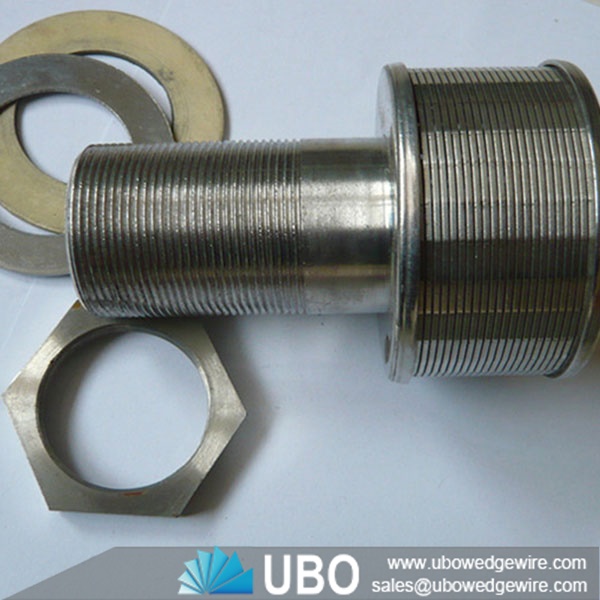

4.standard accessories: each water filter nozzle with rubber gasket ,metal gasket material,2 pieces thin type Hexagon nuts.
5.Material:stainless steel 304, 316, 316L, Hastelloy etc.
6.Special specification can be customized according to customer need, welcome to purchase.
