Single-tube water filter nozzle

More Views

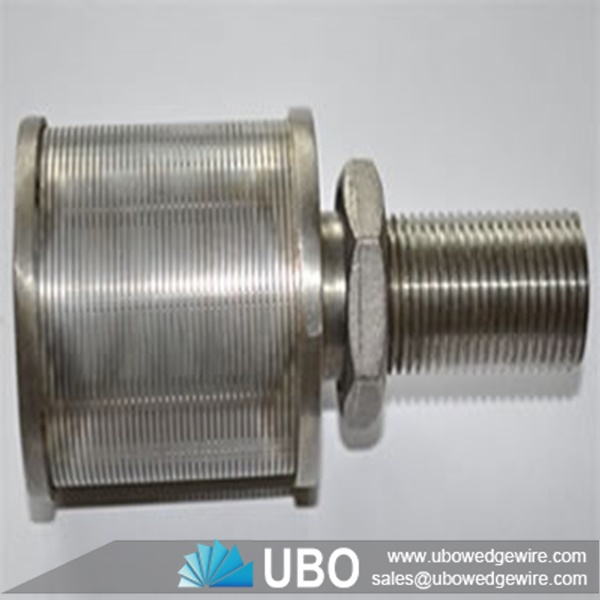

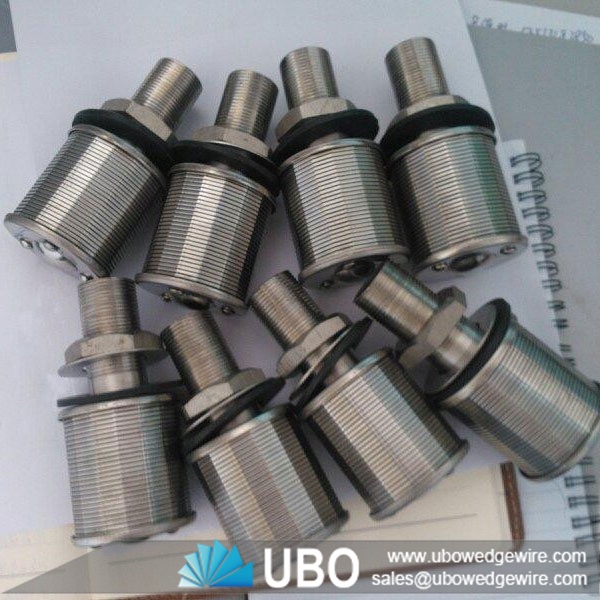

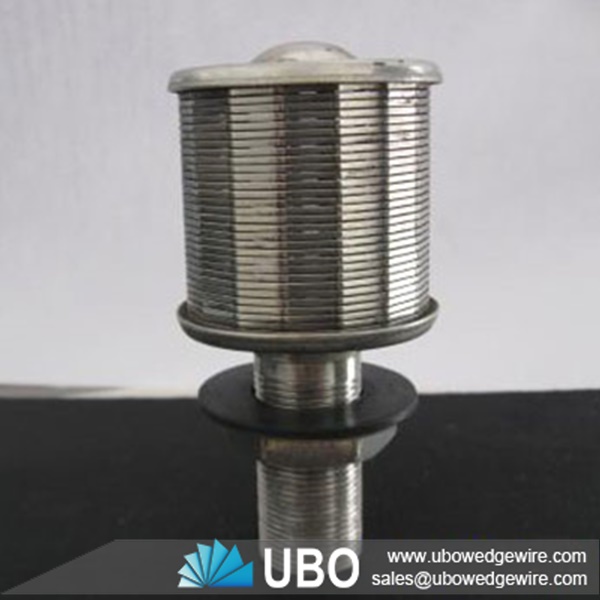

Single-tube water filter nozzleSingle-tube water filter nozzleSingle-tube water filter nozzle

Single-tube water filter nozzle

Category:Filter Nozzle
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Single-tube water filter nozzle

Single-tube water filter nozzles are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Advantages of Single-tube water filter nozzle

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Application of Single-tube water filter nozzle

It use in the water softening treatment equipment, replace Polypropylene(PP) filter. down-flow reactors for liquid/solid or gas/solid separation.

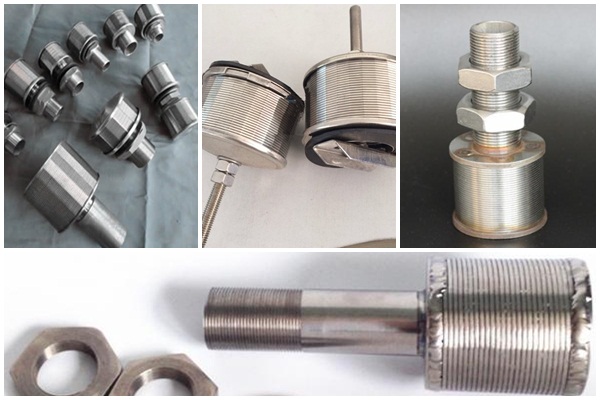

Single-tube water filter nozzle

Specifications of Single-tube water filter nozzle:

Single-tube water filter nozzle

Type

Slot

Dimension



Flow area

D

H

L

M



A

0.25

Φ45

40

90

M20



450m3

A1

0.25

Φ45

40

90

M24



500m3



(flow 0.5T/H)

B

0.25

Φ53

45

100

M24



570m3



(flow  1T/H)

B1

0.25

Φ53

45

100

M32



600m3



(flow  1.5T/H)

B3

0.25

Φ57

55

110

M32



800m3



(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32



800m3

C1

0.2-0.5

Φ70

55

120

M32



1000m3

Packaging and Transportation of Single-tube water filter nozzle:

transport
