SS water filter nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS water filter nozzle
UBO supply high quality SS water filter nozzle, Cylinder Filter Nozzle, and tower packings/fillings for waste water treatment.

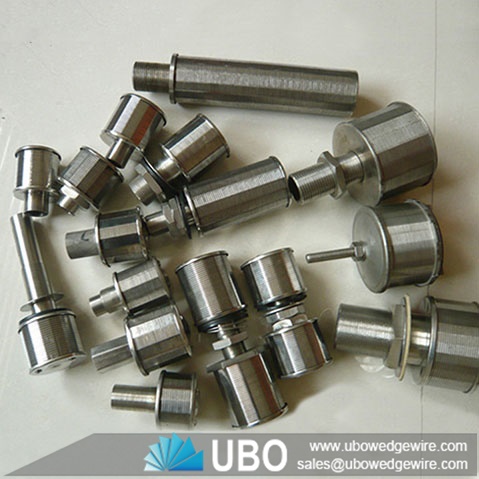

UBO has a wide selection of SS SS water filter nozzle which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Water Treatment Plants (WTP) for producing drinking water; Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.
We supply high quality various specifications SS water filter nozzlee, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.
Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.
Application of SS Profile Screen Water Filter Nozzle
Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Advantages of SS Profile Screen Water Filter Nozzle
-- Excellent roundness
-- Very good slot width precision
-- High mechanical load capacity
-- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
-- Automated welding process for high-precision manufacturing
-- Perfectly adjusted screen basket profiles
-- Available for all screens
-- Surface finishing as required
Specifications of SS water filter nozzle:
NO. |
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm²(reference) |
|||
D |
L1 |
L |
M |
|
||||
1 |
TYS45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
TYS53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
TYS53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
TYS57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
TYS70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
Packaging and Transportation of SS water filter nozzle:
