SS Wedge Wire filter nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 302,304,304L,316,316L |
Properties: | wedge wire screen |
Application: | water treatment,oilfield,mining,water well,food,industry,filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

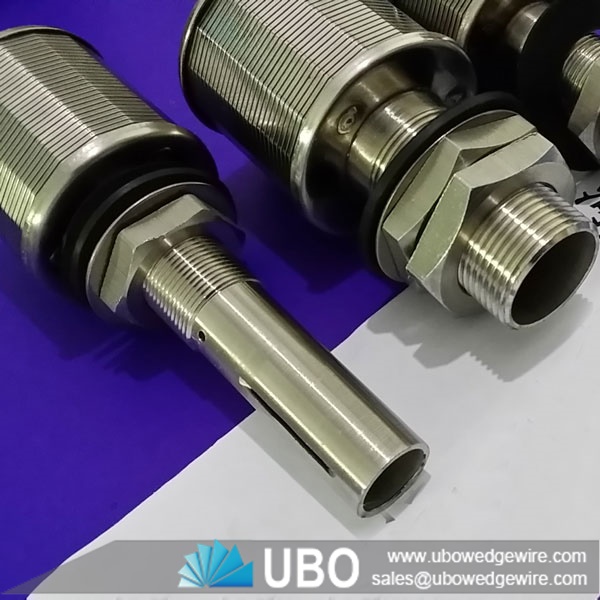

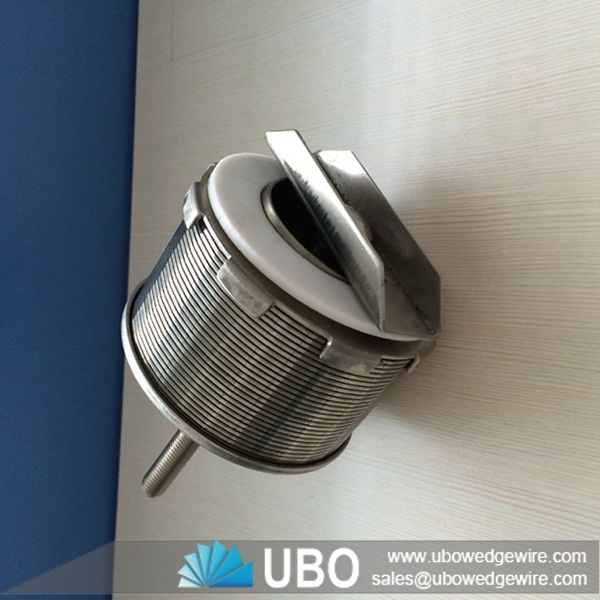

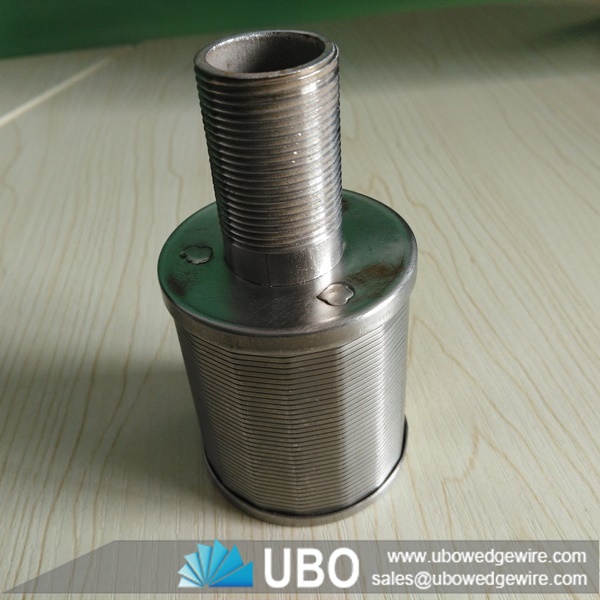

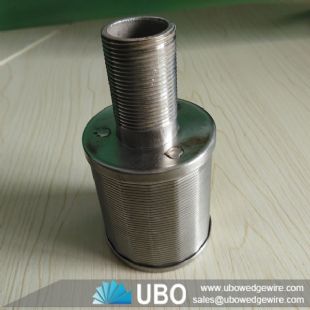

Details of SS Wedge Wire filter nozzle
SS Wedge Wire filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.
SS Wedge Wire filter nozzle is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life. If there is any need please contact us via sales1@wedgewire.com.
Advantages of SS Wedge Wire filter nozzle
Type 316L stainless steel construction.
Continuous slot design provides increased open area for better collection.
Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Application of SS Wedge Wire filter nozzle
Wedge wire screen nozzle has many important roles to play and is useful for filtration in various industries. UBO Wedge Wire filter nozzles are primarily used as add-ons to filtering equipment in the water petrol resin industry. That said, nozzles are also used in various industries including: water treatment, sea water conversion to fresh water plants and food chemistry filtration. This new type of filtration component is made from stainless steel material ensuring durability, and filtration precision starts from 20 microns. Nozzles are welded to the profile(s) on several connection areas to ensure stability.
Specifications of SS Wedge Wire filter nozzle:
- Material:stainless steel
- OD is 76mm as your request
- The Filtering slot is 700micron.
- Thread 5/16" BSW thread
- Height is 50 mm
- One end is opening
- Everage filtering slot, tolerance + - 0.02mm
- Strong welding with nice welding
- Perfect roundness with smooth surface
Data of Wedge wire screen part.
|
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
