SS Wedge Wire Screen Water Filter Nozzle

More Views

SS Wedge Wire Screen Water Filter NozzleSS Wedge Wire Screen Water Filter NozzleSS Wedge Wire Screen Water Filter Nozzle

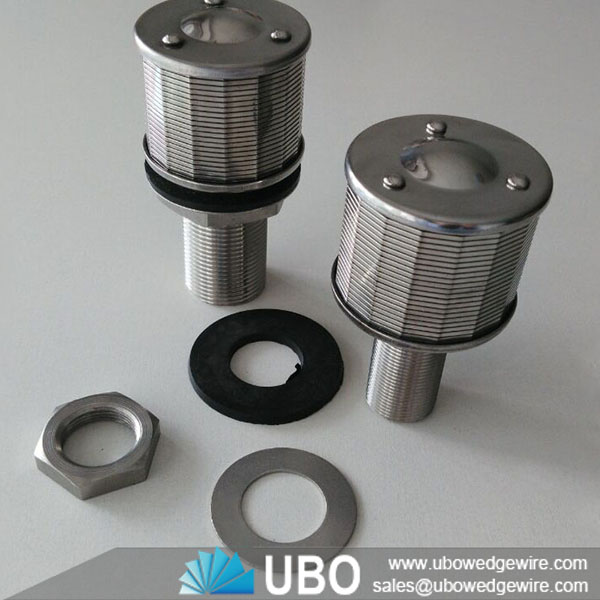

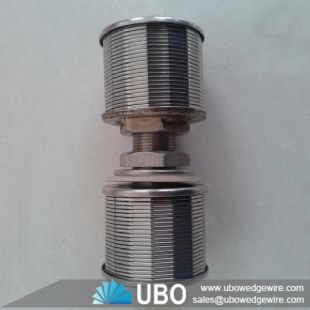

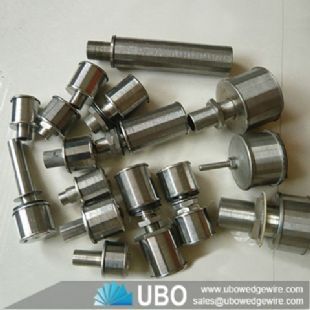

SS Wedge Wire Screen Water Filter Nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Wedge Wire Screen Water Filter Nozzle

SS Wedge Wire screen water filter nozzle is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.


According to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements.

Single wedge wire nozzle.

Double wedge wire nozzle.

SS Wedge Wire screen water filter nozzle

Advantage of SS Wedge Wire Screen Water Filter Nozzle


-- Non-clogging.

-- High open area.

-- High filtering performance.

-- Corrosion and rust resistance.

-- High temperature resistance.

-- Economical.

-- Easy to install and replacement.


Application SS Wedge Wire Screen Water Filter Nozzle



Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.


Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

SS Wedge Wire screen water filter nozzle

Specifications of SS Wedge Wire Screen Water Filter Nozzle:

SS Wedge Wire screen water filter nozzle

Type

Slot

Dimension

Flow area

D

H

L

M

A

0.25

Φ45

40

90

M20

450m3

A1

0.25

Φ45

40

90

M24

500m3

(flow 0.5T/H)

B

0.25

Φ53

45

100

M24

570m3

(flow  1T/H)

B1

0.25

Φ53

45

100

M32

600m3

(flow  1.5T/H)

B3

0.25

Φ57

55

110

M32

800m3

(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32

800m3

C1

0.2-0.5

Φ70

55

120

M32

1000m3

Packaging and Transportation of SS Wedge Wire Screen Water Filter Nozzle:

SS Wedge Wire screen water filter nozzle
