AISI 304 Wedge Wire Screen Water Filter Nozzle

More Views

AISI 304 Wedge Wire Screen Water Filter NozzleAISI 304 Wedge Wire Screen Water Filter NozzleAISI 304 Wedge Wire Screen Water Filter Nozzle

AISI 304 Wedge Wire Screen Water Filter Nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or AISI 304
Properties:filter nozzle
Application:water-treatment, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI 304 Wedge Wire Screen Water Filter Nozzle

The AISI 304 Wedge Wire Screen Water Filter Nozzle is a highly efficient filtration component engineered for superior performance in liquid/solid or gas/solid separation.


Our AISI 304 wedge wire filter nozzles are available with the following configurations.

Material: Type AISI 304 stainless steel construction.

Design: Manufactured with wedge wire profiles welded on support rods.

Specifications: Standard slot opening typically ranges between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

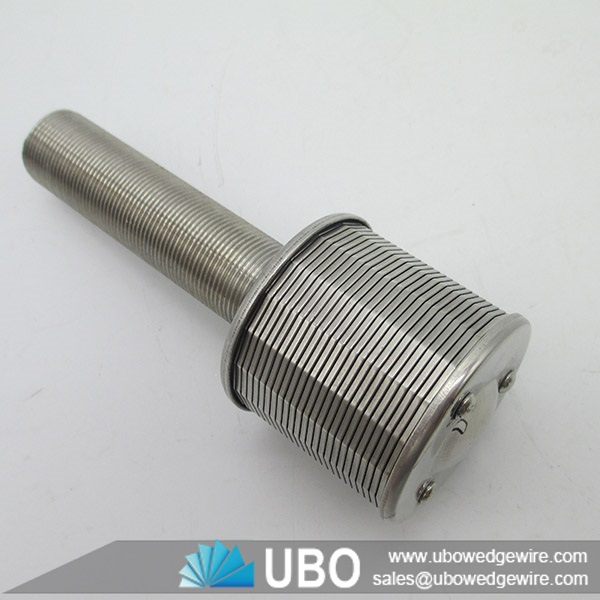

AISI 304 Wedge Wire water filter screen nozzle, wedge wire screen

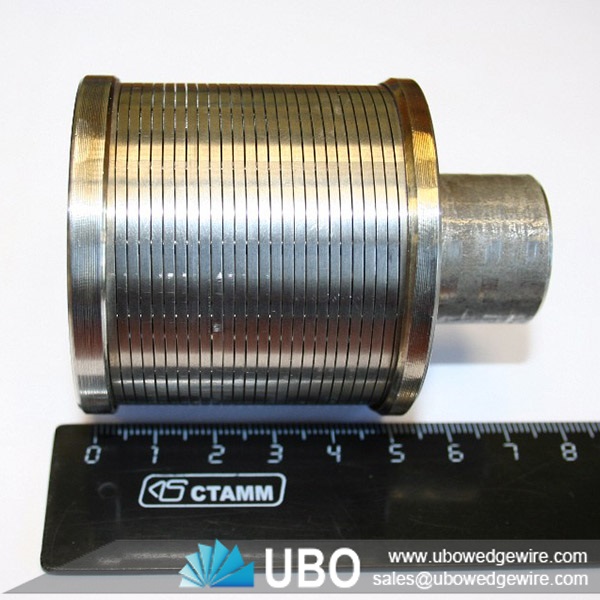

Wedge Wire water filter screen nozzle for water treatment



CONTACT US



Key Features of AISI 304 Wedge Wire Screen Water Filter Nozzle

1. Wedge Wire Design

The filter nozzle is constructed with wedge wire screen technology, which offers precise and efficient filtration. The V-shaped profile of the wires prevents clogging by minimizing the contact points, allowing for uninterrupted water flow and debris removal.

2. Stainless Steel Material

AISI 304 stainless steel provides exceptional resistance to rust and chemical damage, making the nozzle ideal for both potable water systems and industrial water treatment processes.

3. Uniform Slot Openings

The uniform slot sizes ensure consistent filtration, preventing particle breakthrough and ensuring water quality.


Various Applications of AISI 304 Wedge Wire Screen Water Filter Nozzle

1. Water Treatment Plants: Used in pressure vessels, ion exchange systems, and media filtration units.

2. Industrial Water Filtration: Suitable for removing particles from process water and cooling systems.

3. Desalination: Critical in reverse osmosis systems for pre-filtration and post-treatment processes.

4. Power Plants and Refineries: Used to protect downstream equipment by ensuring the purity of cooling and process water.

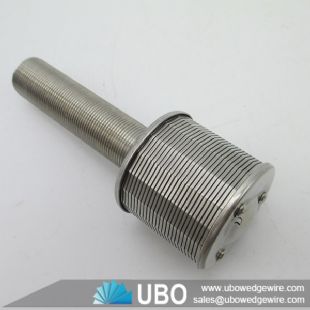

stainless steel filter nozzle, wedge wire screen nozzle, manufacturer in China

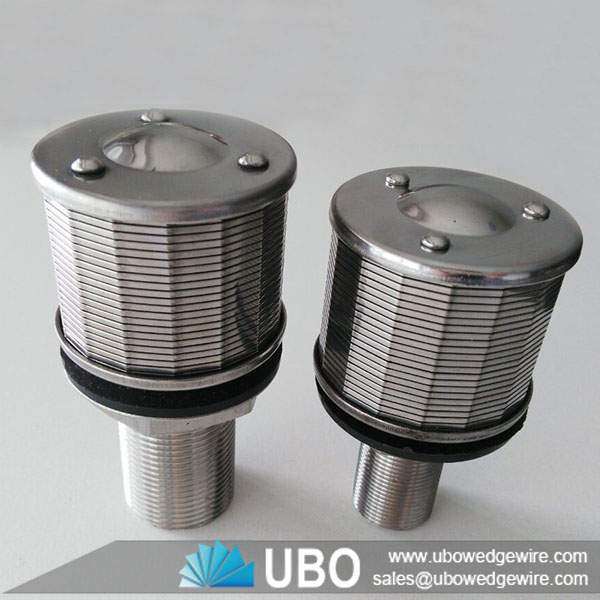

Wedge Wire water filter screen nozzle

AISI 304 Wedge Wire water filter screen nozzle, filter nozzle, supplier

Specifications of AISI 304 Wedge Wire Screen Water Filter Nozzle:

AISI 304 Wedge Wire water filter screen nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0


* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of AISI 304 Wedge Wire Screen Water Filter Nozzle:

AISI 304 Wedge Wire water filter screen nozzle
