In high-capacity filtration and water treatment systems, maintaining uniform flow distribution is essential for achieving stable performance and protecting filtration media. Wedge Wire Header Laterals are widely used as critical internal components in pressure vessels, multimedia filters, ion exchange systems, and industrial water treatment equipment due to their high flow capacity, excellent strength, and reliable media retention.

Unlike conventional perforated pipes or mesh-based distributors, wedge wire header laterals utilize a continuous V-shaped slot design that improves hydraulic efficiency while minimizing clogging risks. Their optimized structure allows fluids to be collected or distributed evenly across the filtration vessel, improving system performance and extending equipment service life.

1. The Role of Wedge Wire Header Laterals in Filtration Systems

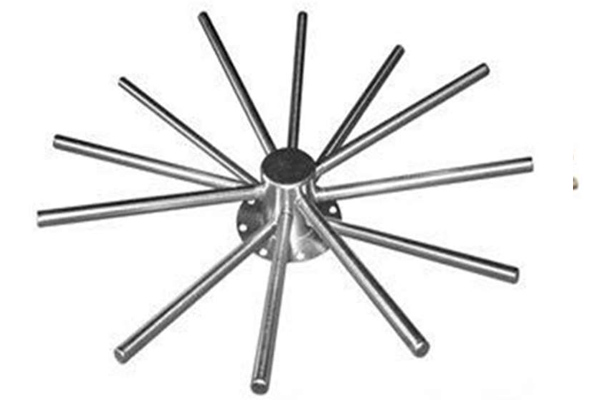

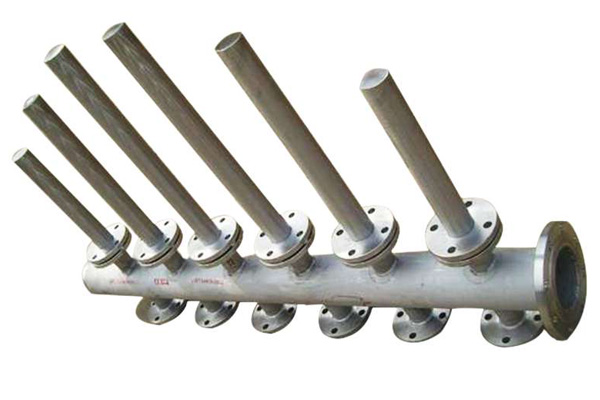

A header lateral system typically consists of a central header pipe connected with multiple lateral arms. These components work together to distribute incoming fluids or collect treated water evenly throughout the vessel.

The main functions include:

• Uniform fluid distribution

• Efficient collection of filtered water

• Prevention of media loss

• Reduction of pressure drop

• Improvement of filtration cycle efficiency

In high-capacity systems, uneven flow distribution can create channeling effects, where some areas of the filter media become overloaded while others remain underutilized.

A properly designed wedge wire header lateral system helps maintain balanced hydraulic conditions and improves the overall filtration process.

2. Why Wedge Wire Design Improves Flow Capacity

The key advantage of wedge wire header laterals comes from their unique V-shaped profile wire structure.

The wedge wire screen is manufactured by welding profile wires onto support rods, creating continuous slots along the surface.

This design provides several important benefits:

High Open Area

Compared with traditional drilled pipes or perforated plates, wedge wire laterals provide a larger effective open area.

Higher open area helps achieve:

• Greater flow capacity

• Lower pressure loss

• Improved energy efficiency

This makes wedge wire laterals particularly suitable for large-scale filtration systems requiring high throughput.

Anti-Clogging Performance

The V-shaped slot geometry prevents particles from becoming trapped inside the opening.

As the slot widens internally:

• Fine particles can pass through more easily

• Surface blockage is reduced

• Cleaning efficiency improves

This self-cleaning characteristic allows the system to maintain stable operation during long filtration cycles.

3. Flow Distribution Efficiency in High-Capacity Systems

For large filtration vessels, flow distribution is one of the most important design considerations.

Poor distribution may lead to:

• Uneven media utilization

• Reduced filtration efficiency

• Higher pressure drop

• Shortened operating cycles

Wedge wire header laterals help solve these issues by providing consistent fluid collection or distribution across the entire vessel area.

Key design factors include:

Lateral Arrangement

The number and positioning of lateral arms influence flow balance and hydraulic performance.

Slot Orientation

The direction of wedge wire slots affects particle retention and fluid movement.

Header Size

Proper header diameter selection ensures that flow velocity remains within an efficient operating range.

4. Slot Size Selection and Media Retention

Choosing the correct slot size is critical for achieving the balance between flow performance and filtration reliability.

If the slot opening is too large:

• Filter media may escape

• Downstream contamination may occur

• System performance may decrease

If the slot opening is too small:

• Flow resistance increases

• Pressure drop rises

• Fouling risk becomes higher

The ideal slot size depends on:

• Media particle size

• Filtration requirements

• Operating flow rate

• Backwashing conditions

Proper slot selection ensures that fluids pass efficiently while retaining filter media securely.

5. Mechanical Strength and Material Selection

High-capacity filtration systems often operate under continuous pressure, repeated backwashing, and chemical exposure.

Therefore, wedge wire header laterals require excellent mechanical strength and corrosion resistance.

Common materials include:

Stainless Steel 304 / 304L

Suitable for general water treatment and standard industrial applications.

Stainless Steel 316L

Preferred for:

• Chemical filtration

• Marine environments

• High-purity water systems

due to improved corrosion resistance.

Duplex Stainless Steel and Special Alloys

Used for demanding applications requiring:

• Higher mechanical strength

• Superior corrosion resistance

• Extended service life

Material selection directly affects the reliability and maintenance requirements of the filtration system.

6. Wedge Wire Header Laterals in Different Applications

Due to their durability and hydraulic advantages, wedge wire header laterals are commonly used in:

Water Treatment Systems

• Multimedia filters

• Activated carbon filters

• Sand filtration systems

Ion Exchange Systems

• Water softeners

• Demineralization units

• Resin filtration vessels

Industrial Filtration

• Process water treatment

• Chemical filtration

• High-flow liquid separation

Power Generation

• Cooling water filtration

• Boiler feedwater systems

These applications require reliable internal components capable of maintaining stable flow under demanding conditions.

7. Maintenance and Lifecycle Advantages

A well-designed wedge wire header lateral system can significantly reduce maintenance requirements.

The continuous slot structure provides:

• Lower clogging tendency

• Easier backwashing

• Reduced pressure fluctuations

• Longer service intervals

Compared with traditional filtration distributors, wedge wire systems often provide better long-term reliability because they maintain hydraulic performance over extended operating periods.

Proper inspection should focus on:

• Weld integrity

• Slot blockage

• Corrosion conditions

• Mechanical deformation

Regular maintenance helps maximize system lifespan and filtration efficiency.

FAQ

What is a Wedge Wire Header Lateral?

A wedge wire header lateral is a filtration distributor component made from V-shaped profile wires welded onto support structures. It distributes or collects fluids while retaining filtration media.

Why are wedge wire laterals suitable for high-capacity filtration systems?

Their high open area, strong structure, and anti-clogging slot design allow higher flow rates with lower pressure loss.

How is slot size selected for wedge wire header laterals?

Slot size depends on the filter media particle size, filtration requirements, flow conditions, and media retention requirements.

What materials are commonly used for wedge wire header laterals?

Common materials include stainless steel 304, 316L, duplex stainless steel, and specialty alloys for corrosive environments.

Wedge Wire Header Laterals are essential components for achieving efficient flow distribution in high-capacity filtration systems. Their V-shaped slot design provides excellent hydraulic performance, reliable media retention, and long-term durability.

By optimizing slot size, open area, material selection, and lateral configuration, engineers can improve filtration efficiency, reduce maintenance requirements, and ensure stable operation in demanding industrial environments.

For modern filtration systems, wedge wire header laterals are not simply distribution components—they are key elements that determine overall system performance and reliability.
