As water treatment systems become more demanding, filtration components must deliver not only high separation efficiency but also long-term hydraulic stability and low maintenance requirements. Among various filtration technologies, wedge wire filter tubes have become a preferred solution for municipal water treatment, groundwater wells, industrial process water, desalination pretreatment, and wastewater recycling.

Unlike conventional perforated pipes or woven mesh screens, wedge wire filter tubes feature continuous V-shaped slots that maximize open area while minimizing clogging. Their unique construction improves flow distribution, reduces pressure loss, and enhances operational reliability, making them particularly suitable for continuous filtration systems.

This article explores the engineering principles behind wedge wire filter tubes, the factors that influence filtration performance, and how proper design can significantly improve water filtration efficiency.

What Is a Wedge Wire Filter Tube?

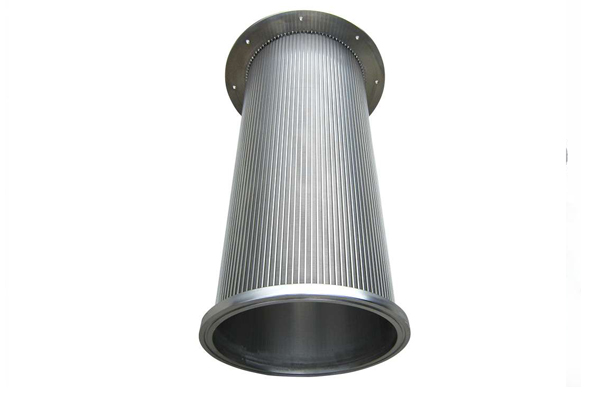

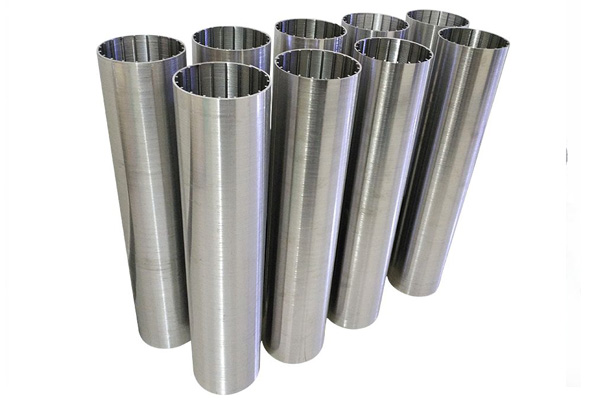

A wedge wire filter tube is a cylindrical filtration element manufactured by resistance welding V-shaped profile wires onto longitudinal support rods. The resulting continuous slot openings provide precise particle retention while maintaining excellent hydraulic performance.

Unlike drilled or perforated screens, wedge wire tubes create slots that widen inward. This geometry reduces particle bridging and allows contaminants to be released more easily during backwashing.

Typical specifications include:

• Slot opening: 0.05–3.00 mm

• Diameter: 25–1000 mm

• Length: Up to 6000 mm

• Materials: SS304, SS316L, Duplex 2205, Hastelloy, and other corrosion-resistant alloys

Why Wedge Wire Filter Tubes Deliver Higher Water Filtration Efficiency

1. High Open Area Improves Flow Capacity

Open area is one of the most important hydraulic parameters in filtration design.

Because wedge wire tubes use continuous slots instead of drilled holes, they typically achieve an open area of 20%–60%, depending on the wire profile and slot width.

A higher open area provides several advantages:

• Higher flow rates

• Lower pressure drop

• Reduced pump energy consumption

• Improved backwash performance

• Longer filtration cycles

This allows filtration systems to process larger volumes of water without increasing equipment size.

2. Continuous Slot Design Reduces Clogging

Traditional perforated screens often trap particles inside cylindrical holes, gradually increasing pressure loss.

Wedge wire tubes use a V-shaped profile that widens toward the interior of the tube.

This design:

• Prevents particle wedging

• Minimizes surface fouling

• Improves self-cleaning characteristics

• Supports more effective backwashing

As a result, filtration efficiency remains more consistent during long-term operation.

3. Uniform Flow Distribution Protects the Entire Filtration System

Efficient filtration is not determined solely by particle removal—it also depends on hydraulic balance.

A properly designed wedge wire filter tube distributes water evenly across the filtration surface, reducing localized high-velocity zones that can lead to:

• Uneven media loading

• Channeling

• Premature filter bed clogging

• Increased differential pressure

Uniform flow contributes to greater operational stability and extends the service life of both the filter media and downstream equipment.

Four Critical Design Factors

Slot Size Selection

Slot width should be selected according to the particle size distribution of the application.

Typical recommendations include:

Choosing an excessively small slot may increase pressure loss, while an oversized slot may reduce filtration accuracy.

Material Selection

The operating environment determines the appropriate material.

Proper material selection helps prevent corrosion and extends equipment life.

Structural Strength

Water treatment systems often experience fluctuating pressures, backwash cycles, and continuous operation.

The resistance-welded construction of wedge wire tubes provides:

• High collapse strength

• Excellent fatigue resistance

• Stable slot geometry

• Reliable long-term performance

These characteristics are especially valuable in deep well screens and high-pressure filtration systems.

Manufacturing Precision

Filtration performance depends on consistent slot dimensions.

High-quality wedge wire filter tubes are manufactured using CNC-controlled resistance welding to achieve:

• Uniform slot openings

• Smooth welds

• Accurate roundness

• Reliable dimensional tolerances

Precision manufacturing ensures predictable hydraulic performance throughout the product's service life.

Typical Water Treatment Applications

Wedge wire filter tubes are widely used in:

• Municipal drinking water plants

• Groundwater extraction wells

• Reverse osmosis pretreatment

• Industrial process water systems

• Cooling water filtration

• Wastewater treatment facilities

• Desalination plants

• River and lake water intake systems

• Aquaculture water filtration

• Food and beverage water processing

Their versatility makes them suitable for both coarse screening and precision filtration.

Best Practices for Maximizing Filtration Performance

To achieve optimal performance, engineers should:

• Match slot size to the target particle size distribution.

• Design for appropriate filtration velocity to minimize pressure loss.

• Select corrosion-resistant materials based on water chemistry.

• Ensure adequate open area without compromising mechanical strength.

• Perform periodic backwashing and routine inspections.

• Specify filter tubes manufactured with tight slot tolerances.

These measures help improve filtration efficiency while reducing maintenance requirements and extending service life.

FAQ

1. Why are wedge wire filter tubes more efficient than perforated pipes?

Their continuous V-shaped slots provide a larger effective open area, lower pressure drop, and superior resistance to clogging compared with conventional perforated designs.

2. What slot size is commonly used for water filtration?

The appropriate slot size depends on the application. Water treatment systems commonly use openings between 0.10 mm and 1.00 mm, selected according to the particle size distribution and required filtration accuracy.

3. Which material is best for corrosive water environments?

SS316L is suitable for many corrosive water applications, while Duplex 2205 or Hastelloy may be preferred in high-chloride or highly aggressive chemical environments.

4. How long can a wedge wire filter tube last?

With proper material selection, regular maintenance, and appropriate operating conditions, stainless steel wedge wire filter tubes can provide 10–20 years of reliable service in many industrial and municipal water treatment systems.

Wedge wire filter tubes have become a cornerstone of modern water filtration systems because they combine high hydraulic efficiency, precise particle retention, robust mechanical strength, and exceptional durability. Their continuous V-shaped slot design minimizes clogging, lowers pressure drop, and promotes uniform flow distribution, enabling more reliable and energy-efficient operation.

For engineers designing municipal, industrial, or environmental water treatment systems, selecting the right wedge wire filter tube involves more than choosing a slot size. By optimizing material selection, open area, structural design, and manufacturing precision, facilities can improve filtration efficiency, reduce maintenance frequency, and achieve a lower total cost of ownership over the system's lifecycle.
