Wedge Wire Curved Screen Plate Performance Factors Explained

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

Wedge Wire Curved Screen Plates are widely used in industrial solid-liquid separation, screening, and dewatering applications due to their high open area, strong mechanical structure, and excellent resistance to clogging. Unlike traditional woven mesh or perforated screens, wedge wire technology uses continuously welded V-shaped profile wires to create precise slot openings, providing more stable separation performance under demanding operating conditions.

However, the performance of a curved screen plate depends on more than its basic structure. Factors such as slot size, open area, wire profile, material selection, feed characteristics, and operating conditions directly influence screening efficiency, throughput capacity, and service life.

Understanding these factors helps engineers select the right screen design for applications including mining, coal processing, wastewater treatment, food processing, and mineral separation.

1. Slot Size Selection and Separation Accuracy

Slot size is one of the most important factors affecting the performance of a wedge wire curved screen plate.

The opening between profile wires determines which particles pass through and which particles are retained. A smaller slot size improves separation accuracy but may reduce flow capacity, while a larger slot size increases throughput but may allow more fine particles to pass.

Proper slot selection requires balancing:

• Target particle size
• Required separation efficiency
• Material recovery requirements
• Processing capacity

For example, in mineral processing applications, excessively small slots can increase the risk of surface blinding when handling fine particles, while oversized slots may reduce valuable solids recovery.

A correctly selected slot opening provides efficient separation while maintaining stable operation.

2. V-Shaped Wire Profile and Anti-Clogging Performance

The unique V-shaped profile is one of the key advantages of wedge wire curved screen plates.

The slot opening is narrow at the screening surface and gradually widens inward. This design prevents particles from becoming trapped inside the screen structure.

Compared with conventional flat openings, the wedge-shaped slot provides:

• Reduced clogging risk
• Easier particle release
• Improved cleaning efficiency
• More consistent screening performance

During operation, particles either pass through the opening or remain on the smooth surface where they can be removed by gravity, vibration, or flowing material.

This self-cleaning effect helps maintain throughput and reduces maintenance frequency.

3. Open Area and Processing Capacity

Open area directly affects the hydraulic capacity and screening efficiency of a curved screen plate.

A higher open area allows more liquid or fine particles to pass through, reducing flow resistance and improving overall throughput.

Compared with perforated plates, wedge wire screens typically provide a larger effective screening area because the continuous slot design creates fewer structural restrictions.

Higher open area contributes to:

• Increased processing capacity
• Lower pressure loss
• Improved drainage performance
• Reduced energy consumption

However, maximizing open area should not compromise mechanical strength. The optimal design requires balancing screening performance with structural durability.

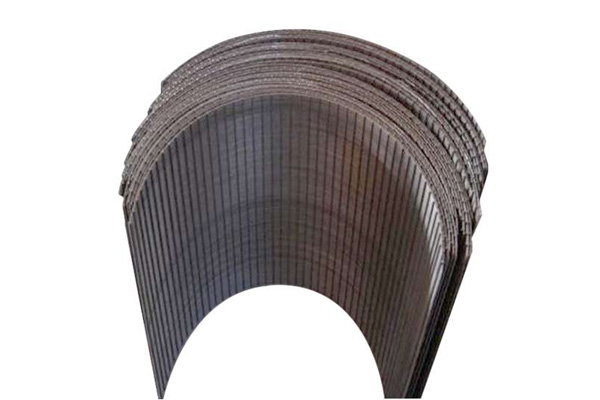

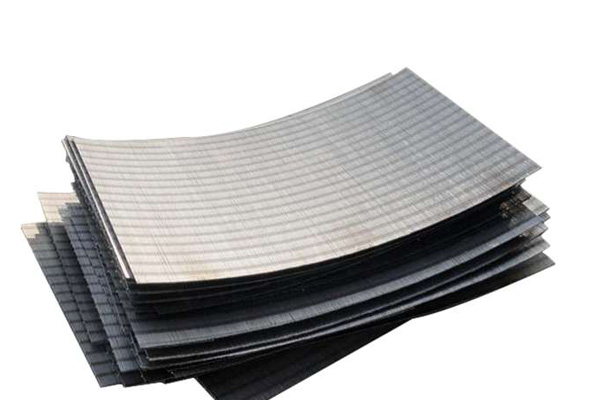

4. Curved Design and Flow Distribution

The curved structure of a wedge wire screen plate improves material movement and separation efficiency.

When slurry or solids flow across the curved surface, centrifugal and gravity forces help distribute material evenly along the screening area.

This design provides several benefits:

• Longer contact time between material and screen surface
• Improved liquid drainage
• More effective particle separation
• Higher solids concentration after dewatering

Compared with flat screens, curved screens can handle high-volume flows in a compact installation footprint, making them particularly valuable in mining and mineral processing applications.

5. Material Selection and Wear Resistance

The operating environment has a significant impact on screen lifespan.

Different applications require different materials based on corrosion, temperature, and abrasion conditions.

Common materials include:

Stainless Steel 304

Suitable for general industrial applications with moderate corrosion requirements.

Stainless Steel 316L

Preferred for chemical processing, wastewater treatment, and marine environments due to improved corrosion resistance.

Duplex Stainless Steel

Used in demanding applications requiring higher strength and resistance to chloride corrosion.

Special Alloys

Materials such as titanium or nickel alloys may be selected for highly aggressive chemical environments.

For abrasive materials such as minerals, sand, and coal slurry, wear resistance is a critical consideration. Proper material selection can significantly extend service life and reduce replacement costs.

6. Feed Characteristics and Operating Conditions

Even a well-designed wedge wire curved screen plate may not perform effectively if operating conditions are not considered.

Important factors include:

Particle Size Distribution

A wide variation in particle size affects separation efficiency and potential clogging.

Solids Concentration

High solids loading requires sufficient open area and structural strength.

Flow Velocity

Excessive velocity may increase wear, while insufficient velocity can lead to material accumulation.

Cleaning Method

Regular flushing, mechanical cleaning, or optimized operating conditions can help maintain performance.

Understanding the actual process conditions is essential for achieving stable long-term operation.

7. Manufacturing Quality and Structural Design

The durability of a wedge wire curved screen plate depends heavily on manufacturing quality.

Important design factors include:

• Precise slot uniformity
• Strong wire-to-support rod welding
• Accurate panel curvature
• Proper reinforcement structure

Continuous resistance welding creates a rigid structure capable of handling vibration, impact, and heavy material loading.

High-quality manufacturing ensures that slot openings remain stable throughout the service life of the screen.

Applications of Wedge Wire Curved Screen Plates

Due to their high efficiency and durability, wedge wire curved screen plates are widely used in:

• Coal washing and mineral processing
• Sand and gravel classification
• Wastewater screening
• Pulp and paper processing
• Food and starch separation
• Chemical solid-liquid separation

Their ability to provide continuous operation with minimal clogging makes them suitable for industries requiring reliable high-capacity screening.

FAQ

What is the main advantage of a wedge wire curved screen plate?

Its V-shaped slot design provides high open area, excellent clog resistance, and consistent separation performance.

How does slot size affect screen performance?

Smaller slots improve particle retention but may reduce flow capacity, while larger slots increase throughput but may reduce separation accuracy.

Why are wedge wire screens less likely to clog?

The inward-widening slot design prevents particles from becoming trapped inside the opening.

What materials are commonly used for curved screen plates?

Stainless steel 304, 316L, duplex stainless steel, and specialty alloys are commonly selected according to application conditions.

The performance of a Wedge Wire Curved Screen Plate depends on the interaction between design parameters, material properties, and operating conditions. Slot size, open area, V-shaped wire geometry, structural strength, and material selection all play important roles in determining screening efficiency and service life.

By optimizing these factors, industries can achieve higher throughput, improved separation accuracy, reduced maintenance requirements, and lower long-term operating costs. For demanding solid-liquid separation applications, wedge wire curved screen plates provide a reliable and efficient screening solution.
