In industrial solid-liquid separation processes, centrifuge basket filter performance directly influences production capacity, product quality, and operating costs. Among different filtration basket designs, the wedge wire centrifuge basket filter is widely used because of its high open area, strong mechanical structure, and excellent resistance to clogging.

However, achieving maximum throughput is not simply determined by the basket size. Factors such as slot opening, open area, material selection, rotational speed, feed characteristics, and cake formation behavior all affect filtration capacity.

What Is a Wedge Wire Centrifuge Basket Filter?

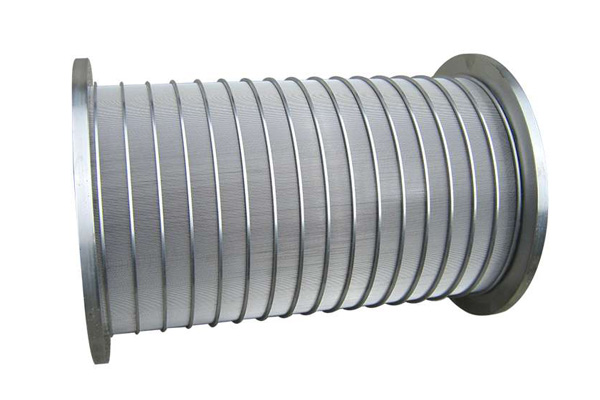

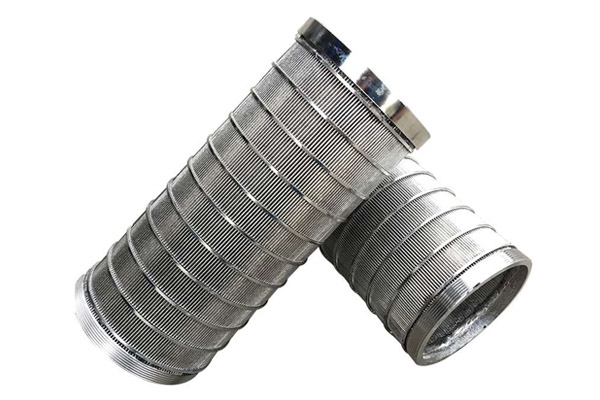

A wedge wire centrifuge basket filter is a cylindrical filtration component installed inside a centrifuge machine to separate solids from liquids through centrifugal force.

Unlike traditional perforated baskets or mesh screens, wedge wire baskets are manufactured by welding V-shaped profile wires onto support rods, creating continuous slot openings.

The unique structure provides:

• High mechanical strength

• High open area

• Precise filtration control

• Improved liquid drainage

• Reduced particle blockage

Common applications include:

• Chemical processing

• Pharmaceutical manufacturing

• Food processing

• Mining and mineral separation

• Sugar refining

• Starch processing

• Wastewater treatment

How Wedge Wire Basket Structure Improves Throughput

Throughput refers to the amount of material a centrifuge can process within a specific period.

A higher throughput requires efficient movement of liquid through the basket while maintaining effective solid retention.

The wedge wire structure improves throughput through several mechanisms.

1. High Open Area Reduces Flow Resistance

One of the most important factors affecting centrifuge throughput is the available filtration area.

Traditional perforated plates contain individual holes that restrict flow paths.

Wedge wire baskets use continuous slots, creating a larger open area.

Benefits include:

• Faster liquid discharge

• Lower filtration resistance

• Improved drainage efficiency

• Higher processing capacity

A properly designed wedge wire basket can achieve significantly better hydraulic performance compared with conventional screening structures.

2. Slot Size Selection Balances Filtration and Capacity

The slot opening determines both separation accuracy and throughput.

A smaller slot size provides:

• Better particle retention

• Cleaner filtrate

However, excessively small openings may increase:

• Flow resistance

• Cake buildup

• Cleaning frequency

A larger slot size improves flow capacity but may allow unwanted particle loss.

Therefore, slot selection should consider:

• Solid particle size distribution

• Required product purity

• Feed concentration

• Separation objectives

The optimal design balances:

Filtration efficiency + Throughput + Operating stability

3. V-Shaped Slots Reduce Clogging Risk

One major advantage of wedge wire technology is the V-shaped slot design.

The opening becomes wider toward the inside of the basket.

This structure helps prevent particles from becoming trapped inside the slot.

Advantages include:

• Reduced blinding

• More stable flow performance

• Easier cleaning

• Longer operating cycles

For centrifuge applications involving sticky or fine materials, this anti-clogging feature is especially valuable.

4. Mechanical Strength Supports High-Speed Operation

Centrifuge baskets operate under high rotational forces.

The basket must withstand:

• Centrifugal stress

• Continuous vibration

• Material loading

• Repeated operating cycles

Wedge wire centrifuge baskets provide excellent mechanical stability because profile wires are resistance welded to support rods.

Advantages include:

• Strong welded structure

• Accurate slot geometry

• Long service life

• Resistance to deformation

This allows reliable operation at demanding rotational speeds.

5. Cake Formation and Discharge Performance

In many centrifuge processes, filtration efficiency depends on the formation of a solid cake layer.

A properly designed wedge wire basket supports:

• Uniform cake formation

• Efficient liquid drainage

• Easier cake removal

Poor basket design may result in:

• Uneven cake thickness

• Reduced drainage

• Lower throughput

• Increased cycle time

Optimized wedge wire geometry improves the interaction between the basket surface and the solid material.

Key Factors Affecting Wedge Wire Centrifuge Basket Throughput

1. Basket Diameter and Height

Larger basket dimensions provide:

• More filtration area

• Higher processing capacity

• Increased material handling capability

However, size must match centrifuge equipment limitations.

2. Rotational Speed

Higher centrifugal force improves liquid separation.

However, excessive speed may cause:

• Increased mechanical stress

• Product damage

• Higher energy consumption

The optimal speed depends on material properties and process requirements.

3. Feed Characteristics

The properties of the feed material strongly influence throughput.

Important factors include:

• Solid concentration

• Particle size

• Viscosity

• Moisture content

• Compressibility

Materials with high viscosity or fine particles typically require optimized slot design and operating conditions.

4. Material Selection

The basket material affects durability and chemical compatibility.

Common materials include:

Selecting the correct material prevents corrosion-related failures and extends service life.

Wedge Wire Basket vs Traditional Centrifuge Screens

The continuous slot structure gives wedge wire baskets advantages in demanding industrial separation applications.

Applications Requiring High Throughput

Chemical Industry

Used for:

• Crystal separation

• Solid recovery

• Chemical intermediate processing

Food Processing

Applications include:

• Sugar crystals

• Starch separation

• Salt processing

Pharmaceutical Manufacturing

Used where:

• Product purity

• Gentle separation

• Reliable filtration

are required.

Mining and Mineral Processing

Used for:

• Mineral dewatering

• Solid recovery

• Slurry separation

How to Optimize Wedge Wire Centrifuge Basket Performance

To maximize throughput, engineers should consider:

Select Proper Slot Opening

Match slot size with particle characteristics.

Increase Effective Filtration Area

Optimize basket dimensions within equipment limitations.

Maintain Correct Operating Speed

Balance separation efficiency and mechanical reliability.

Prevent Surface Blinding

Choose wedge wire designs that minimize particle blockage.

Select Suitable Materials

Ensure compatibility with process conditions.

FAQ

1. Why are wedge wire baskets used in centrifuges?

Wedge wire baskets provide high open area, strong mechanical performance, and excellent resistance to clogging, improving separation efficiency.

2. How does slot size affect centrifuge throughput?

Larger slots generally increase flow capacity, while smaller slots improve particle retention. The correct balance depends on process requirements.

3. Can wedge wire centrifuge baskets handle high-speed operation?

Yes. Their welded construction provides strong mechanical stability for demanding centrifugal applications.

4. What materials are commonly used for centrifuge baskets?

SS304 and SS316L are widely used, while duplex stainless steel and special alloys are selected for corrosive environments.

The wedge wire centrifuge basket filter plays a critical role in improving industrial separation throughput. Its high open area, precise slot control, strong mechanical structure, and anti-clogging design provide significant advantages over traditional filtration screens.

To achieve maximum throughput, engineers must optimize multiple factors, including slot size, basket structure, operating speed, material selection, and feed characteristics.

A properly designed wedge wire centrifuge basket does more than filter solids—it improves process efficiency, reduces maintenance requirements, and supports reliable long-term production.
