How Slot Size Selection Affects Wedge Wire Header Lateral Performance

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

Slot size is one of the most critical design parameters in a wedge wire header lateral system. While it may appear to be a simple dimensional specification, slot size directly influences filtration performance, flow distribution, pressure drop, media retention, backwash efficiency, and overall system reliability.

In water treatment, ion exchange, activated carbon filtration, and media filtration systems, selecting the appropriate slot opening is essential for achieving the right balance between hydraulic performance and media retention. An improperly selected slot size can lead to excessive pressure loss, uneven flow distribution, media leakage, and increased maintenance requirements.

Why Slot Size Matters in Wedge Wire Header Lateral Systems

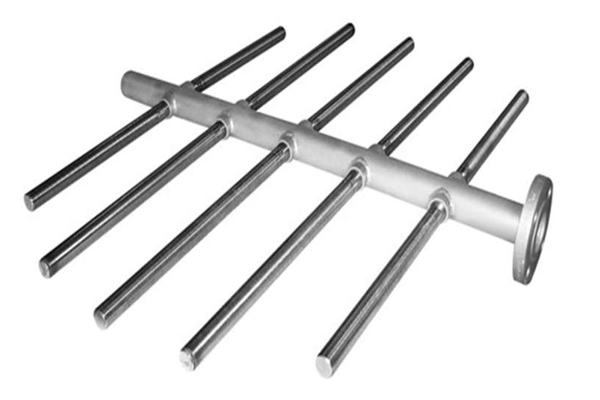

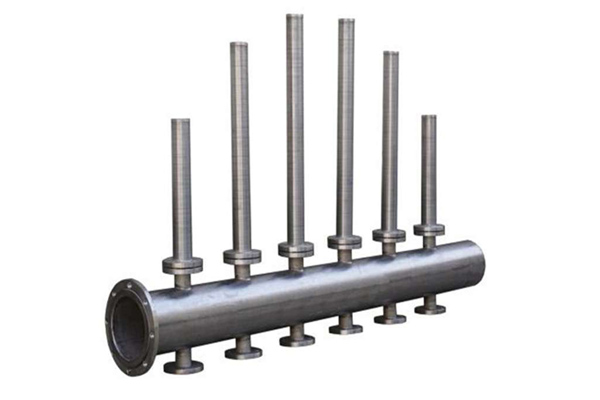

A wedge wire header lateral assembly serves as the collection and distribution component within a filtration vessel. During normal operation, it helps distribute incoming fluid evenly across the media bed or collect filtered water efficiently. During backwashing, it plays a crucial role in delivering reverse flow to clean the filter media.

Because every flow path passes through the slot openings, slot size has a direct impact on how the entire system performs. Proper slot selection helps maintain balanced flow conditions while protecting filtration media from loss or migration.

Slot Size and Open Area

The open area of a wedge wire screen is closely related to slot size.

Larger slot openings generally provide:

Higher flow capacity

Lower hydraulic resistance

Reduced pressure loss

Improved flow distribution

Smaller slot openings typically offer:

Better particle retention

Enhanced media protection

Increased filtration precision

However, excessively small slots may restrict flow and increase the likelihood of fouling. The objective is to select a slot size that provides sufficient open area while maintaining reliable media retention.

Slot Size and Particle Retention

One of the primary functions of a wedge wire header lateral is retaining filtration media while allowing fluid to pass through.

In applications involving:

Ion exchange resin

Activated carbon

Sand media

Catalytic media

the slot opening must be selected carefully to prevent media loss.

A properly sized slot allows fluid to flow freely while ensuring that valuable media remains securely contained within the filtration vessel. If the slot opening is too large, media particles may escape into downstream equipment. If it is too small, unnecessary flow restrictions may occur.

Slot Size and Pressure Drop

Pressure drop is a key indicator of filtration system efficiency.

When fluid passes through smaller openings, resistance to flow naturally increases. This can contribute to:

Higher operating pressure requirements

Increased energy consumption

Reduced system throughput

More frequent maintenance

Selecting an appropriate slot size helps minimize hydraulic losses while maintaining the desired level of filtration performance.

For large industrial filtration systems, reducing unnecessary pressure loss can significantly improve long-term operating efficiency.

Slot Size and Resin Retention

In ion exchange and water softening systems, resin retention is one of the most important considerations.

Resin beads represent a significant investment and are essential for maintaining treatment performance. Improper slot sizing can lead to resin migration, media loss, and reduced treatment efficiency.

When selecting slot openings for resin applications, engineers must consider:

Resin bead size distribution

Operating flow conditions

Backwash requirements

Long-term wear characteristics

Proper slot sizing helps protect the resin bed while maintaining stable hydraulic performance throughout the system.

Flow Distribution and Hydraulic Balance

Uniform flow distribution is critical to the performance of any filtration system.

Slot size influences how water enters or exits the lateral assembly and affects flow balance throughout the vessel. Uneven flow distribution can create:

Channeling within the media bed

Uneven contaminant loading

Reduced media utilization

Localized pressure variations

A properly designed wedge wire header lateral system promotes more uniform flow patterns, helping maximize filtration efficiency and improve overall system performance.

How Slot Size Influences Backwash Performance

Backwashing is essential for maintaining filter media cleanliness and restoring filtration capacity.

During the backwash cycle, reverse flow passes through the header lateral assembly and distributes water throughout the media bed. Slot size affects how effectively this cleaning process occurs.

Proper slot selection can help:

Improve media bed expansion

Enhance contaminant removal

Reduce dead zones within the vessel

Maintain consistent cleaning performance

Combined with the self-cleaning characteristics of V-shaped wedge wire slots, an optimized slot size contributes to longer service intervals and more reliable operation.

Mechanical Strength Considerations

Slot size also influences the structural characteristics of the wedge wire screen.

Very large slot openings may increase open area but can reduce structural rigidity in demanding applications. Conversely, extremely fine slots may require specific wire profiles and support structures to maintain mechanical strength.

When designing a header lateral system, engineers should consider both hydraulic performance and structural durability to ensure reliable long-term operation.

Common Slot Size Selection Mistakes

Selecting the Smallest Possible Slot

Many users assume smaller slots automatically provide better filtration. In reality, excessively fine slots may increase pressure loss and accelerate fouling.

Ignoring Media Characteristics

Media size, shape, and distribution should always be considered when determining slot openings.

Focusing Only on Flow Capacity

Large slot openings may improve flow but can compromise media retention and system performance.

Overlooking Backwash Requirements

A slot size suitable for filtration may not always provide optimal backwash efficiency if cleaning performance is not considered during system design.

Application Example: Ion Exchange Water Treatment System

In an industrial ion exchange system, wedge wire header laterals are commonly used to support and retain the resin bed.

By selecting slot openings that match the characteristics of the resin media, operators can achieve:

Reliable resin retention

Stable flow distribution

Efficient backwashing

Reduced maintenance requirements

Improved long-term system performance

This demonstrates how slot size selection affects not only filtration efficiency but also the overall reliability of the treatment process.

FAQ

What is the primary purpose of slot size selection in a wedge wire header lateral?

Slot size helps balance media retention, flow capacity, pressure loss, and overall filtration performance.

Do smaller slot sizes always improve filtration?

No. While smaller slots improve retention, they can also increase pressure drop and fouling potential.

Why is slot size important for ion exchange systems?

Proper slot sizing helps prevent resin loss while maintaining efficient water distribution and collection.

How does slot size affect backwashing?

An appropriate slot size improves water distribution during backwash cycles, helping remove contaminants and maintain media cleanliness.

Slot size selection is a fundamental factor in the performance of wedge wire header lateral systems. It influences open area, particle retention, pressure drop, resin protection, flow distribution, backwash efficiency, and structural durability. By carefully evaluating process requirements and media characteristics, engineers can select the most appropriate slot size to achieve reliable filtration performance, efficient operation, and long-term system reliability
