Cylindrical screen for inside outside filtration

Cylindrical screen for inside outside filtration

WATER FLOWS FROM INSIDE TO OUTSIDE

Wedge Wire Cylinders and tubes can be designed with slot openings and wires running on the outside surface of screen cylinder & they can be put axially on the inside of the cylinder.

Each intersection of wedge wire and support rod is welded for strength and durability. Various combinations of wire and rod can be used to produce the best screening cylinders and tubes.

Wedge wire cylinders are manufactured for all types of mechanically and air swept cylindrical interstage screens.

Standard diameter cylinders are seamless. Cylinders are flanged together in two & three sections in case preferential wear occurs at different levels in the tank.

Cylinders are custom-made for specific applications taking the aperture size and wedge wire profile as well as diameter, height and flange details into account.

Features of Wedge Wire Screen Cylinder:

-- A continuous slot opening which significantly increases the available open area, which providing a greater access to the water bearing zone.

-- Avoids clogging and guarantees uninterrupted flow.

-- Easy backwashing

-- Long last life

-- Safety and reliability

-- Low comprehensive cost.

Usages of Wedge Wire Screen Cylinder and Tubes

Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

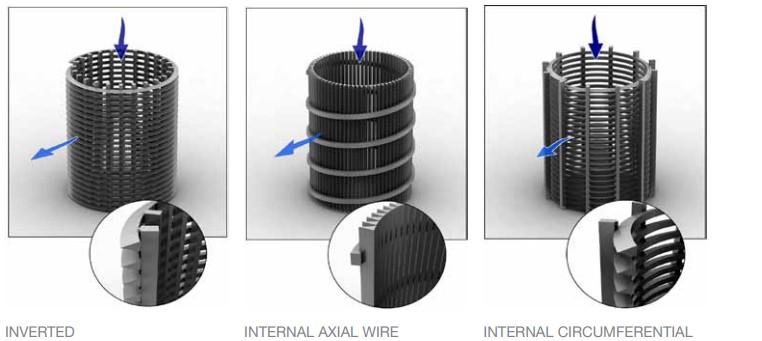

Inverted

External circumferential inverted wire and axial internal support rods.

Benefits:

-- Economical

Applications:

-- Inside-out flow

Internal axial wire (wire-base)

Internal axial wire with external

circumferential support rods.

Benefits:

Smooth internal screen surface

Facilitates cleaning with an internal

axial-movement scraper

The flow moves across the wire

edges for effective dewatering

Products:

Trommel screens with internal feed

Systems with an internal rotor & screw

Dewatering systems

Baskets

Automatic filters

Internal circumferential wire(re-rolled)

Internal circumferential wire with external

axial support rods.

Benefits:

Smooth internal filter surface

Custom inner diameter

Products:

Screw press
