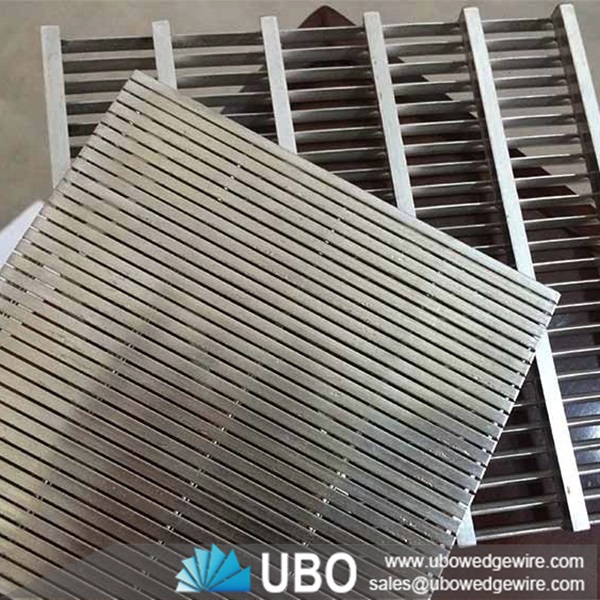

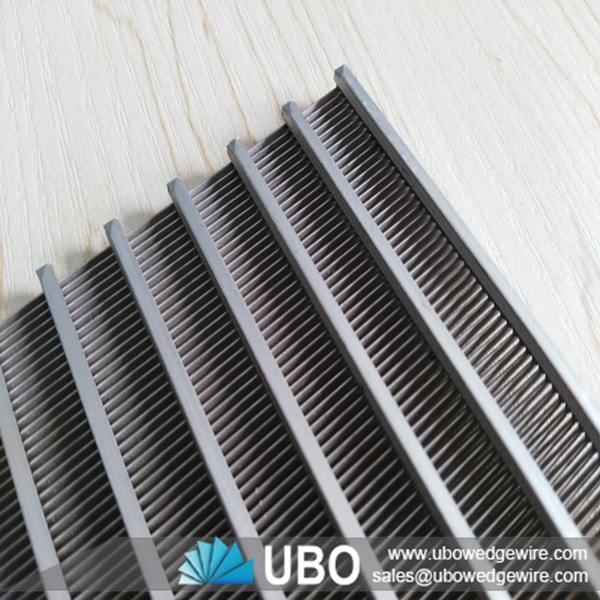

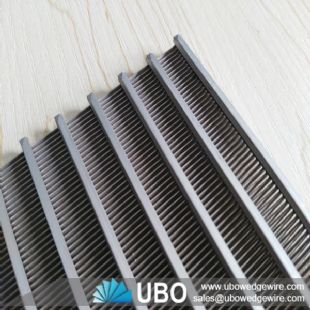

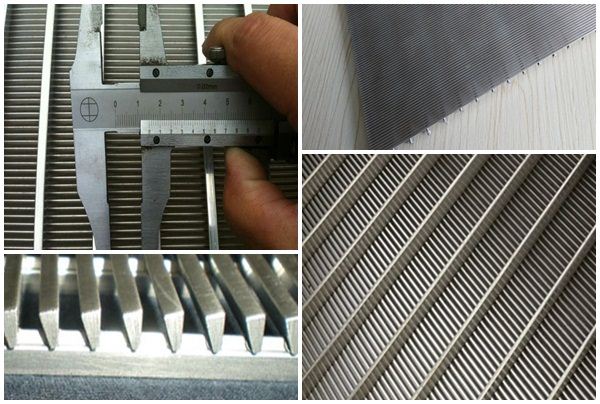

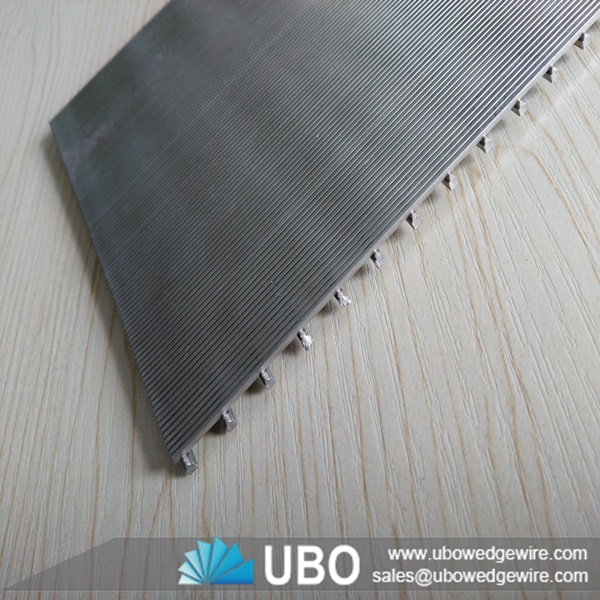

welded flat wedge wire screen

Welded flat wedge wire screen are the most widely used type of Wedge Wire Screens mainly in the mineral processing both for stationery as well as vibratory decks. Flat panels manufactured by UBO Company are most dependable for effective sizing or classifying as they have accurate bar spacing from as low as 0. 0 2 mm to 4.5mm at interval of 0. 0 2 mm. Because of Looped construction they probably have the highest strength for any particular size and are self supporting and do not require support for long distances. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures. The panel can be made with any type of fitment as per the requirement of the customers and for particular machines i.e.

The welded flat wedge wire screen have continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening. And the products are made by continuously winding a wrap wire onto a frame of support rods. This is done on precision built, electronically controlled machinery which ensures consistently high strength, precise slot openings and product durability.

Features of welded flat wedge wire screen

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Application of welded flat wedge wire screen

Welded flat wedge wire screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

Slot size (mm): 0.025mm 0.10, 0.15, 0.2, 0.25, 0.30-3mm
Open area: up to 60%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.) Lengths up to 6 meters
Diameter: ranging from 25 to 800mm
End connection: plain beveled ends for butt welding or threaded
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm): 0.2、0.25、0.50、0.75、1.00、1.50、2.00、3.00 and so on.
