stainless steel slot screen
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,316,316L |
Properties: | wedge wire screen |
Application: | filtration,water treatment,liquid filter |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

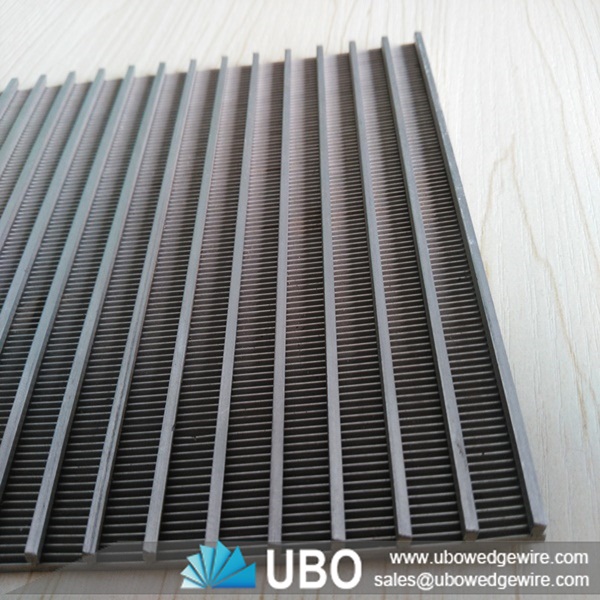

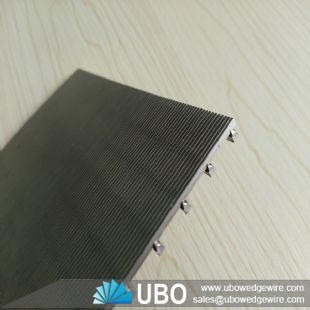

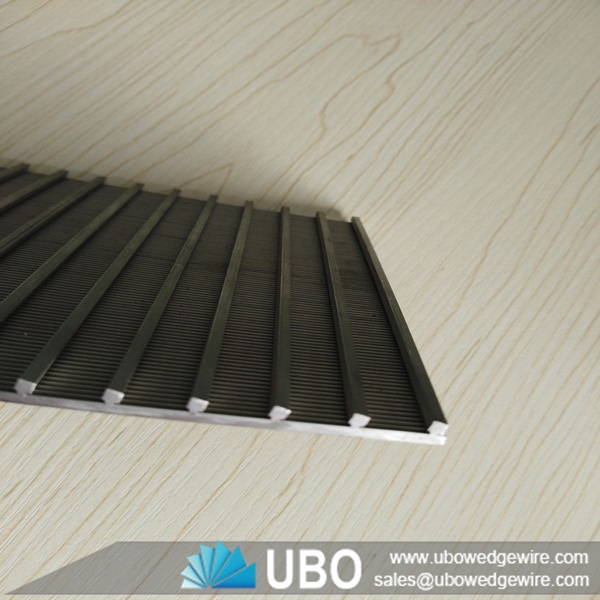

Details of stainless steel slot screen
Stainless steel slot screen is the wedge wire screen in panel type. The panels offer a perfectly flat and smooth surface with rectangular openings. They are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid/liquid and solid/gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
Features of stainless steel slot screen
1. Continuous slot screens are often the best choice for use in unconsolidated sand and gravel aquifers.
2. They are constructed by winding and attaching a triangular strand of wire around a set of vertical rods.
Applications of stainless steel slot screen
stainless steel slot screen can be used for wide range of applications such as food processing such as malting, floor grating, wall covers and ventilating systems.
Specifications of stainless steel slot screen:
Thickness: as per customer's requirement
Length: max:6m
Width: as per customer's requirement
profile wire: 1.5*2 2*3 (mm)
support rod: 2*3 3*5 4*6 (mm)
slot gauge: min 0.02 (mm)
grad |
back width (mm) |
aperture width (mm) |
higher |
2 |
0.5 |
medium |
2.0-2.5 |
0.5-3 |
lower |
2.0-2.5 |
> 3 |
Packaging and Transportation of stainless steel slot screen:
Packaging Details: Wooden Box or as request
Delivery Detail: 25 days and according to the order quantity
