Wedge Wire Flat Well Screen Panel

More Views

Wedge Wire Flat Well Screen PanelWedge Wire Flat Well Screen PanelWedge Wire Flat Well Screen Panel

Wedge Wire Flat Well Screen Panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Flat Well Screen Panel

Flat screens are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications

Application for Wedge Wire Flat Well Screen Panel:

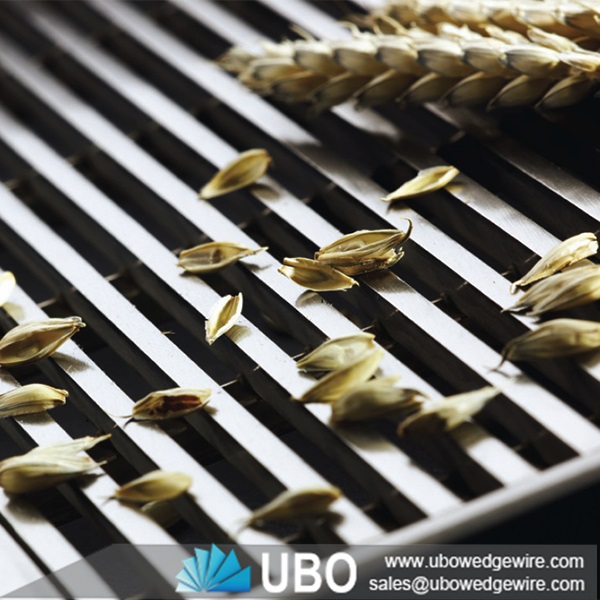

The flat panel screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Characteristic for Wedge Wire Flat Well Screen Panel:

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Advantages for Wedge Wire Flat Well Screen Panel:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

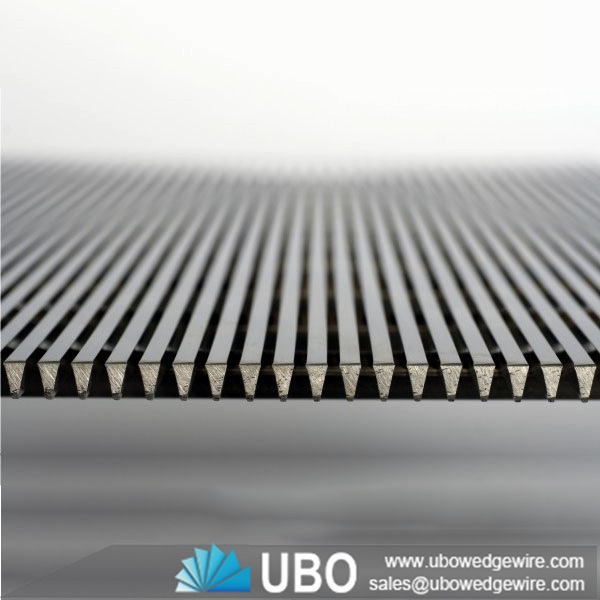

A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Wedge Wire Flat Wedge Wire Well Screen Panel

Specifications of Wedge Wire Flat Well Screen Panel:

Wedge Wire Flat Wedge Wire Well Screen Panel

V-Wire Wrap Water Well Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Packaging and Transportation of Wedge Wire Flat Well Screen Panel:

Wedge Wire Flat Wedge Wire Well Screen Panel
