V-Wire Flat Screen Panel

More Views

V-Wire Flat Screen PanelV-Wire Flat Screen PanelV-Wire Flat Screen Panel

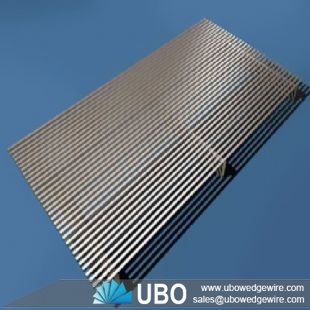

V-Wire Flat Screen Panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application: water well screen ,liquid filtration,solid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V-Wire Flat Screen Panel

V-wire flat screen panels are manufactured to the highest standard using quality stainless steel Wedge Wire. We deliver high open area screens built for purpose. The combination of quality workmanship, superior materials, accurate slots and high open areas ensures that our panels meet the needs of the most demanding applications.



Advantage of V-wire Flat Screen Panel



1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

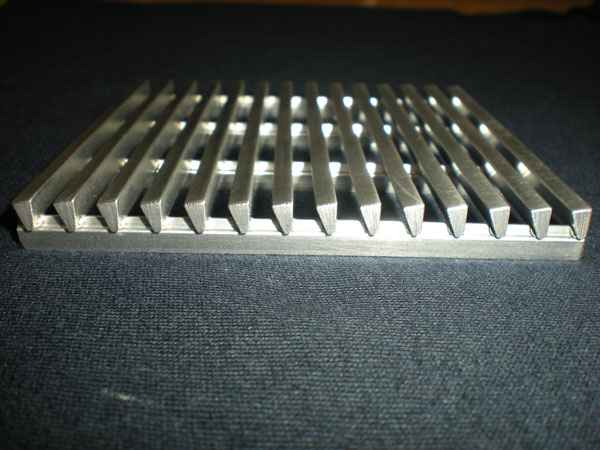

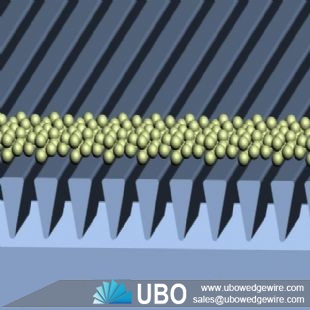

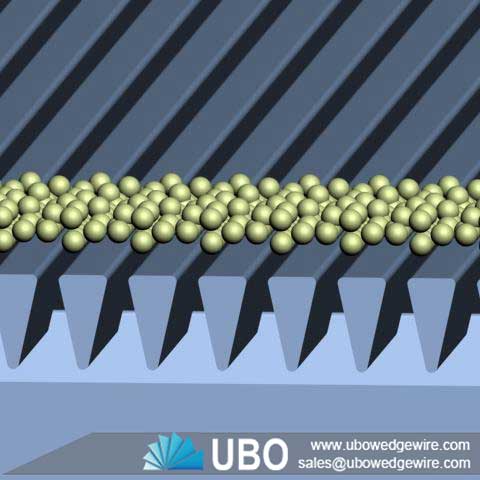

2) A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.



Usages of V-wire Flat Screen Panel



Used in oil industry and slop vibration sifting.

Variety: Single layer vibrating screen; double layer vibrating screen, wave type vibrating screen, high efficiency vibrating screen.

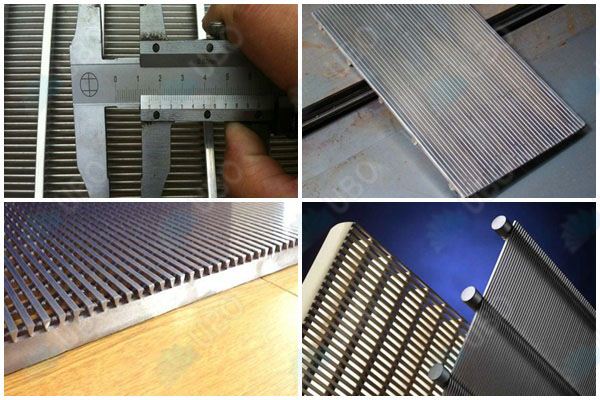

     v-wire flat screen panel

Specifications of V-Wire Flat Screen Panel:

Material: low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.

Slot (mm): 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.

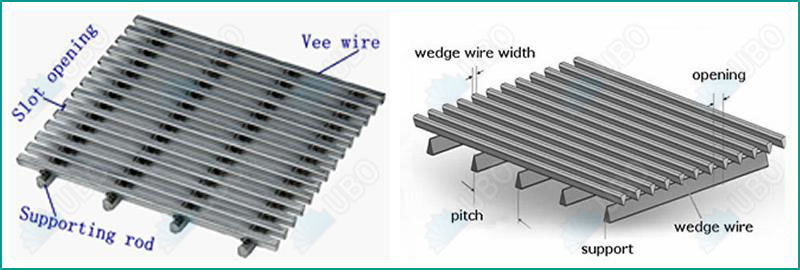

Profile Wire: #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.

Support Rod:

1) V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.

2) Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.

Frame: Iron Frame, Steel Frame, or Nothing.

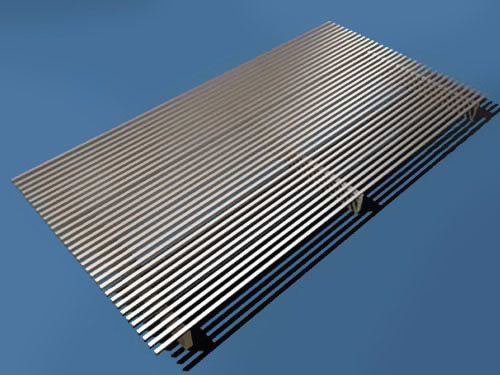

wedge wire screen panel

Packaging and Transportation of V-Wire Flat Screen Panel:

 packing
