Stainless Steel wedge wire lauter tun screen panel for beer equipment
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | lauter tun screen |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

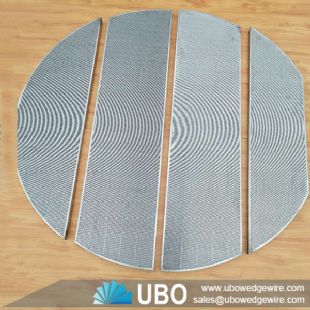

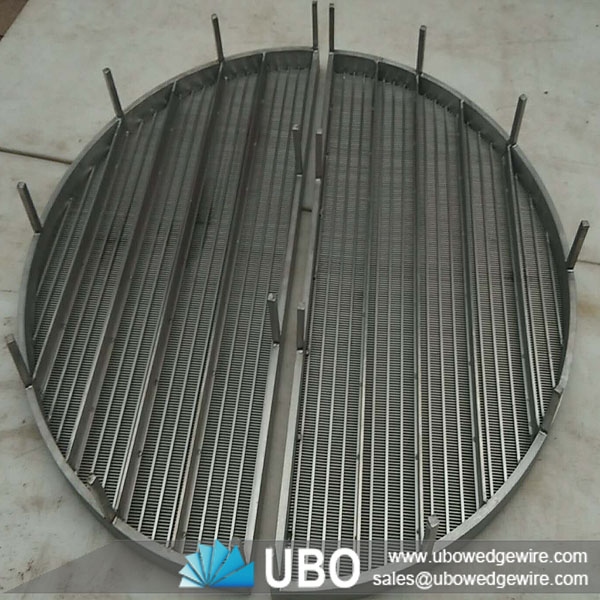

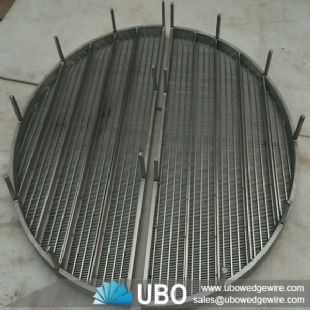

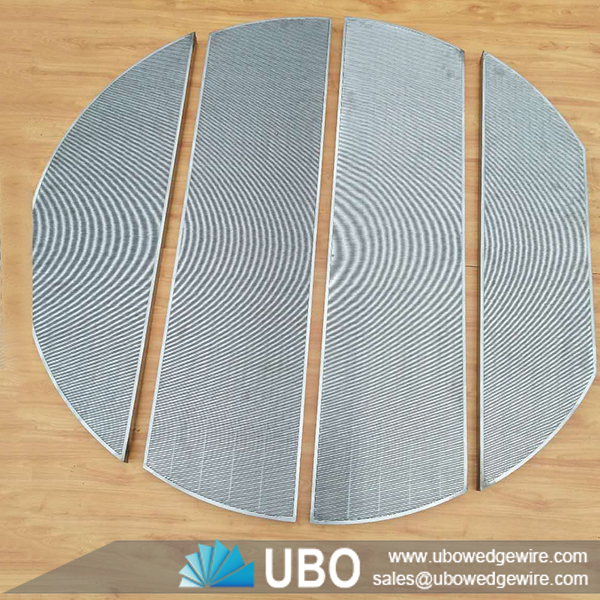

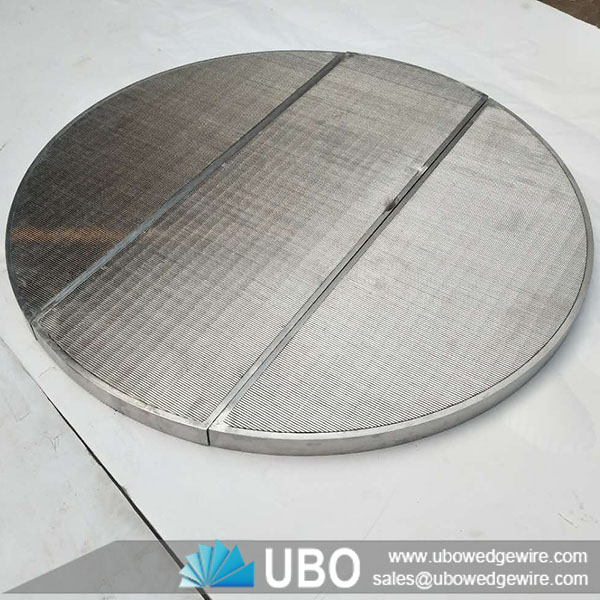

Details of Stainless Steel wedge wire lauter tun screen panel for beer equipment
The Stainless Steel wedge wire lauter tun screen panel is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine, then be made to screen panel through cutting and edge welding. Each profile wire and support rod is welded by resistance welding. It generally made of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.

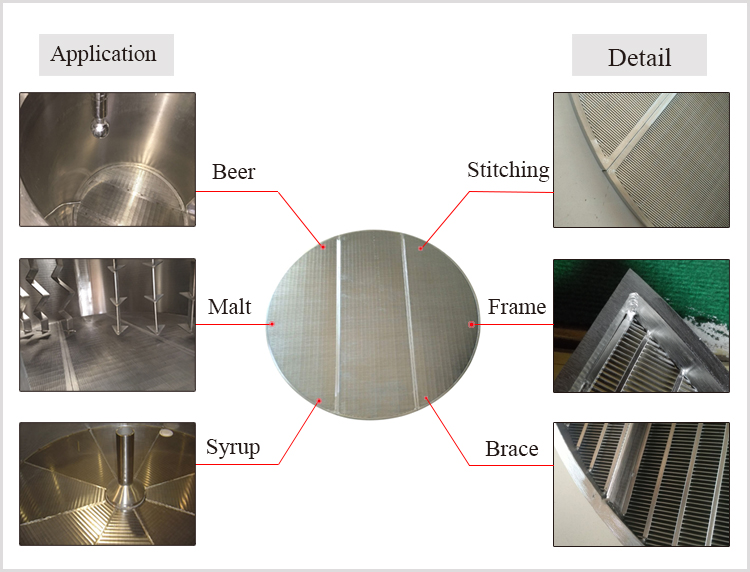

Application of Wedge Wire wedge wire lauter tun screen panel for beer equipment
The stainless steel wedge wire lauter tun screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.
Characteristic of Stainless Steel wedge wire lauter tun screen panel for beer equipment
1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.
Specifications of Stainless Steel wedge wire lauter tun screen panel for beer equipment:
Material: |
stainless steel (304,316etc.) |
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 |
|
Round : 2.50mm -- 6.0mm |
|
Diameter ranging |
from 1 inch -----45 inch. |
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
Note: Other specifications can be customized according to your requirement |
Packaging and Transportation of Stainless Steel wedge wire lauter tun screen panel for beer equipment:
