Stainless Steel Wedge Wire Flat Panel Screens

More Views

Stainless Steel Wedge Wire Flat Panel ScreensStainless Steel Wedge Wire Flat Panel ScreensStainless Steel Wedge Wire Flat Panel Screens

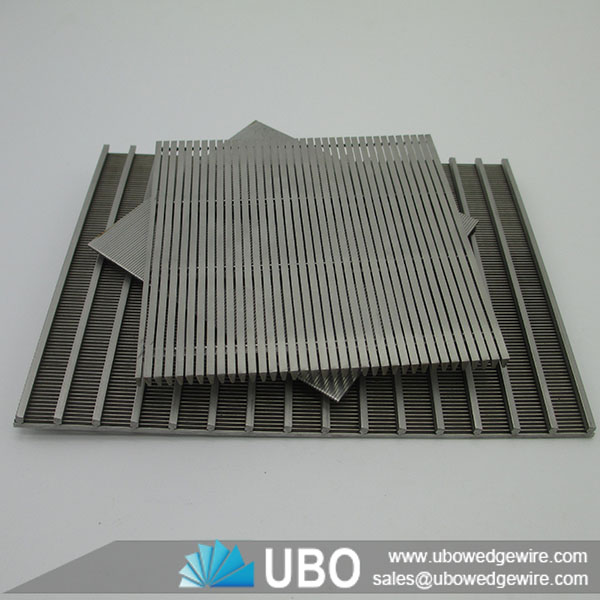

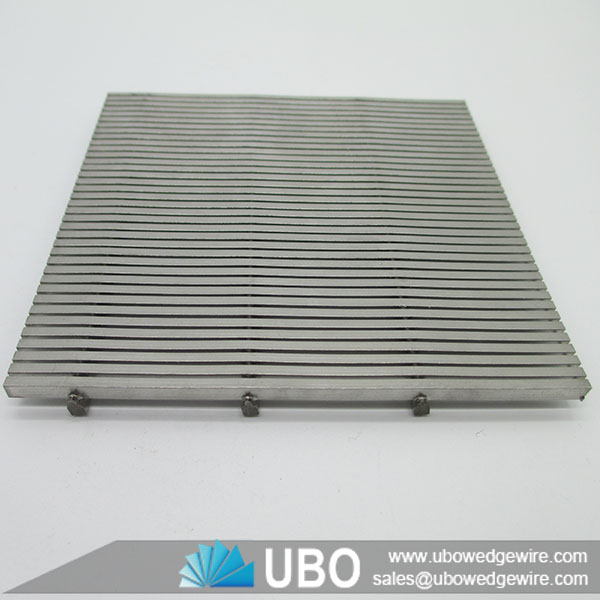

Stainless Steel Wedge Wire Flat Panel Screens

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or upon request.
Properties:flat wedge wire screen panel
Application:water-treatment, beer brewing, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Flat Panel Screens

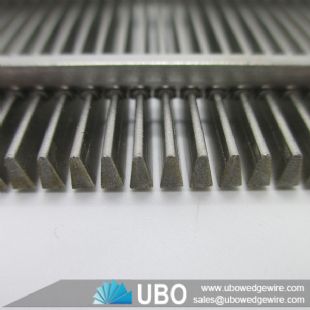

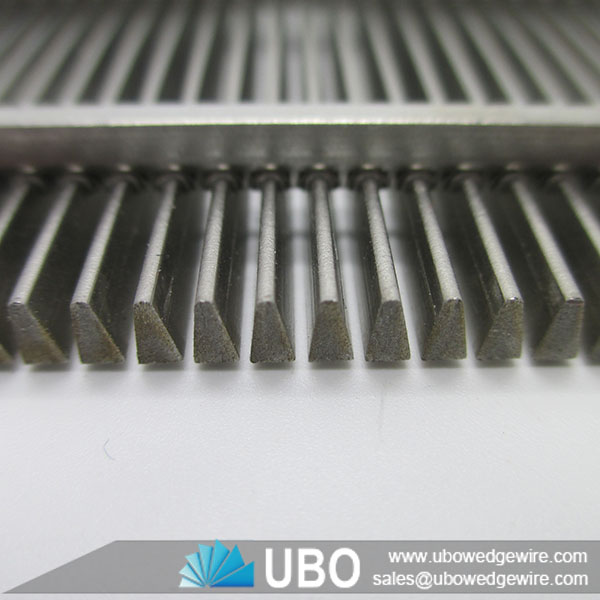

Stainless Steel wedge wire flat panel screens are manufactured by welding special profiled working wires to support wires at an angle of 90 degrees.
A precise slot is achieved by applying modern welding technology on working wires and support s wires. The result is a rigid screen construction capable of withstanding heavy loads with a great resistance.

Innovation solutions of technology allow

to control quality of welding.
to use various working wires.
to design various slot sizes in one screen.
to design various support wires in one screen.
various distance between supports in one screen.
to gain superior flatness of sieves (no corrugation of working wires between support wires).

Stainless Steel wedge wire flat panel screens

Stainless Steel wedge wire flat panel screens

Stainless Steel wedge wire flat panel screens

Features of Stainless Steel Wedge Wire Flat Panel Screens


No-clogging structure.
High-precision slot space & high slot opening ration.
High abrasion and corrosion resistance.
Low pressure drop.
Mechanical strength construction.
Bespoke specification for specific machines & uses.
Diverse apertures & profiles supplied.
Self-cleaning effect.
Smooth & flat surface.

Applications of Stainless Steel Wedge Wire Flat Panel Screens

Industrial filtration.
Food processing.
Petrochemical.
Mineral and aggregate processing.
Water treatment.

Stainless Steel wedge wire flat panel screens

Stainless Steel wedge wire flat panel screens

Specifications of Stainless Steel Wedge Wire Flat Panel Screens:

Stainless Steel wedge wire flat panel screens

Item Name:  Wedge Wire Screen Panel
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width:
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized

Packaging and Transportation of Stainless Steel Wedge Wire Flat Panel Screens:

Stainless Steel wedge wire flat panel screens
