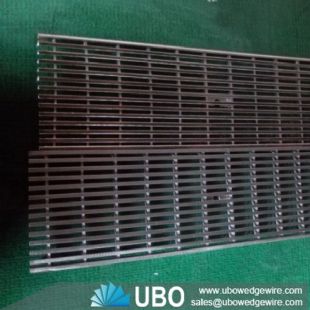

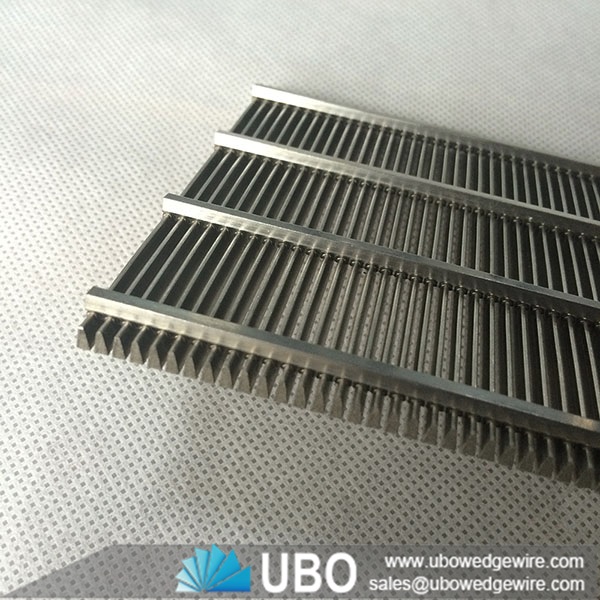

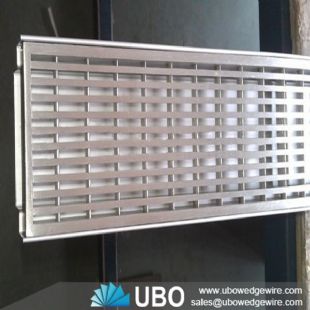

Rod Based Continuous Slot Welded Wedge Wire Screen

More Views

Rod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire Screen

Rod Based Continuous Slot Welded Wedge Wire Screen

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Rod Based Continuous Slot Welded Wedge Wire Screen

Water slot wedge wire screen panels are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Application for Rod Based Continuous Slot Welded Wedge Wire Screen:

Wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Features for Rod Based Continuous Slot Welded Wedge Wire Screen:

1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Advantage for Rod Based Continuous Slot Welded Wedge Wire Screen:

1) Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.

4) Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements.

Rod Based Continuous Slot Welded Wedge Wire Screen

Specifications of Rod Based Continuous Slot Welded Wedge Wire Screen:

Rod Based Continuous Slot Welded Wedge Wire Screen

Water slot wedge wire screen panel

Material

AISI304/316/316L,Galvanized low carton

Wedge Wire(mm)

Width :1.50 1.80 2.30 3.00 3.30 3.70

Height :2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod (mm)

Width :2.30 3.00 3.30 3.70



Height :2.70 3.60 4.70 5.60 6.30



Round : 2.50mm --6.00mm

Slot /opening size

0.10--6.00mm,also can be customized as your request.

Length /Width

Can be customized ad your request

Width

25mm--1200mm

Packaging and Transportation of Rod Based Continuous Slot Welded Wedge Wire Screen:

Rod Based Continuous Slot Welded Wedge Wire Screen
