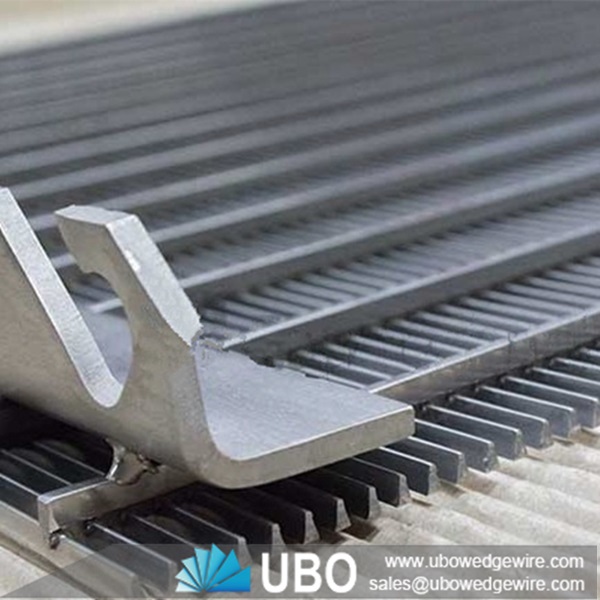

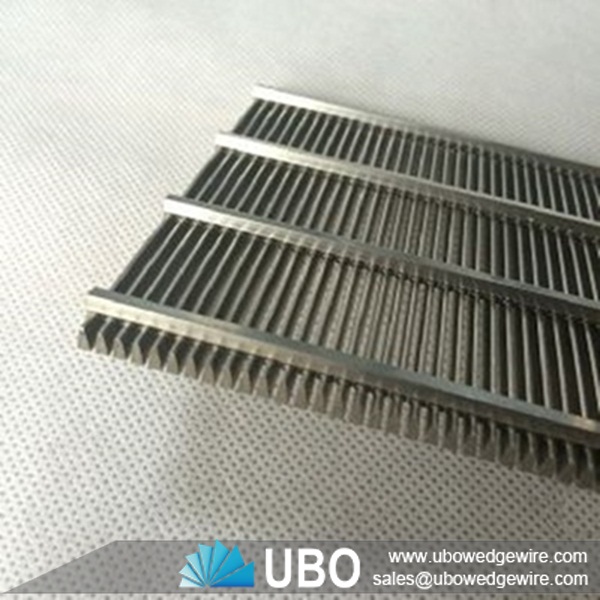

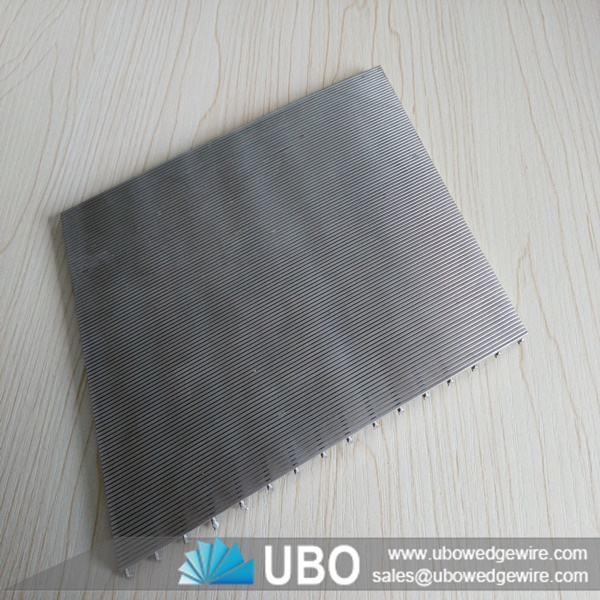

Flat wedge wire screen panel

More Views

Flat wedge wire screen panelFlat wedge wire screen panelFlat wedge wire screen panel

Flat wedge wire screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Flat wedge wire screen panel

Flat wedge wire screen panel  is used for filtrating solid from liquid.
Size of slot hole is producred by customer's requirement.Slot hole from 0.1mm-5mm.
Material of Stainless steel wire mesh wedge wire screen contain: stainless steel 304, stainless steel 316L, and so on.

Flat wedge wire screen panel

Application of Flat wedge wire screen panel

Flat wedge wire screen panel  is widely used for wine-making, malting, paper making, mining, cement producing, food processing, oil-refining, painting as well as the industries of cigarete, sugar, foodstuff, noise silencer, environmetal protection, agricultural machine, chemical industry and pharmacy industry.

Characteristics of Flat wedge wire screen panel

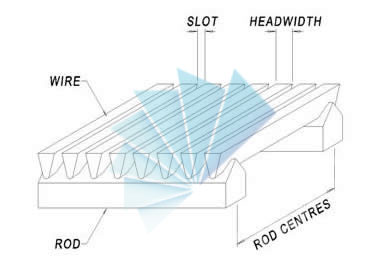

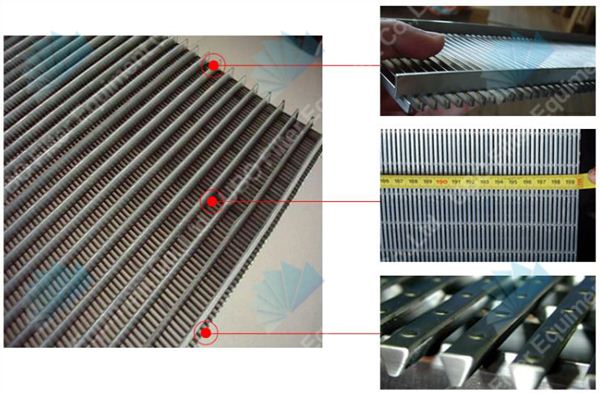

The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantage of Flat wedge wire screen panel

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Flat wedge wire screen panel

Specifications of Flat wedge wire screen panel:

Flat wedge wire screen panel

Material:

AISI304/316.



Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Opening

0.50 -- 6.00mm ,also can be customized as your request.



Pitch

10mm--35mm



Length

Max 6 meters.



Note: Other specifications can be customized according to your requirement.



Packaging and Transportation of Flat wedge wire screen panel:

transportation
