wedge wire screen sieve basket

More Views

wedge wire screen sieve basket

Category:Wedge Wire Screen Basket
Material:stainless steel
Properties:wedge wire screen
Application:solid filter,industry application

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

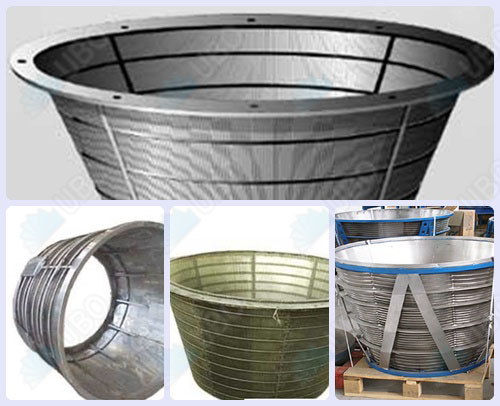

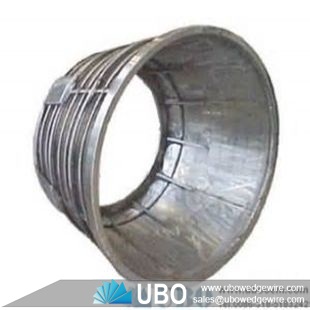

Details of wedge wire screen sieve basket

wedge wire screen basket equipment of key components, screen basket is mainly used in centrifugal machine dehydration, widely used in coal, chemical industry, metallurgy industry, etc. Screen basket is one of the key components of centrifugal machine, high speed rotating parts is, not only to withstand vibration sieve basket load, but also bear coal, water serious impact, so the strength and the accuracy is higher.

Characteristics of wedge wire screen sieve basket

1.More open area
2.Precise openings
3.Maximum design flexibility
4.Stronger and more durable, economical
5.Easier installation and long-term operating etc

Use of  wedge wire screen sieve basket

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection, metallurgy, chemical, pharmaceutical, and other industries.

                       screen basket

wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral etc. Welcome to contact us for more information and cooperation.0086-0311-83289301



Specifications of wedge wire screen sieve basket:

Material: 304,316,304L,316L stainless steel wire etc
Wedge Wire Profiles: 1.5*2.2mm, 1.5*2.5mm etc
Sieve Slit Width: 0.1mm-5mm
Support Bars: 2.3*2.7mm, 2.3*3.6mm etc
Support Bars Pitch: 1.5-3cm
Length: can be customized
Width: can be customized

screen basket

Dimensions
size 1
 6.5" diameter × 13.04/13.38" length
(dependent on end fitting)1.65 sq.ft. of filter media
size 2
6.5" diameter × 24.85/25.19" length
(dependent on end fitting) 3.3 sq.ft. of filter media
Maximum Flow Rate
200 GPM @ 3PSID celan pressure drop using a 10 micron
PPBI basket.(flow chart for water, hydraulic, and lube oil on back)
Burst Pressure
100 PSI
Operating Temperature
-60 °F to 400  °F

Packaging and Transportation of wedge wire screen sieve basket:

 Packaging Details: wooden case or according to your requirement

Delivery Detail: 30 days after getting dowm payment or according to contract

screen basket
