Quality Wedge Wire Screen Manufacturer in China

industry screen basket

More Views

industry screen basket

Category:Wedge Wire Screen Basket
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:industry filtration, coal

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

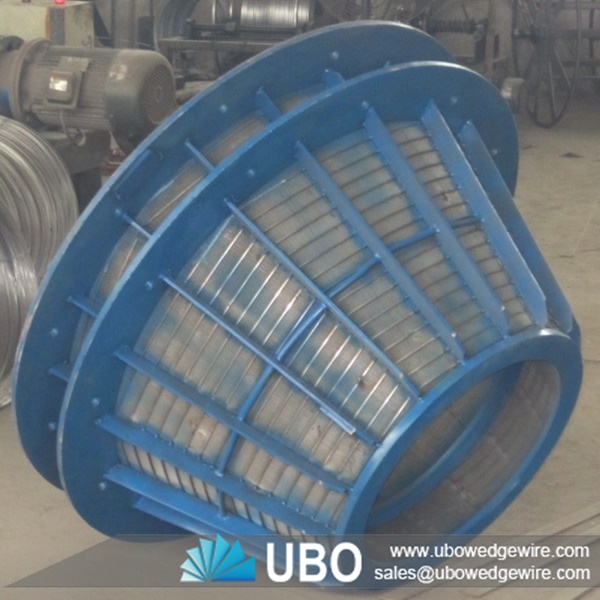

Details of industry screen basket

The industry screen baskets are manufactured using high quality stainless steel wedge wire and carbon steel flanges and frames. The unique centrifuge basket designs combine our specially selected wedge wire profiles with our field proven support frame and stringent manufacturing standards allowing us to produce top quality baskets that work well and are robust.

The combination of high quality materials, accurate apertures and maximum open areas ensures that the Centrifuge Basket provides you with optimum dewatering and low wear characteristics.

Each of the baskets is dynamically balanced to ensure smooth operation and protection of your centrifuge machines.

Characteristics of industry screen basket

The benefit of Wedge Wire Screen is more open area, have very precise openings, maximum design flexibility, stronger and more durable, economical, easier installation and long-term operating.

Application of industry screen basket

wedge wire baskets are designed to withstand the stresses of centrifugal dryer system.

          industry screen basket

Specifications of industry screen basket:

Materials:
Stainless steel wire, steel wire, iron wire, galvanized wire .

Specification:

Triangle wire size:

Triangle wire Width 1.5mm 2.2mm 2.8mm 3.1mm 3.4mm 5.0mm
height 4.0mm 4.5mm 5.0mm 6.0mm 7.5mm 10.0mm
Slot 0.10mm-10mm

Support rod size:



Support rod Width 1.0mm 1.5mm 1.8mm 2.7mm 3.2mm 3.6mm
height 2.0mm 2.5mm 3.0mm 4.2mm 5.3mm 5.7mm
Slot 0.2mm-5mm

Packaging and Transportation of industry screen basket:

industry screen basket
