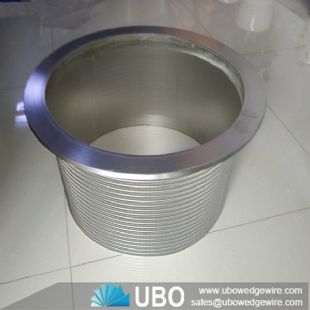

Pressure screen stainless steel wedge wire screen basket

More Views

Pressure screen stainless steel wedge wire screen basketPressure screen stainless steel wedge wire screen basketPressure screen stainless steel wedge wire screen basket

Pressure screen stainless steel wedge wire screen basket

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Pressure screen stainless steel wedge wire screen basket

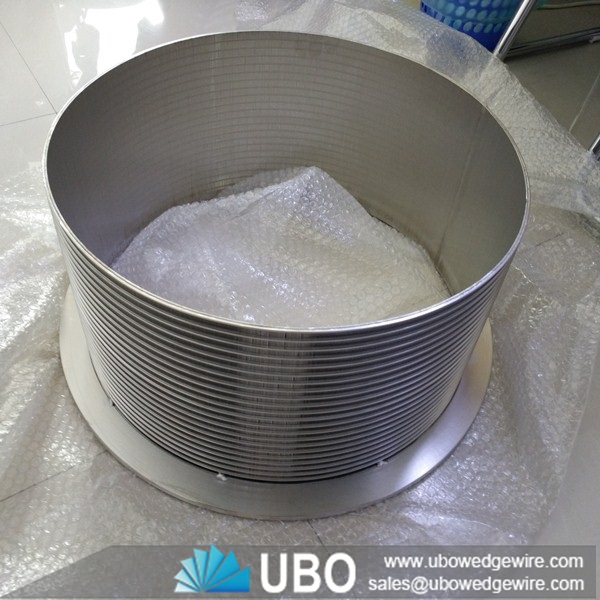

Pressure screen stainless steel wedge wire screen basket
UBO are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, hole screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.

Pressure screen stainless steel wedge wire screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.

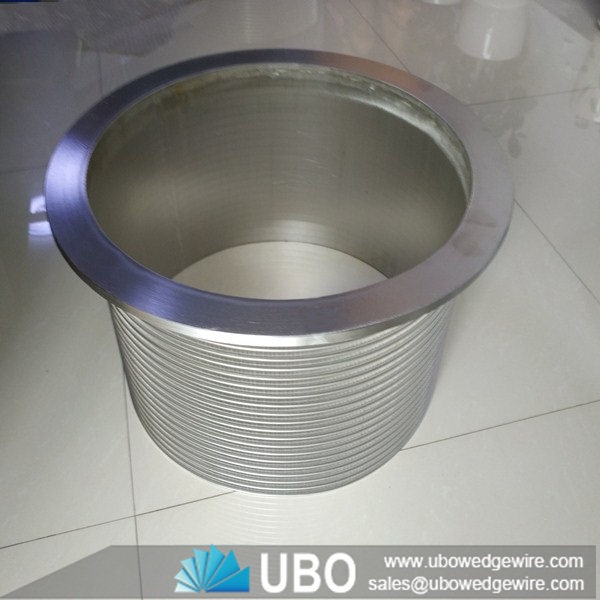

Pressure screen stainless steel wedge wire screen basket

Advantages of Pressure screen stainless steel wedge wire screen basket

Maximum effective flow area and maximum operating efficiency are maintained throughout service life.
Maintenance costs are reduced drastically due to reduced clogging and stapling of fibrous material.
Long-lived straining element provides reduced operating costs over entire service life.
Rigid element prevents flexing which can cause premature element failure.
Efficient, effective debris collection at media/screen interface.
We can also make manufacture according to your detail specifications and we assure that we will give you the best services.
If you are interested in our products please feel free to contact us and your inquiry will meet with our careful attention.

Application of Pressure screen stainless steel wedge wire screen basket

- Separating;
- Sizing;
- Straining;
- De-watering;
- Filtering;
- Drying;
- Water intake;
- Media retention.

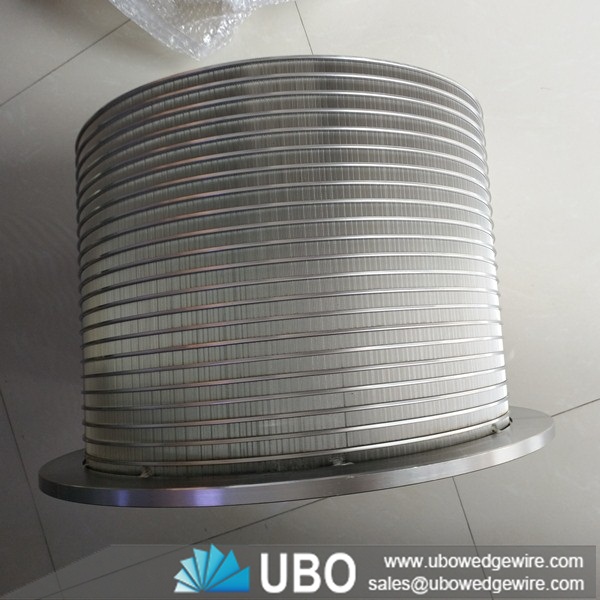

Pressure screen stainless steel wedge wire screen basket

Specifications of Pressure screen stainless steel wedge wire screen basket:

Pressure screen stainless steel wedge wire screen basket

Material

   Galvanized low carton (LCG), Stainless steel(SS)

Wedge Wire (mm)

   Width : 1.50 1.80 2.30 3.00 3.30 3.70

   Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00



Support Rod (mm)



   Width : 2.30 3.00 3.30 3.70

   Height : 2.70 3.60 4.70 5.60 6.30

   Round : 2.50mm -- 6.0mm

Slot Size

   0.02 -- 6.00mm ,also can be customized as your request.

Length

   Max 6 meters.

Out Diameter

   25mm -- 1200mm.

End connection

   Plain beveled ends, flanged or threaded couplings

Note: Other specifications can be customized according to your requirement.

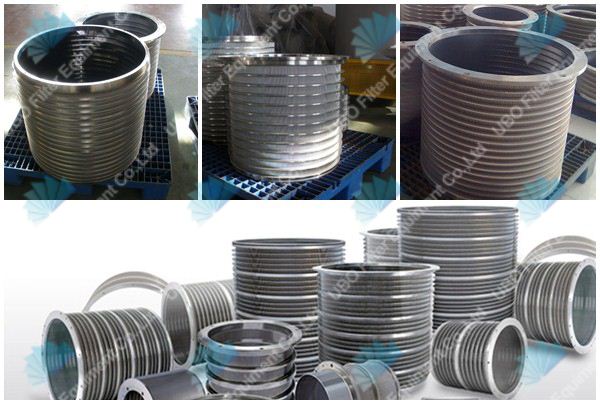

Packaging and Transportation of Pressure screen stainless steel wedge wire screen basket:

transportation
