welded wire resin trap for filtration

More Views

welded wire resin trap for filtrationwelded wire resin trap for filtrationwelded wire resin trap for filtration

welded wire resin trap for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of welded wire resin trap for filtration

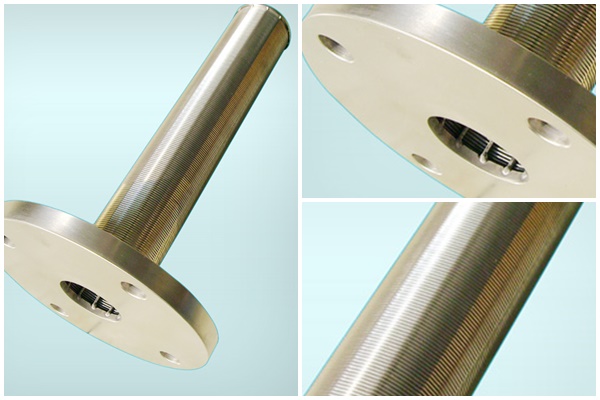

The welded wire resin trap is normally a slot tube, but can also be a cylinder. A welded wire resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.
Principle: A resin trap normally serves to retain particles in a process flow. The quantity of particles is normally very low, so that cleaning can be done during flow interruption.

Charakteristics of welded wire resin trap for filtration

The screen area consists of wedge shaped wires welded to crosswise profiled wires; the accuracy of the aperture width, totally smooth upper active screen area, high stability, high stress ability and long lifetime of the screen area; it is possible to select the profile of the wedge wire according to the characteristics and abrasion characteristics of the sorted material

Application of welded wire resin trap for filtration

A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.
Advantages: very precise slots for perfect particle retention combined with minimum obstruction of the process flow. Flexibility in design. Strong construction (self supporting). Large open area. Plug-resistant slot design.

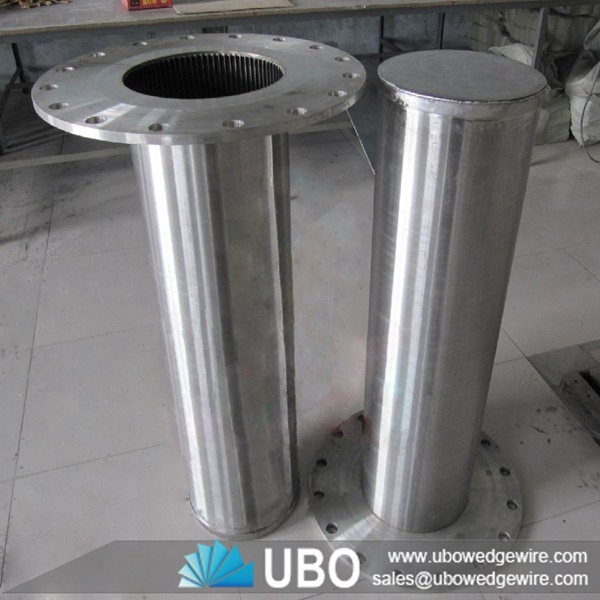

welded wire resin trap for filtration

Specifications of welded wire resin trap for filtration:

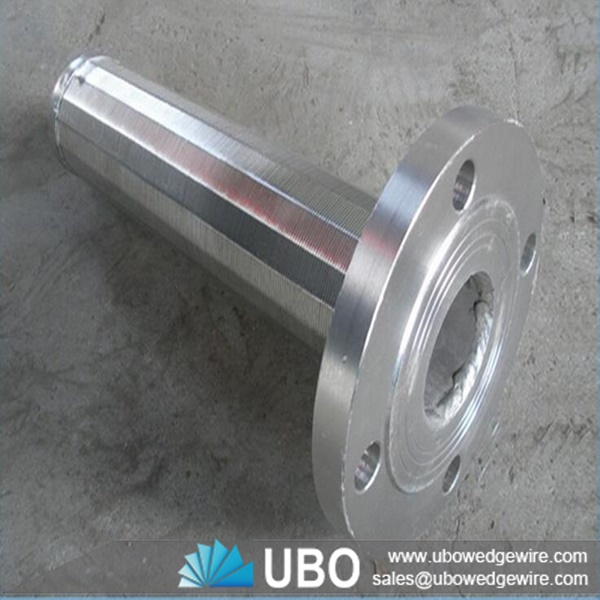

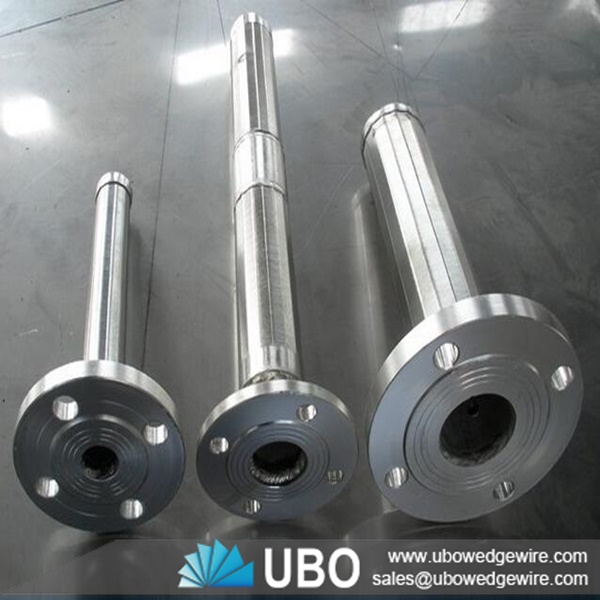

welded wire resin trap for filtration

                              Material:stainless steel

                              Type:resin trap(with flange)

Type Slots mm ΦA Flange  L1mm
AM1 0.05, 0.1, 0.2,  0.3, 0.5,  1.0 45, 57, 76, 89, 108, 133, 159, 219 40,   50,   65,   80,  100, 125,  150,  200 442,  496,  547,  600,  654,  705,  758,  812,  863,  916,  970,  1021,  1074, 1128, 1179, 1232, 1286

The special specification according to your requirement. Hope your inquiry.

Packaging and Transportation of welded wire resin trap for filtration:

packing

transportation
