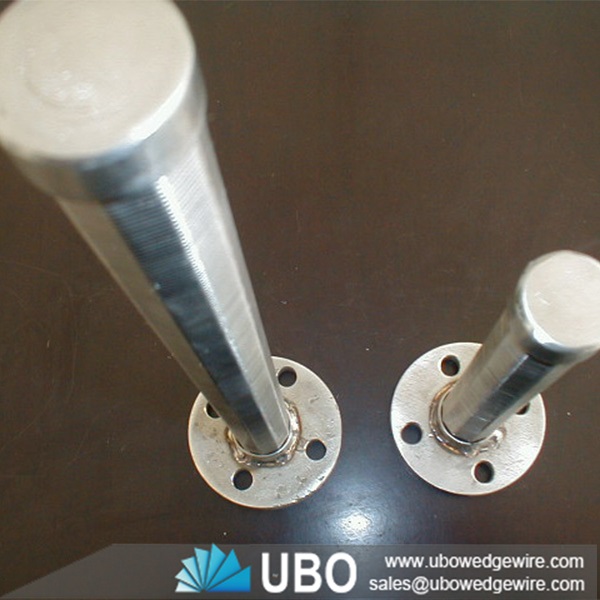

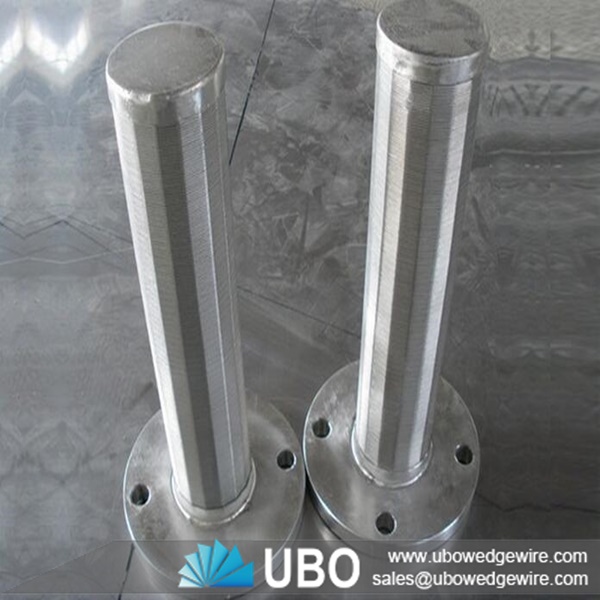

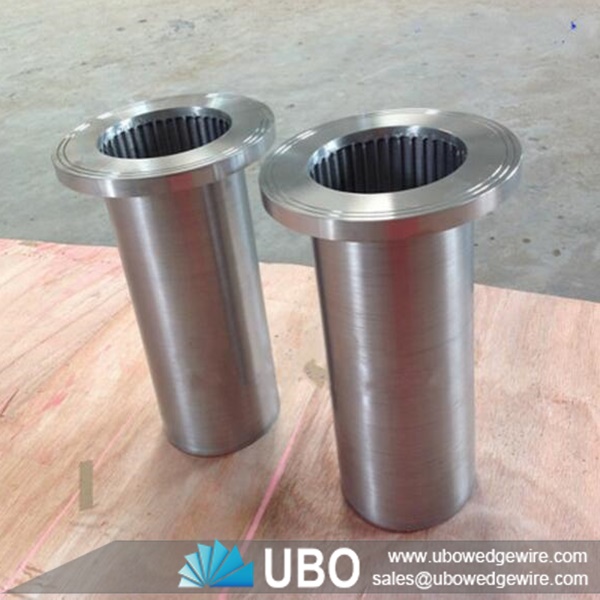

welded wire candle screen pipe for filtration

The welded wire candle screen pipes are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application.

Features of welded wire candle screen pipe for filtration

Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained.
Costly downtime for cleaning plugged screens is minimize.

Application of welded wire candle screen pipe for filtration

wedge wire screen resin traps connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications

• Raw material:SS321,SS304,SS316,SS316L,TaGr2,Low carbon,Hastelloy-C alloy Stainless steel wedge wire screen.
• Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,
• Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
• Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,
• Length: 0.05m-6m,
• OD: 25mm to 800mm,
• Surface treatment: polishing , chroming.
• Flange:as your special request
