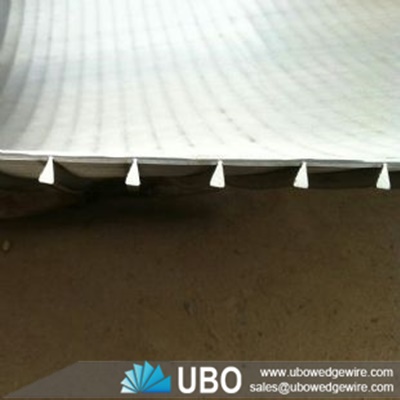

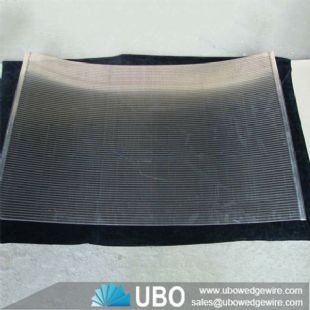

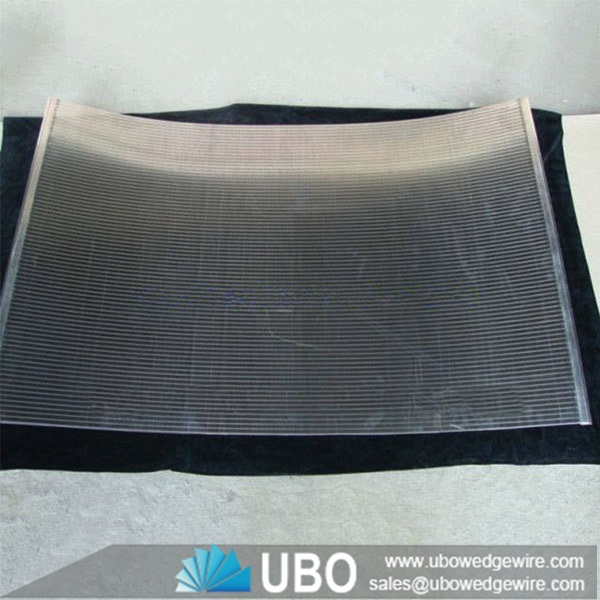

wedge wire sieve bend screen for filtration

More Views

wedge wire sieve bend screen for filtrationwedge wire sieve bend screen for filtrationwedge wire sieve bend screen for filtration

wedge wire sieve bend screen for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire sieve bend screen for filtration

The wedge wire sieve bend screen is also known as a DSM Screen after the Dutch State Mines introduced the product. Sieve Bend Screens are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.

Wedge wire sieve bend screen can be manufactured in a variety of widths, arc lengths, apertures or wedge wires to suit the flow rate and material being separated. Although most applications require Static Sieve Bends, “Cross Flow”, “With Flow” and “Vibrating” Sieve Bends can also be manufactured.

The feed slurry is directed vertically and tangentially over the full width of the upper screen surface. The slurry flows down the concave surface at right angles to the openings between wedge profiled wires. Due to the drag on the slurry passing over the wedge wire, a thin layer on the underside is deflected and passes out between the wires. The fact that the size of particle passing through the screen is always smaller than the openning, gives the screen good non-clogging properties.

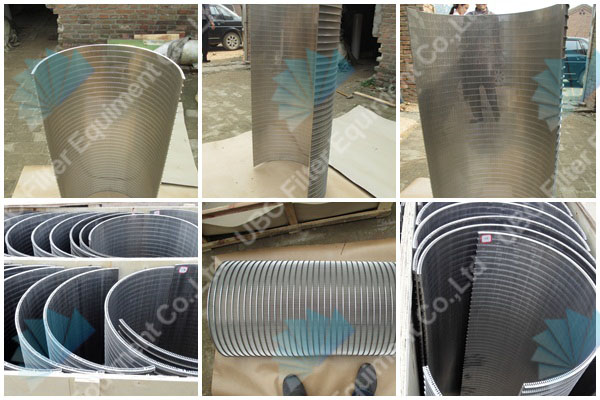

wedge wire sieve bend screen for filtration

Feature of wedge wire sieve bend screen for filtration

Low Headroom.
Energy And Space Efficient .
Corrosion Resistance.
Quiet Operation.
Accurate Sizing
Low Maintenance
Easy Screen Replacement
Long Using Life.

Application of wedge wire sieve bend screen for filtration

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a prefilter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

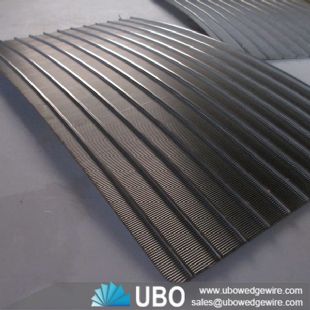

wedge wire sieve bend screen for filtration

Specifications of wedge wire sieve bend screen for filtration:

Size: Width 2000 mm x 1885 mm arc length X Angle 120°
Aperture/ Slot: 0.50 mm
Profile wedge wire: 1.8 mm x 4.5 mm
Support bar: 2 mm x 9.5 mm

Profile Wire Width Relief Angle Typical Support Rod
1/16”  (.063”) 13 degrees Small round rod
3/32”  (.093”) 13 degrees Round or Rectangular bar
1/8” (.125”) 13 or 5 degrees Round or Rectangular bar


wedge wire sieve bend screen for filtration
