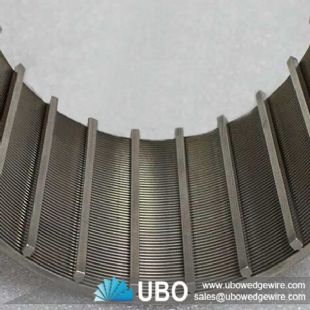

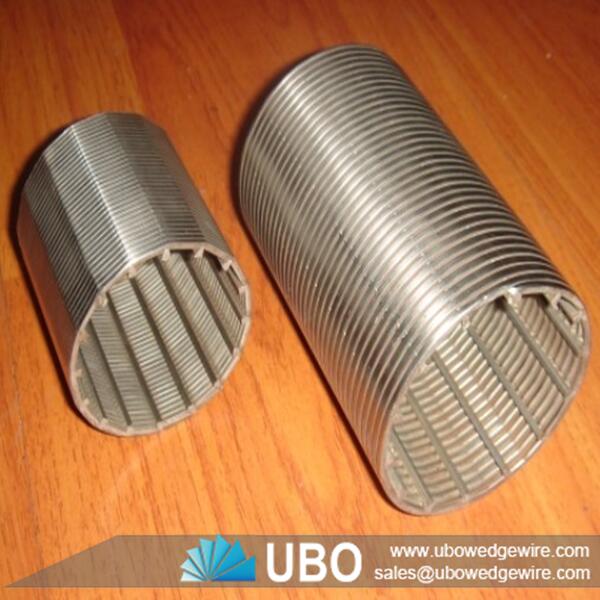

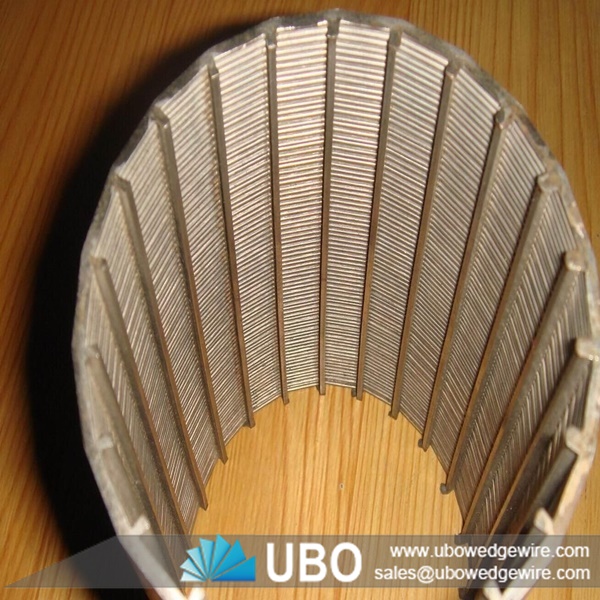

wedge wire screen tube for industry

More Views

wedge wire screen tube for industrywedge wire screen tube for industrywedge wire screen tube for industry

wedge wire screen tube for industry

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration,food filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen tube for industry

wedge wire screen tubes are made in panel or cylinder type from V shaped wedge wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

wedge wire screen tubes are available for both externally-fed (flow from outside to inside) and internally feed applications. wedge wire screen tube can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated.

Features of wedge wire screen tube for industry

-- Self Supporting;

-- High Abrasion resistance;

-- Low pressure drop;

-- High resistance to Vibration.

Applications of wedge wire screen tube for industry

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

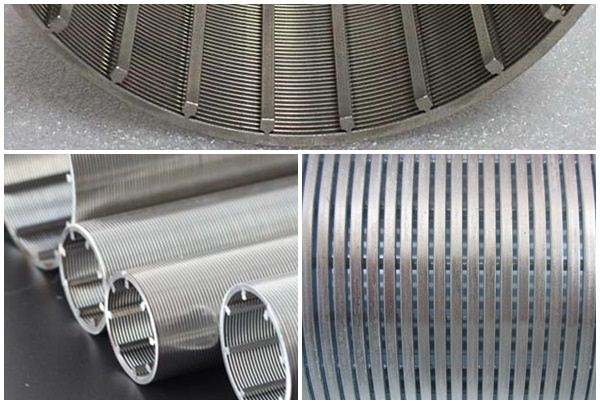

         wedge wire screen tube for industry

Specifications of wedge wire screen tube for industry:

PIPE BASE
SCREEN
Size
(mm)
Outside
diameter
(mm)
Inside
diameter
(mm)
Weight
lbs/ft
Number of
holes/m
Holes
diameter
(mm)
Outer
screen
O.D
(mm)
Annulus
(mm)
Inner
screen
I.D.
2 3/8 60 50.6 4.6 314 10 86 6 64
2 7/8 73 62 6.4 354 10 100 6 77
3 1/2 89 76 9.2 354 12 106 6 93
4 102 90 9.5 394 12 129 6 106
4 1/2 114 102 11.5 472 12 140 6 118
5 127 114 13 512 12 154 6 131
5 1/2 140 126 15.5 552 12 167 6 144
6 5/8 168 150 24 590 12 195 6 172

wedge wire screen tube for industry

Packaging and Transportation of wedge wire screen tube for industry:

packing
