Quality Wedge Wire Screen Manufacturer in China

wedge wire screen pipe for industry

More Views

wedge wire screen pipe for industrywedge wire screen pipe for industrywedge wire screen pipe for industry

wedge wire screen pipe for industry

Category:Wedge Wire Application
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:Liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen pipe for industry

The wedge wire screen pipe is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

wedge wire screen pipe

Characteristics-wedge wire screen pipe for industry

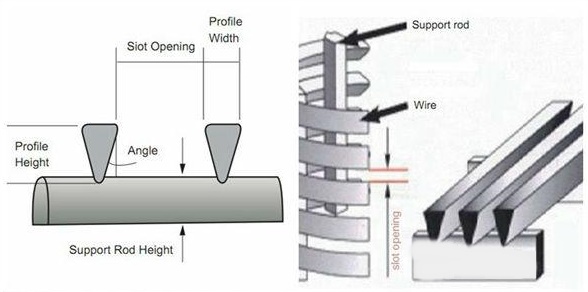

The Wedge Wire Screen is made up of rods and warp.

The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire).

Wedge Wire Screen have a structure and high open area, as well as accurate slot dimension.

At the same time, Wedge Wire Screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics.

It can be used in many kinds of medium filtering.

 Application- wedge wire screen pipe for industry

Wede Wire Screen is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and so on the organic solution recycling filters.

          wedge wire screen pipe for industry

Specifications of wedge wire screen pipe for industry:



Specification (wedge wire):



Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

wedge wire screen pipe

Packaging and Transportation of wedge wire screen pipe for industry:

Packing
