wedge v wire screen basket for mining

More Views

wedge v wire screen basket for miningwedge v wire screen basket for miningwedge v wire screen basket for mining

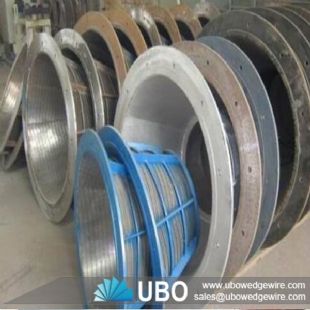

wedge v wire screen basket for mining

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:coal filtration, mining filteration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge v wire screen basket for mining

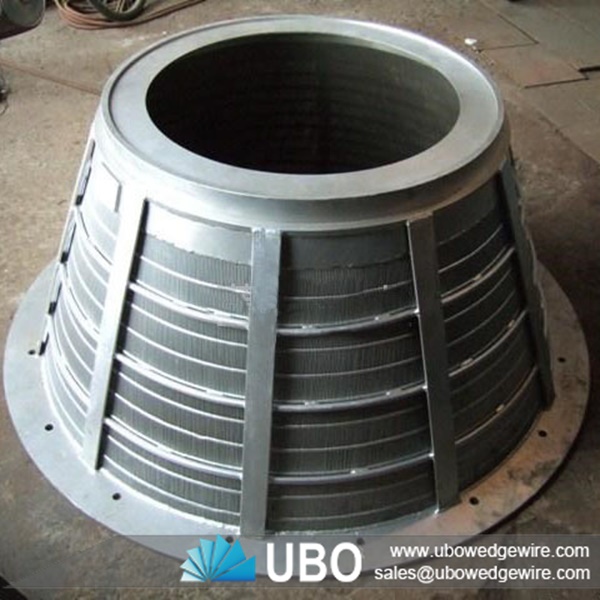

The wedge v wire screen basket is also manufactured from V-shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

wedge v wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.

Features of wedge v wire screen basket for mining

variety and full range of sizes meet the requirements of different coals type, different coals quality; size accurately, the error is small, fixed bolt hole does not appear the wrong eye, partial eye phenomena, to make installment saving time and effort ; welding quality is good, solid structure, does not appear screen welding open, cracking phenomena; uniform screen sewn, smooth screen surface, high opening rate.

Applications of wedge v wire screen basket for mining

wedge v wire screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge .It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.

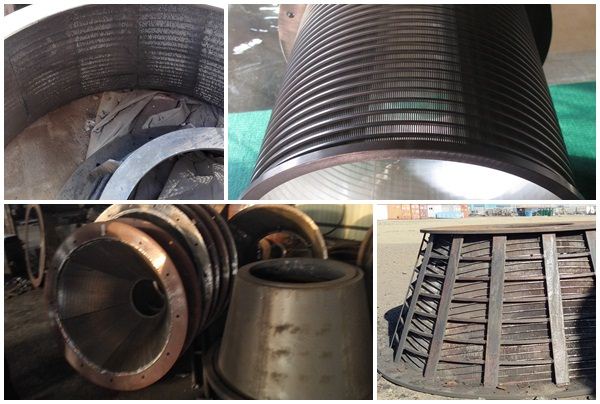

        wedge v wire screen basket for mining

Specifications of wedge v wire screen basket for mining:

Material: stainless steel

Type: screen basket

Profile wire: 1.5 mm 4 mm, 2.2 mm 3.5 mm, 2.2 mm 4.5 mm, 2.8 mm 5 mm, 3.1 mm 6 mm, 2.8 mm 6.5 mm, 3.4 mm 7.5 mm.

Support rod type: triangle wire, round rod, flat bar or wedge wire.

Model

Large edge diameter (mm)

Inside diameter (mm)

Half-cone angle (°)

Max height (mm)

Aperture (mm)

WZ-1300K

φ1312



13°

700

0.5

ZL-1000

φ1015



13°

554

0.5

----9

φ919



20°

475

0.5

H--1200



φ1200



450

0.3

H--800



φ800



400

0.3

H--800



φ320



90

0.3

H2--800



φ801



290

0.3

Packaging and Transportation of wedge v wire screen basket for mining:

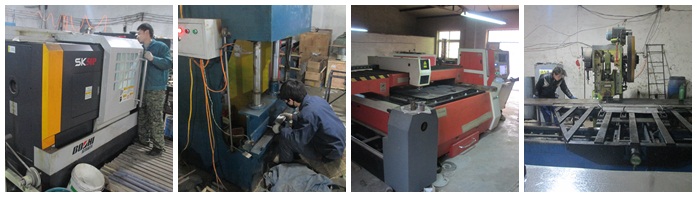

produce

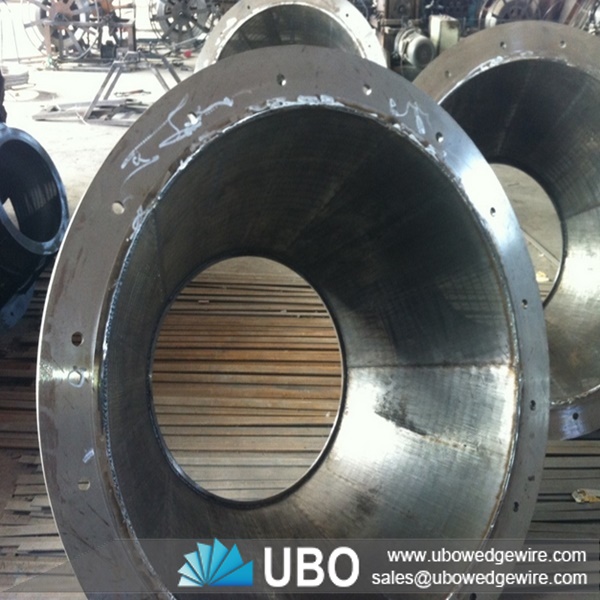

wedge v wire screen basket for mining
