water treatment stainless steel screen nozzle
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

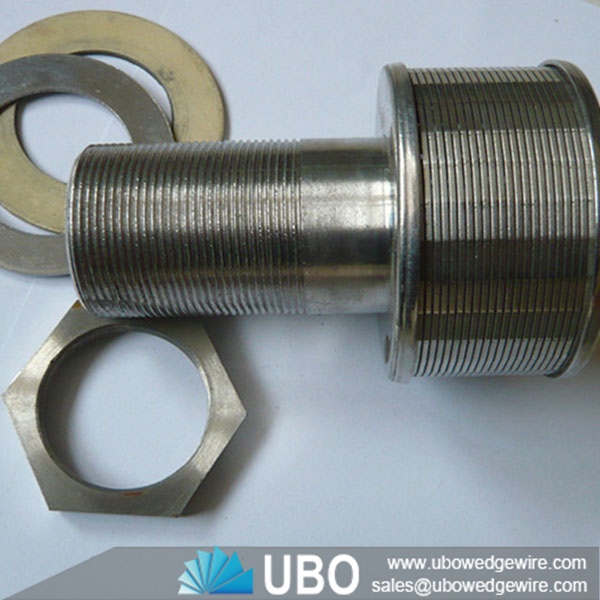

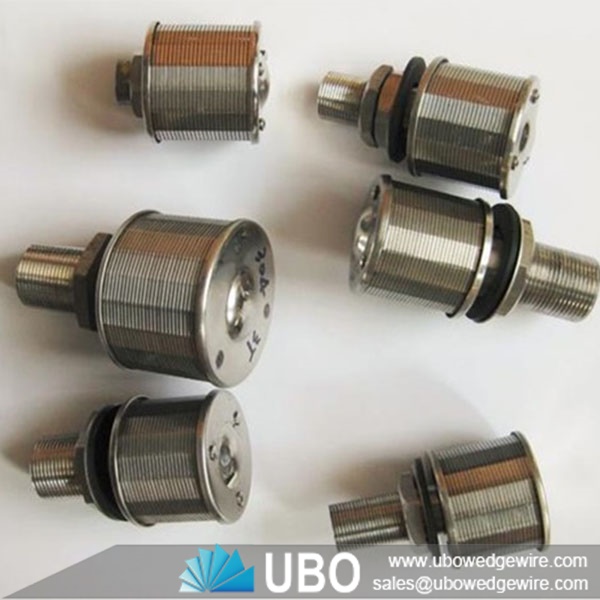

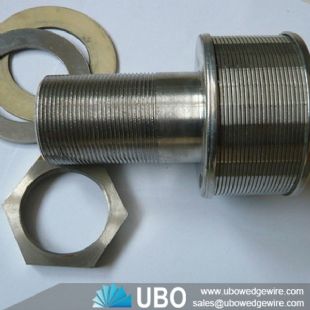

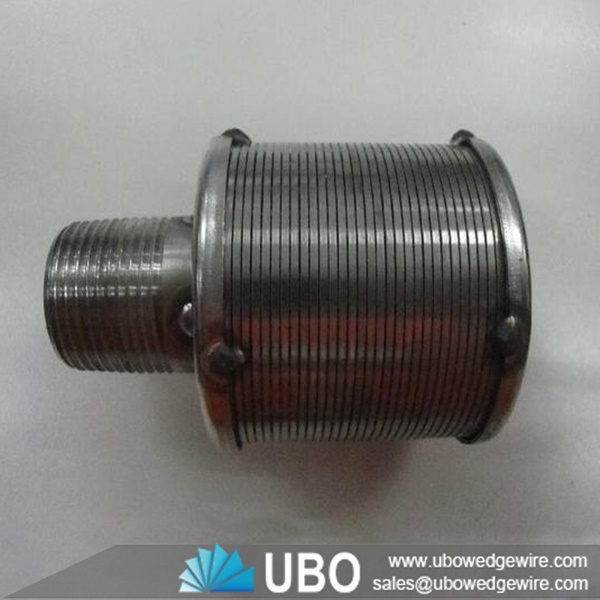

Details of water treatment stainless steel screen nozzle
UBO filter nozzles, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system.
UBO offers a reliable and efficient range of screen nozzle. Our offered products are extensively demanded by various industries and are manufactured in accordance with the industry set norms and guidelines. Post-production, we test each product on various stages to give our clients.
Advantages of water treatment stainless steel screen nozzle
1) Type 316L stainless steel construction.
2) Continuous slot design provide large circulation area
3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) Wedge wire screen is highly resistant to plugging.
6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Applicatuon of water treatment stainless steel screen nozzle
Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin, ....).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

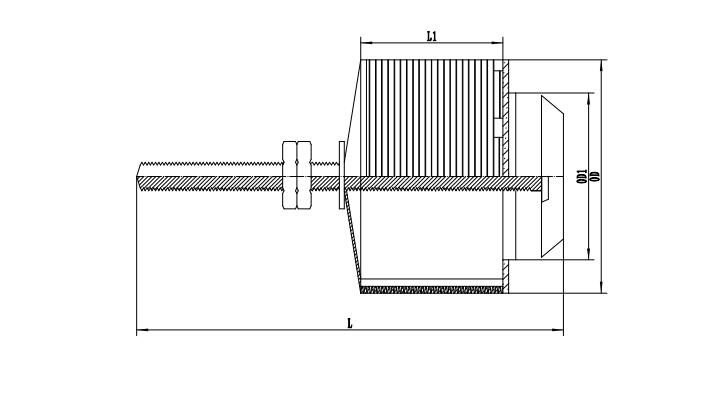

Specifications of water treatment stainless steel screen nozzle:
Catalogue Item |
Slots mm
|
Thread |
ΦAmm |
Thread length L1mm
|
Shaft L2 mm
|
L3 mm |
Type B |
0.05, 0.1, 0.2, 0.3 , 0.5, 1.0
|
1¼"WW |
32 |
25,30,45 |
80,110, 40,200, 250,300, 350,… |
45,50,55, 60,70,80 |
M30 |
30*3.5 |
30
|
||||
G 3/4" |
26.5 |
20,45,+5+5... |
||||
1"WW |
25.4
|
20,45,+5+5... |
||||
M24 |
24
|
20,45,+5+5... |
