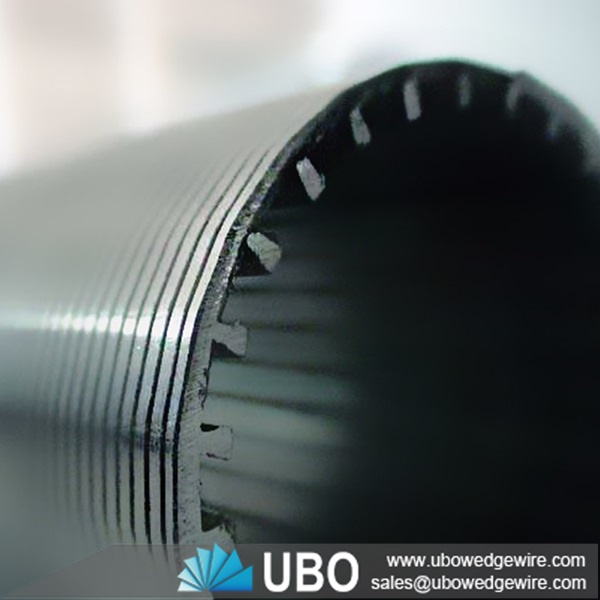

stainless steel johnson V welded screen tube for filtration screen

More Views

stainless steel johnson V welded screen tube for filtration screenstainless steel johnson V welded screen tube for filtration screenstainless steel johnson V welded screen tube for filtration screen

stainless steel johnson V welded screen tube for filtration screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel johnson V welded screen tube for filtration screen

Stainless steel 316 wire wrap V shaped screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

As we all know, the wire wrap V shaped screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire.

Applications for stainless steel johnon V welded screen tube for filtration screen:

This screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

Features for stainless steel johnon V welded screen tube for filtration screen:

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Advatangess for stainless steel johnon V welded screen tube for filtration screen:

1) Special continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

stainless steel johnon V welded screen tube for filtration screen

Specifications of stainless steel johnson V welded screen tube for filtration screen:

stainless steel johnon V welded screen tube for filtration screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of stainless steel johnson V welded screen tube for filtration screen:

stainless steel johnon V welded screen tube for filtration screen
