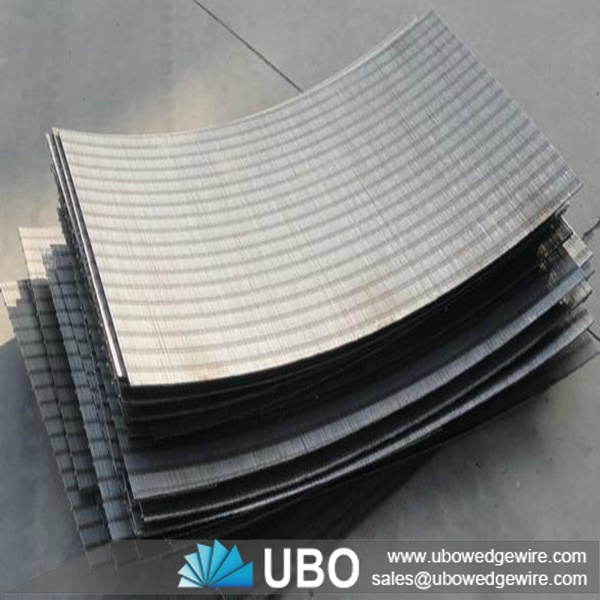

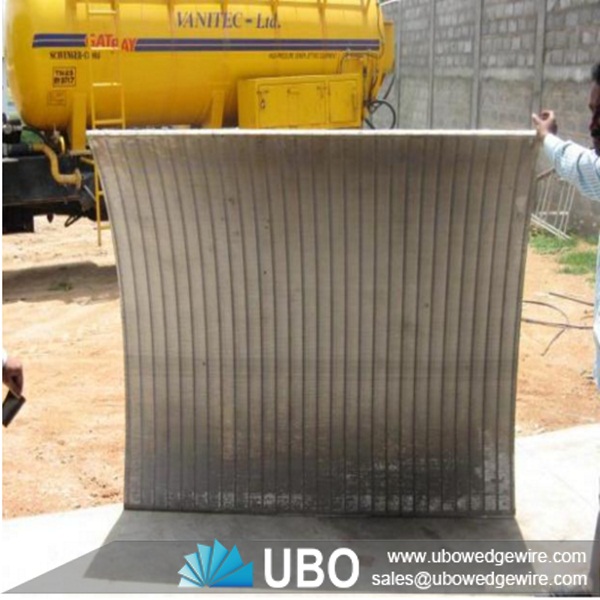

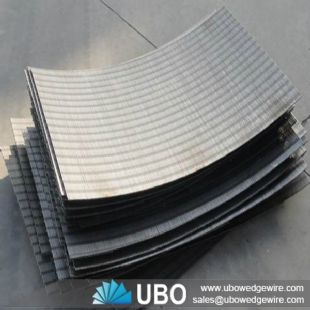

stainless steel coal curve screen panel

More Views

stainless steel coal curve screen panelstainless steel coal curve screen panelstainless steel coal curve screen panel

stainless steel coal curve screen panel

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel coal curve screen panel

Stainless steel coal curve screen panel is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface, sieve box, feeding device and outlet. The screen surface is the key component. It is made of stainless steel shape screen. When operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly dispersed,and the entire screen surface get essential self-cleaning. The material on the sieve discharged from the taphole,The material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening process in starch industry.

stainless steel coal curve screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Advantages of stainless steel coal curve screen panel

1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Application of stainless steel coal curve screen panel

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

stainless steel coal curve screen panel

Specifications of stainless steel coal curve screen panel:

stainless steel coal curve screen panel

stainless steel coal curve screen panel

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Radian:

15º,30º,45º as your request

Packaging and Transportation of stainless steel coal curve screen panel:

transportation
